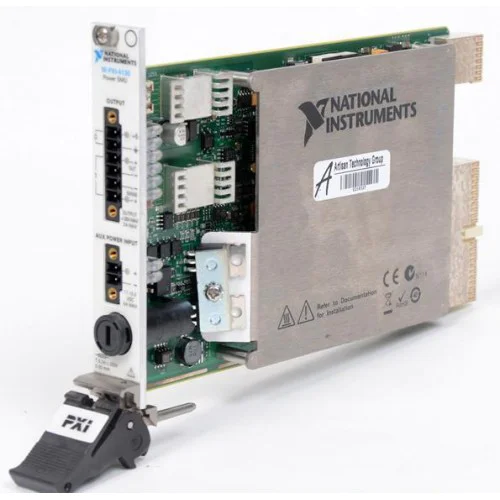

The NI PXI-4130 combines an isolated four-quadrant SMU channel with a separate utility output. Channel 1 supports up to ±20 V at 2 A when used with the APS-4100 auxiliary power supply.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-4130 supports programmable source-and-measure operations through NI-DCPower. Voltage or current updates can be combined with measurements in software-controlled loops for device testing and characterization.
Power configuration matters: operation without auxiliary power restricts channel 1 to a 2 W/300 mA operating envelope. Select the power arrangement before evaluating the required voltage-current operating points.
Verified product specifications.
| Channel 1 current ranges | 200 μA, 2 mA, 20 mA, 200 mA, 2 A |
|---|---|
| Channel 1 source power with auxiliary power | 40 in quadrants I and III W |
| Channel 1 continuous sinking power | 10; derated above 30 °C W |
| Current measurement resolution | 1 on 200 μA range nA |
| Minimum programmable current level/limit | 2% of selected range |
| Maximum measurement rate | 3, nominal; Samples to Average = 1 kS/s |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Module platform
Source measure unit
NI-DCPower
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI states that PXI-4130 sequences and sweeps must be performed and timed by software. Output settling and measurement averaging affect the achievable source-measure loop rate.
NI documents series and parallel configurations for channel 1 using APS-4100 auxiliary supplies. Follow the documented wiring, isolation limits, and stability checks; parallel voltage-mode operation requires particular care to prevent one SMU from sinking another's output.
