National Instruments · PXI

PXI-2800

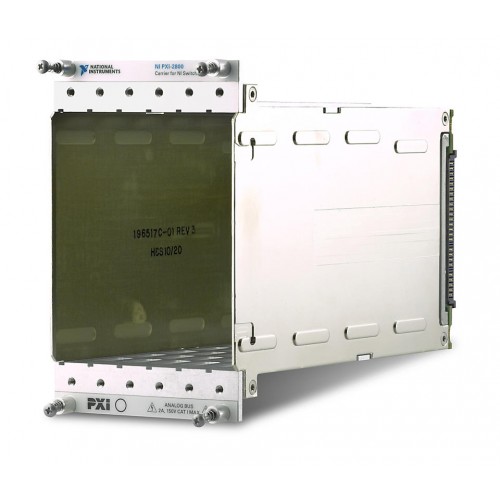

The NI PXI-2800 is a SwitchBlock carrier that accommodates up to six relay cards while occupying four PXI slots. Its integrated analog bus connects installed cards to build larger switching matrices.

ManufacturerNational Instruments

ModelPXI-2800

Part Number781420-00

Product TypePXI Carrier Module for SwitchBlock

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2800

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Chassis footprintFour PXI slots

Card capacityUp to six SwitchBlock relay cards

InterconnectionIntegrated analog bus

Operating roleCarrier only; requires SwitchBlock modules to perform switching

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2800 provides the carrier infrastructure for a modular NI SwitchBlock matrix. Relay cards install into the carrier, and the shared analog bus provides connections between cards rather than requiring every inter-card connection to be externally wired.

Side expansion connectors support linking additional carriers using NI 2806 expansion bridges. The carrier is not a standalone switch: system planning must account for the selected SwitchBlock cards and the required chassis slot arrangement.

Hosts up to six SwitchBlock relay cards in a four-slot PXI footprint.
Integrated analog bus supports matrix connections across installed relay cards.
Left- and right-side expansion connectors allow inter-carrier bus expansion with NI 2806 bridges.
Six virtual device engines provide timing and synchronization resources.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	781420-00
PXI slot occupancy	4 slots
Maximum relay-card capacity	6 cards
Virtual device engines	6

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Chassis platform

PXI-2800

Carrier for SwitchBlock relay cards

Expansion accessory

NI 2806 expansion bridge for linking carriers; not required for every installation.

Requires SwitchBlock relay cards. Check card slot usage and chassis connector placement before configuring the system.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-2800 Official Product PageProduct Page · ni.com

Open →

NI SwitchBlock Getting Started GuideGetting-started Guide · download.ni.com

Open →

SwitchBlock Modules: Switches Cable and Accessory CompatibilityCompatibility Guide · ni.com

Open →

NI SwitchBlock Hardware ArchitectureTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-2800 perform switching without relay cards?

No. It is a carrier, not a standalone switch, and requires SwitchBlock modules to perform switching.

Can the PXI-2800 be installed in a PXI Express chassis?

NI's getting-started guide permits installation in an NI PXI Express chassis with suitable hybrid slots, provided the carrier's back connector connects to a PXI peripheral slot. Verify the chassis slot layout rather than assuming every PXI Express slot is suitable.

Is an NI 2806 expansion bridge required?

Not for every installation. The NI 2806 is an optional accessory used to expand connections between SwitchBlock carriers.
