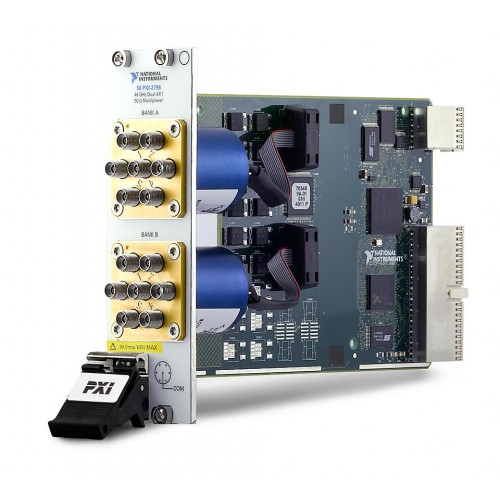

NI (National Instruments) PXI-2796 40 GHz, 50 Ω, Dual 6x1 (SP6T) PXI RF Multiplexer Switch Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXI-2796

The NI PXI-2796 is a 40 GHz, 50 Ω dual 6x1 (SP6T) electromechanical PXI RF multiplexer switch module. Its listed NI part number is 782356-01.

ManufacturerNI (National Instruments)
ModelPXI-2796
Part Number782356-01
Product Type40 GHz, 50 Ω, Dual 6x1 (SP6T) PXI RF Multiplexer Switch Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2796

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPXI Hybrid
Maximum Switching Voltage AC30 V
Relay TypeElectromechanical
Switch Bandwidth40 GHz
Characteristic Impedence50 Ohm
Max Insertion Loss1.1 dB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-2796 provides two 6x1 SP6T multiplexer banks in a PXI RF switch module. It belongs to NI's RF and microwave switch family and uses electromechanical relays.

The module has a 40 GHz switch bandwidth and 50 Ω characteristic impedance. It is unterminated, with a listed scan rate of 5 cycles/s. Review the NI specifications for operating limits before integrating it into a signal path.

  • Dual 6x1 (SP6T) multiplexer configuration with two banks.
  • 40 GHz switch bandwidth and 50 Ω characteristic impedance.
  • Electromechanical switching with unterminated signal paths.
  • Maximum switching voltage of 30 V AC and 30 V DC.
  • PXI platform module with a listed PXI Hybrid bus connection.
  • Listed scan rate of 5 cycles/s.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPXI Hybrid
Maximum Switching Voltage AC30 V
Relay TypeElectromechanical
Switch Bandwidth40 GHz
Characteristic Impedence50 Ohm
Max Insertion Loss1.1 dB
Number of Channels6
Number of Banks2
TerminationNo
Supported Hardware PlatformPXI
Maximum Carry Current AC0.6 A
Maximum Switching Current DC0.6 A
Maximum Switching Voltage DC30 V
Mode (n-wire)1-wire
Number of Columns1
Number of Rows6
Row AccessYes
Scan Rate5 cycles/s
NI part numbers782356-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-2796

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXI-2796?

The listed NI part number is 782356-01.

What switch topology does the PXI-2796 provide?

The module provides two 6x1 SP6T multiplexer banks using electromechanical relays.

What are the PXI-2796 bandwidth and impedance?

The listed switch bandwidth is 40 GHz, and the characteristic impedance is 50 Ω.

Is the PXI-2796 terminated?

No. The PXI-2796 is listed as unterminated.

What is the PXI-2796 scan rate?

The listed scan rate is 5 cycles/s.
