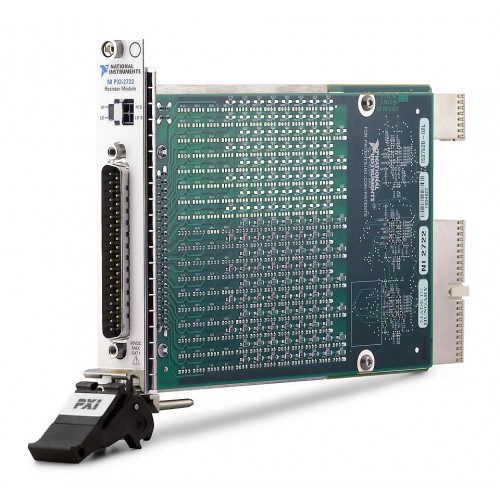

The NI PXI-2722 is a 16-bit, 5-channel programmable resistor module for PXI systems. It provides resistance programming in 0.25 Ω steps.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Part of the NI 272x programmable resistor family, the PXI-2722 provides software-controlled resistance for resistance-based input simulation. NI describes this family for hardware-in-the-loop validation and production resistance testing.
Programmed resistance steps are not the same as terminal resistance accuracy. Relay contacts and trace resistance contribute to channel resistance; NI specifies a typical minimum resistance of 2 Ω.
Verified product specifications.
| Number of channels | 5 |
|---|---|
| Resistance range per channel | 0.25–16,320 Ω |
| Resistance resolution | 0.25 Ω |
| Typical minimum resistance | 2 Ω |
| Maximum current per channel | 0.3 A |
| Maximum power per channel | 0.25 W |
| Maximum channel-to-channel and channel-to-ground voltage | 60 VDC or 30 VAC rms, CAT I |
| Front-panel connector | 37-pin D-SUB |
| DMM port | 2 × 2 Micro-Fit connector |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Module platform
Programmable resistor module
NI-272x Reference VIs for LabVIEW
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. Resolution describes programming steps. NI notes that relay contact resistance, trace resistance, and temperature affect channel accuracy, and specifies a typical minimum resistance of 2 Ω.
The PXI-2722 provides five 16-bit channels, while the PXI-2720 provides ten 8-bit channels. NI lists their nominal per-channel ranges as 0–16 kΩ and 0–255 Ω, respectively.
NI provides NI-272x Reference VIs for LabVIEW, including utilities that convert requested resistance or temperature into relay-control lists. Check the selected download's software and operating-system requirements.
