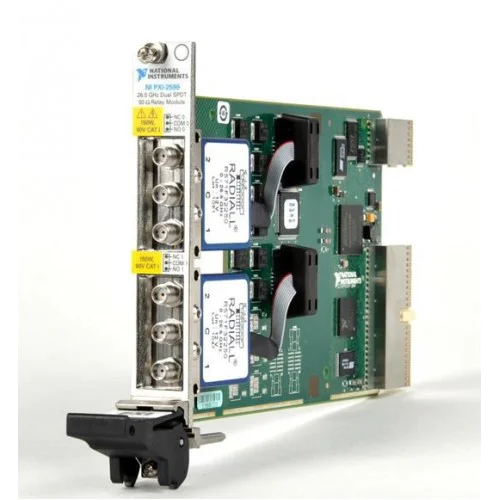

The National Instruments PXI-2599 is a 26.5 GHz, 50 Ω dual SPDT RF relay module for automated RF and microwave signal routing.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-2599 provides two single-pole double-throw relay paths for selecting signal routes or inserting and removing components from a signal path. NI also identifies upconverter harmonic routing and routing multiple sources to RF downconverters as applications.
NI-SWITCH documents the module's 2-SPDT topology and supports immediate and scanning operation. Onboard relay count tracking helps monitor relay usage.
Verified product specifications.
| Maximum signal frequency | 26.5 GHz |
|---|---|
| Topology | 2-SPDT |
| Characteristic impedance | 50 nominal Ω |
| Insertion loss at frequencies ≤26.5 GHz | <0.7"},{"evidence_ids":["EV-BULK-5376-1CACD8B93B"],"label":"VSWR at frequencies ≤26.5 GHz","status":"VERIFIED","unit":"—","value":"55 dB |
| RF carry power at frequencies ≤26.5 GHz | 25 W |
| Maximum voltage, cold-switching only | 90; CAT I Vrms |
| Maximum carry current per channel | 1.73 Arms |
| Relay operate/release time | 10 ms |
| I/O connectors | 6 SMA jacks |
