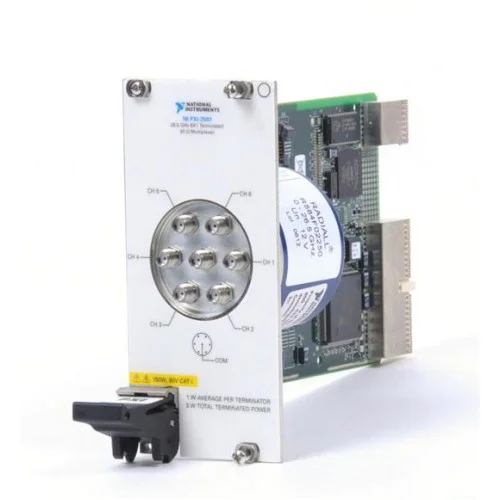

National Instruments PXI-2597 product image 1
National Instruments PXI-2597 product image 1 additional viewNational Instruments PXI-2597 product image 1 additional viewNational Instruments PXI-2597 product image 1 additional view
4 images: additional views below.Click to enlarge
National Instruments · PXI

PXI-2597

The NI PXI-2597 is a 26.5 GHz, 50 Ω terminated 6x1 (SP6T) RF multiplexer for PXI systems. Internal termination helps limit reflections from open channels.

ManufacturerNational Instruments
ModelPXI-2597
Part Number778572-97
Product TypeTerminated RF multiplexer switch module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2597

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Topology6x1 (SP6T), terminated
Bandwidth26.5 GHz
Impedance50 Ω nominal
ConnectionsSeven SMA jacks
Form factor3U, three-slot PXI/cPCI module
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-2597 routes RF and microwave signals through a terminated multiplexer topology. NI identifies passing high-order harmonics from PXI RF upconverters and routing multiple sources to PXI RF downconverters as relevant uses.

Onboard relay count tracking supports relay-life assessment and maintenance planning.

  • Internal termination helps prevent reflections associated with open channels.
  • Onboard relay count tracking.
  • Electromechanical, non-latching relays.
Verified specifications

Technical data

Verified product specifications.

Switch topologyTerminated 6x1 (SP6T)
Bandwidth26.5 GHz
Characteristic impedance50 nominal Ω
Insertion loss at frequencies ≤26.5 GHz<0.7"},{"evidence_ids":["EV-BULK-5377-60A33E4C57"],"label":"VSWR at frequencies ≤26.5 GHz","status":"VERIFIED","unit":"—","value":"55 dB
Average termination power at 25 °C1 W per channel; 3 W total
RF carry power at frequencies ≤26.5 GHz25 W
Relay operate/release time15; additional settling time may be required ms
Recommended cycle speed5 channels/s
I/O connectors7 SMA jacks
Module size3U, three-slot PXI/cPCI
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-2597

Terminated RF multiplexer

Driver evidence

NI-SWITCH 21.3 lists PXI-2597 among supported RF multiplexer modules.

Reserve three slots and check termination-power limits. NI recommends against switching active RF signals.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-2597 SpecificationsSpecifications · ni.com
Open →
PXI-2597 OverviewUser Manual · ni.com
Open →
NI-SWITCH 21.3 ReadmeTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the PXI-2597 switch active RF signals?

NI recommends against it: relay actuation momentarily leaves the channel unterminated, which can expose some RF sources to damaging reflections.

Can one PXI-2597 route a differential signal?

Its 1-wire multiplexer topology is for single-ended switching, not a differential pair.

Which manufacturer part number identifies this model?

NI lists part number 778572-97 for the PXI-2597.
