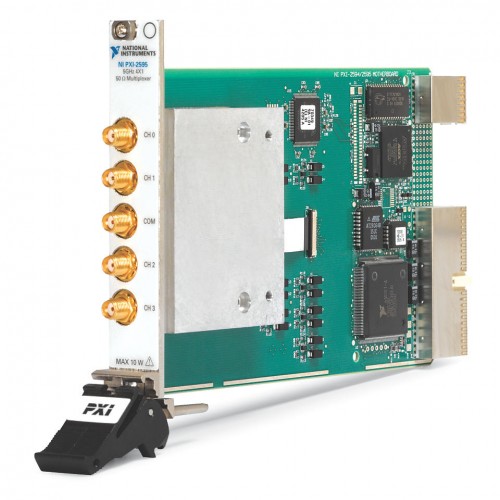

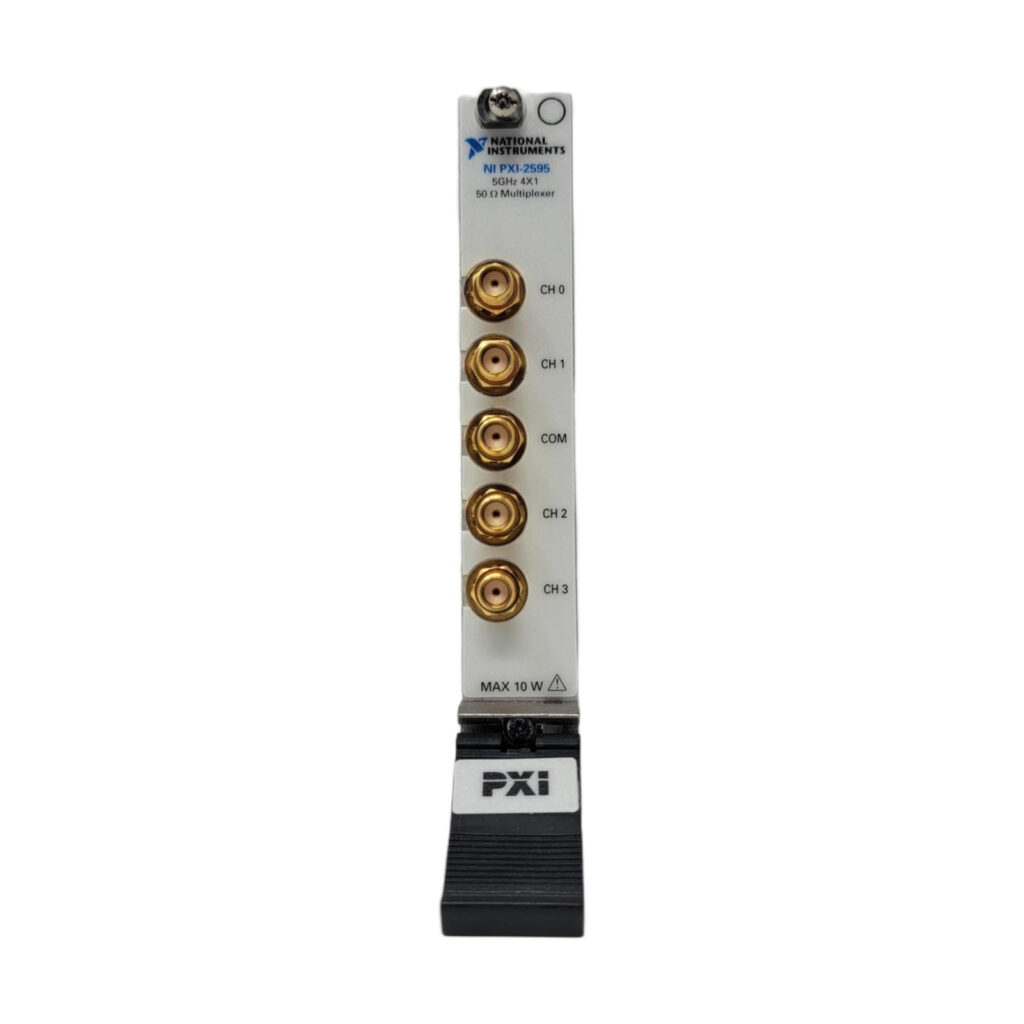

National Instruments PXI-2595 product image 1

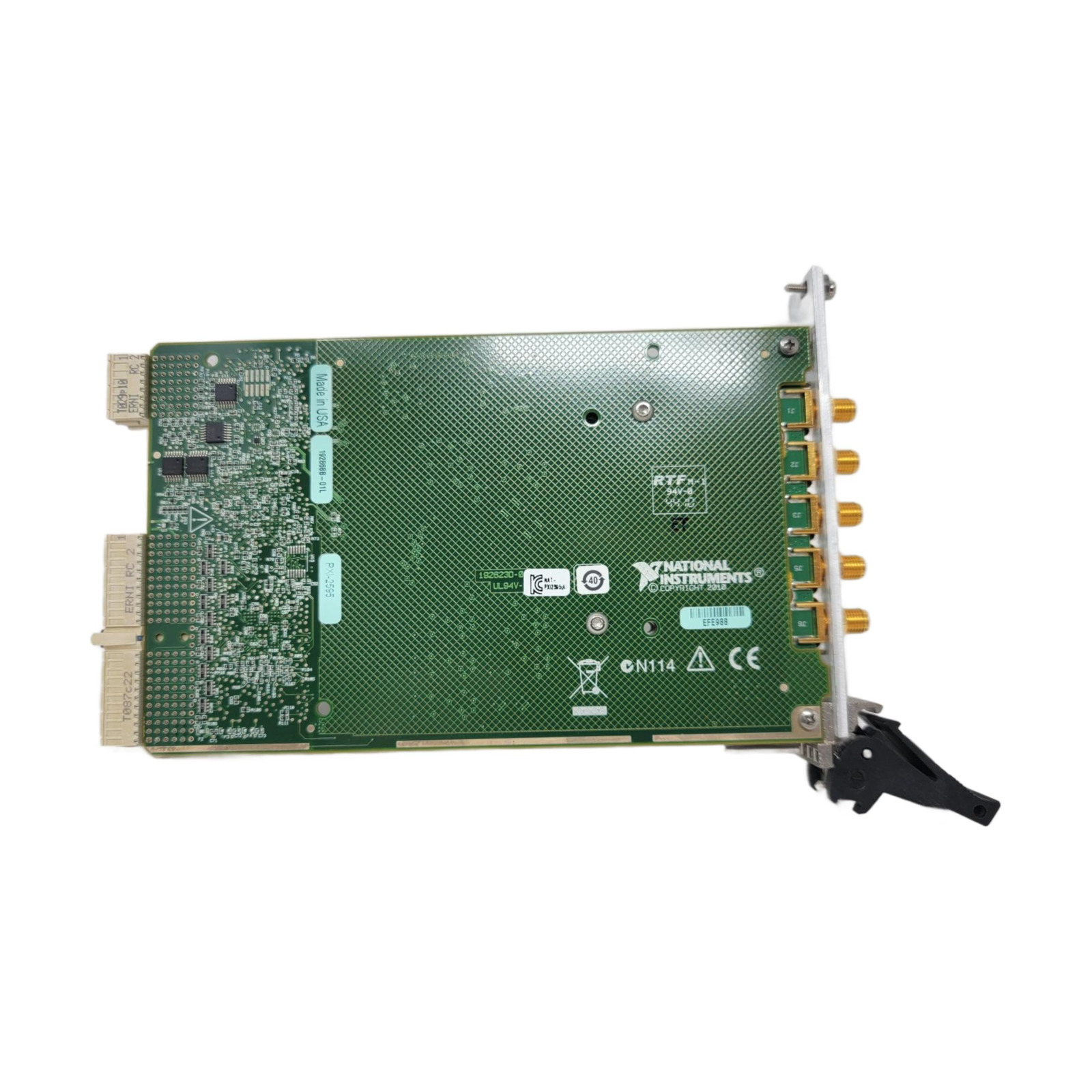

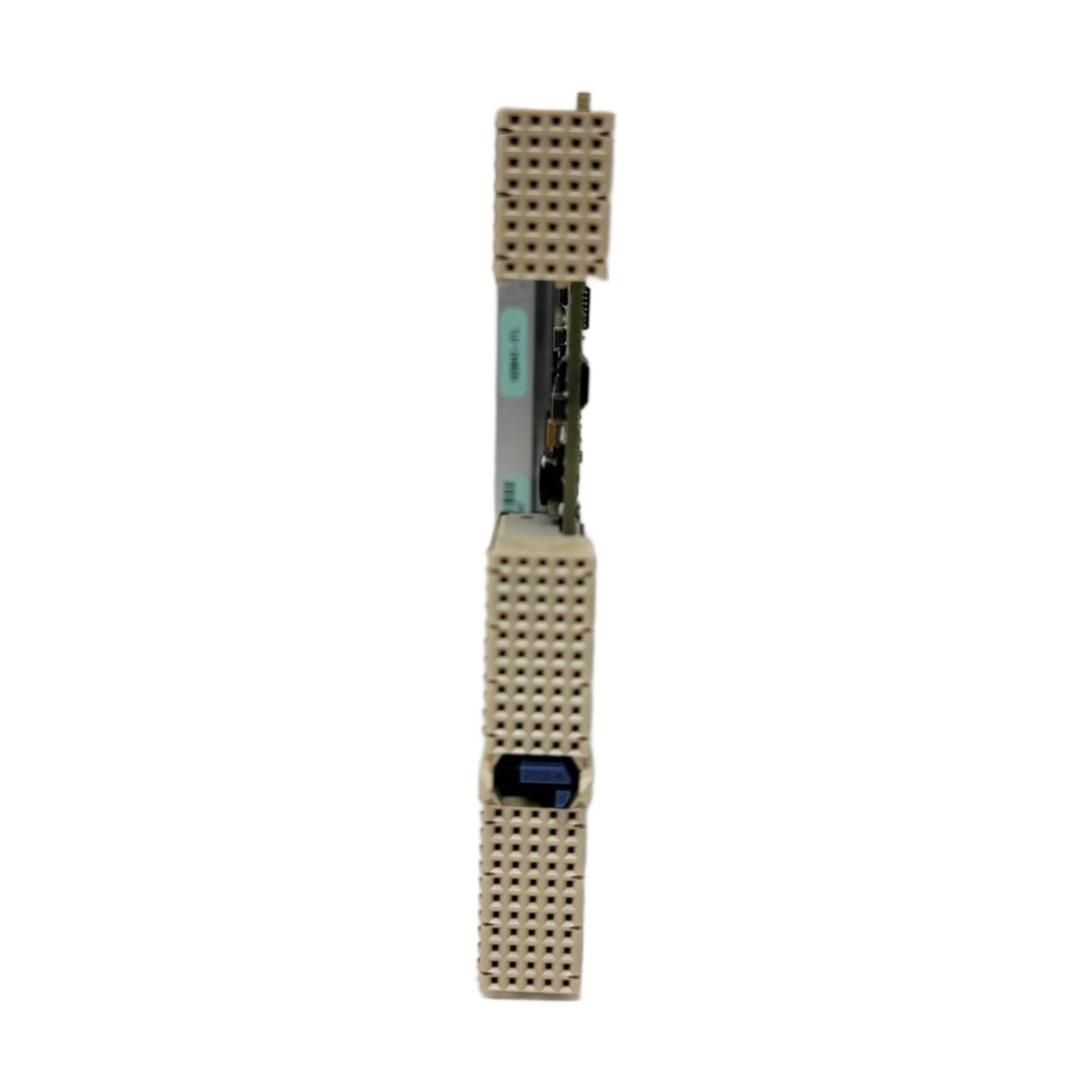

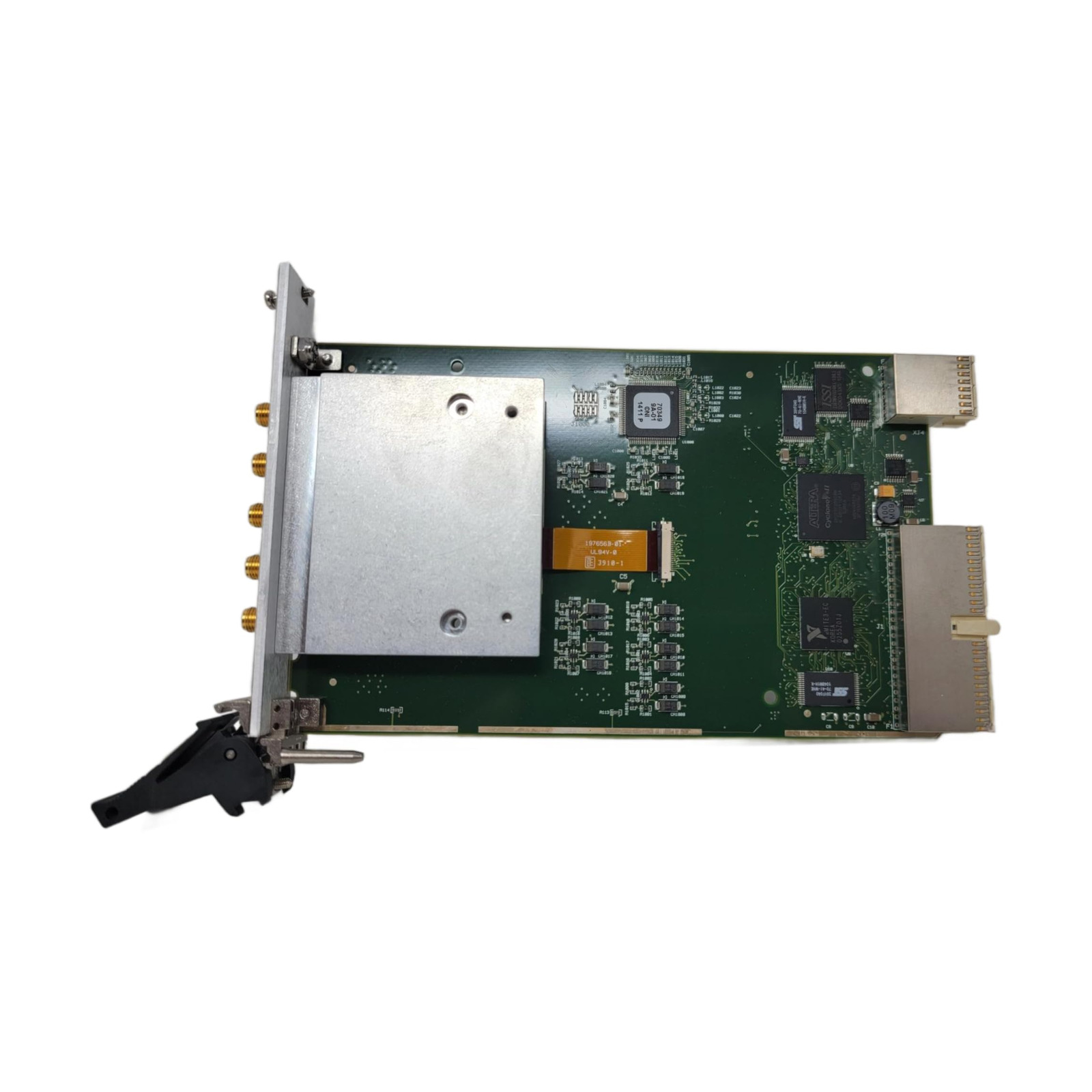

National Instruments PXI-2595 product image 1 additional view

4 images: additional views below.Click to enlarge

National Instruments · PXI

PXI-2595

The NI PXI-2595 is a 5 GHz, 50 ohm RF multiplexer with a 4x1 topology for PXI systems.

ManufacturerNational Instruments

ModelPXI-2595

Product TypeRF multiplexer switch module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2595

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Topology4x1 multiplexer

RF bandwidth5 GHz

Impedance50 ohm nominal

Connections5 SMA jacks

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Within the NI switching ecosystem, the PXI-2595 provides RF routing through a 4x1 multiplexer. NI-SWITCH documents both immediate and scanning operation for this model.

Handles RF signals up to 5 GHz.
Supports immediate and scanning operation in NI-SWITCH.
Uses latching electromechanical relays.

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-2595

RF multiplexer

Software topology

2595/4x1 Mux (NISWITCH_TOPOLOGY_2595_4X1_MUX)

NI advises against switching active RF signals because relay transitions momentarily leave the channel unterminated.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-2595 SpecificationsSpecifications PDF · download.ni.com

Open →

NI-SWITCH: NI PXI-2594/2595User Manual Section · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does NI-SWITCH support scanning with the PXI-2595?

Yes. NI lists immediate and scanning operation for the 2595/4x1 Mux topology.

Is 1.7 dB the insertion-loss limit across the full bandwidth?

No. NI specifies less than 1.7 dB through 3 GHz and less than 2.8 dB through 5 GHz.
