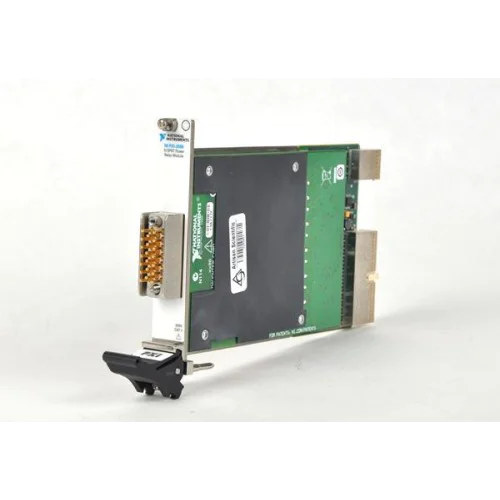

National Instruments PXI-2586 product image 1

National Instruments PXI-2586 product image 1 additional view

8 images: additional views below.Click to enlarge

National Instruments · PXI

PXI-2586

The National Instruments PXI-2586 is a general-purpose power switch with 10 independent SPST (Form A) relays. It supports power-signal and load switching for control, battery, power supply and automotive testing.

ManufacturerNational Instruments

ModelPXI-2586

Product TypeGeneral-purpose power relay module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2586

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Relay arrangement10 independent SPST (Form A) relays

Current12 A switching/carry at ambient temperatures up to 45 °C; load derating applies

Switching voltage300 V maximum

Form factor3U, single-slot PXI/cPCI

Signal connectorGMCT20

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2586 provides independent relay paths for switching power signals and loads. NI also documents externally wired fault-insertion configurations for this module.

Select operating points using NI's DC switching-power curve and temperature and aggregate-load derating limits. The maximum voltage and current ratings are not an unrestricted simultaneous operating point.

Independent SPST (Form A) relay paths.
Supports 10-SPST and 5-DPST topologies.
Field-replaceable electromechanical relays.
Input and output triggering through PXI trigger lines 0–7.

Verified specifications

Technical data

Verified product specifications.

Topologies	10-SPST; 5-DPST
Maximum switching voltage	300, DC or ACrms V
Channel-to-ground rating	300 V, CAT II
Maximum switching or carry current	12 per channel or common at ambient temperature ≤45 °C; derating applies A
Simultaneous channels at maximum current	2 channels
Maximum AC switching power per channel	3, up to 60 Hz kVA
Maximum relay operate time	15.4 ms
I/O connector	20-position Positronic GMCT series plug
Operating temperature	0–55; current derating above 45 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-2586

Power relay switching module

Driver evidence

NI-SWITCH 19.5 lists PXI-2586 among supported PXI relay modules.

Observe DC switching-power and load derating limits; verify driver and operating-system support for the intended installation.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-2586 SpecificationsSpecifications And Pinout · download.ni.com

Open →

PXI-2586 Dimensional DrawingsDimensional Drawings · ni.com

Open →

NI-SWITCH 19.5 ReadmeDriver Support Reference · ni.com

Open →

Creating a Fault Insertion Unit with NI Switch/Relay ModulesTechnical resource

Open →

General Purpose Relay Cable and Accessory CompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PXI-2586 a relay module or a multiplexer?

NI identifies it as a general-purpose switch with 10 independent SPST (Form A) relays, rather than a dedicated multiplexer.

Can the PXI-2586 be used for fault insertion?

Yes. NI documents externally wired configurations including a three-channel fault-insertion unit with two fault buses using one PXI-2586. These configurations require external connections between channel and COM pins.

Where are the relay names for software control documented?

NI directs users to NI Switches Help under Devices, the device model, and Hardware Diagram for relay names used with NI-SWITCH relay-control functions.
