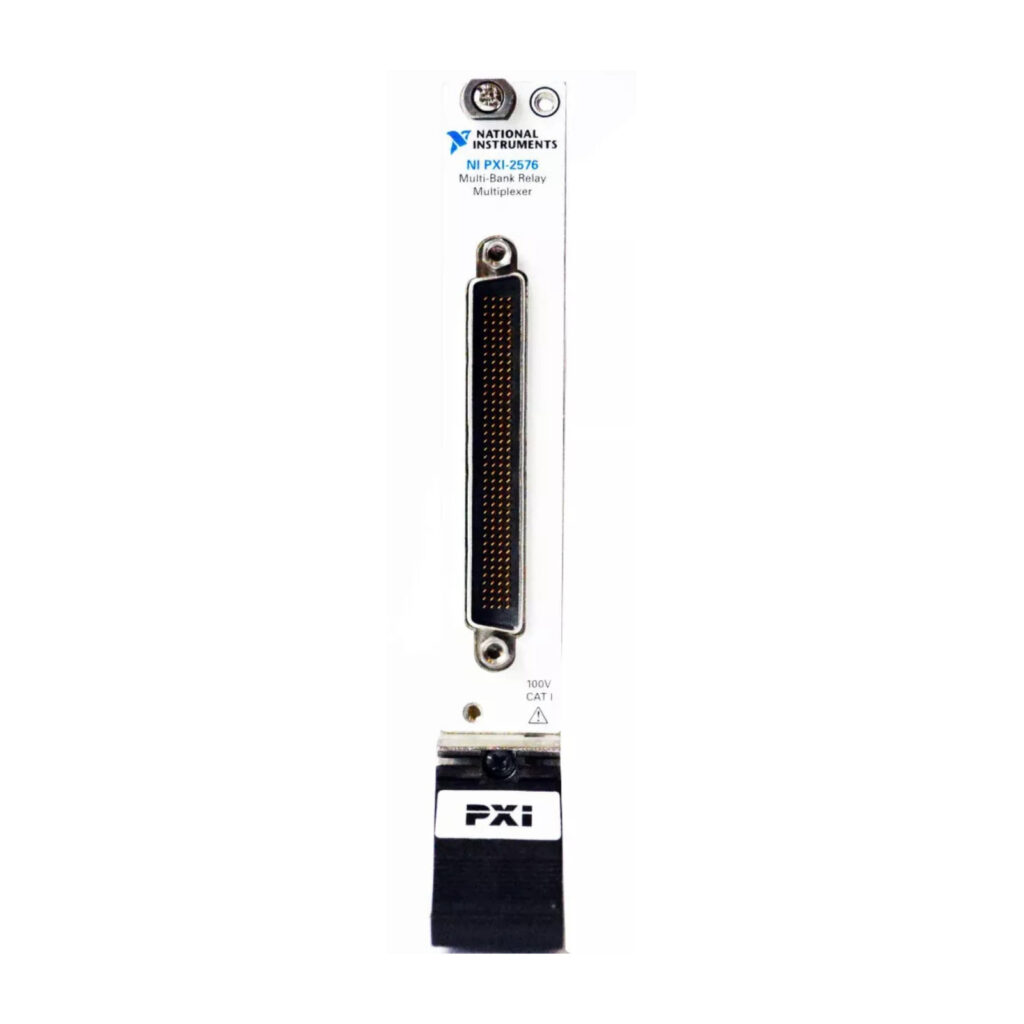

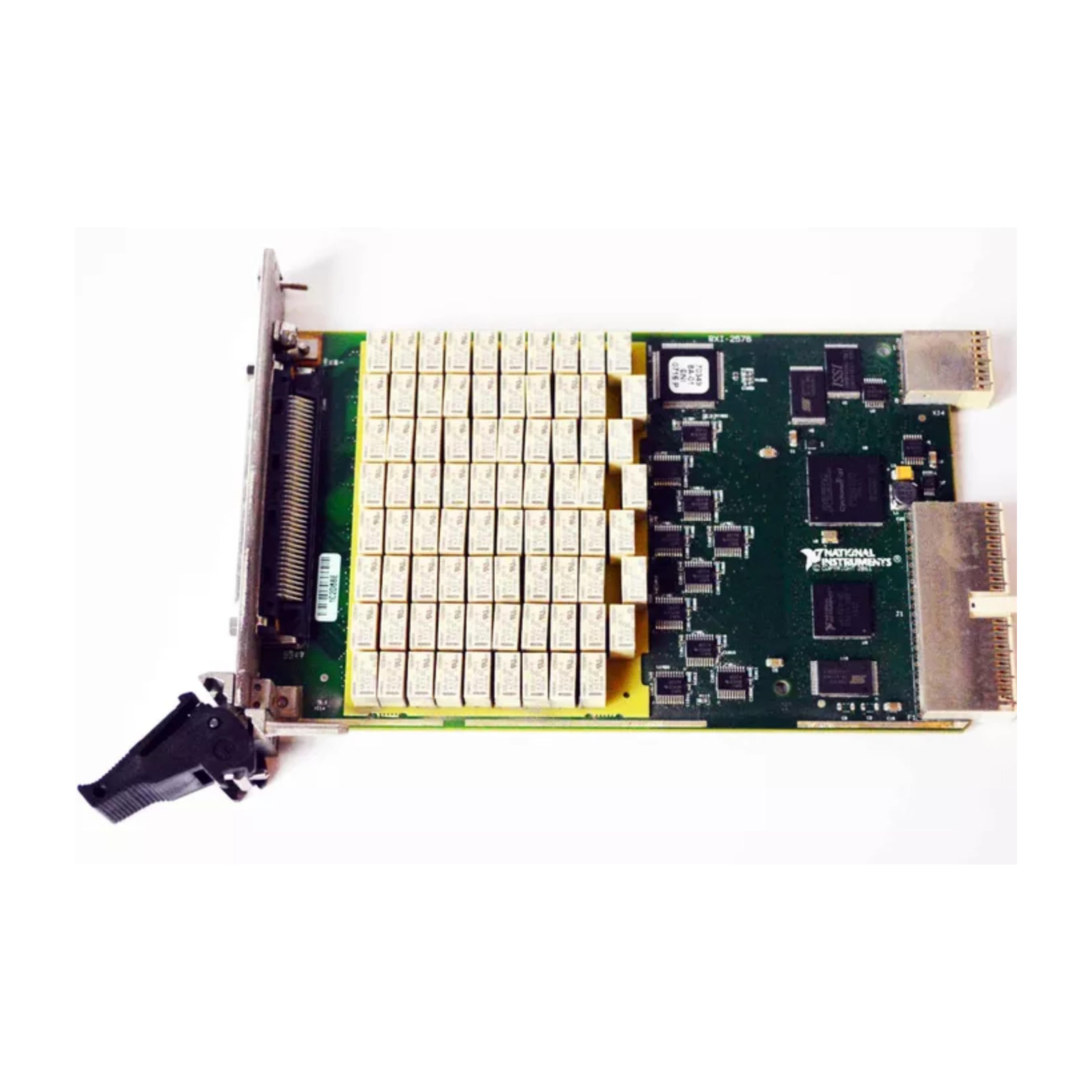

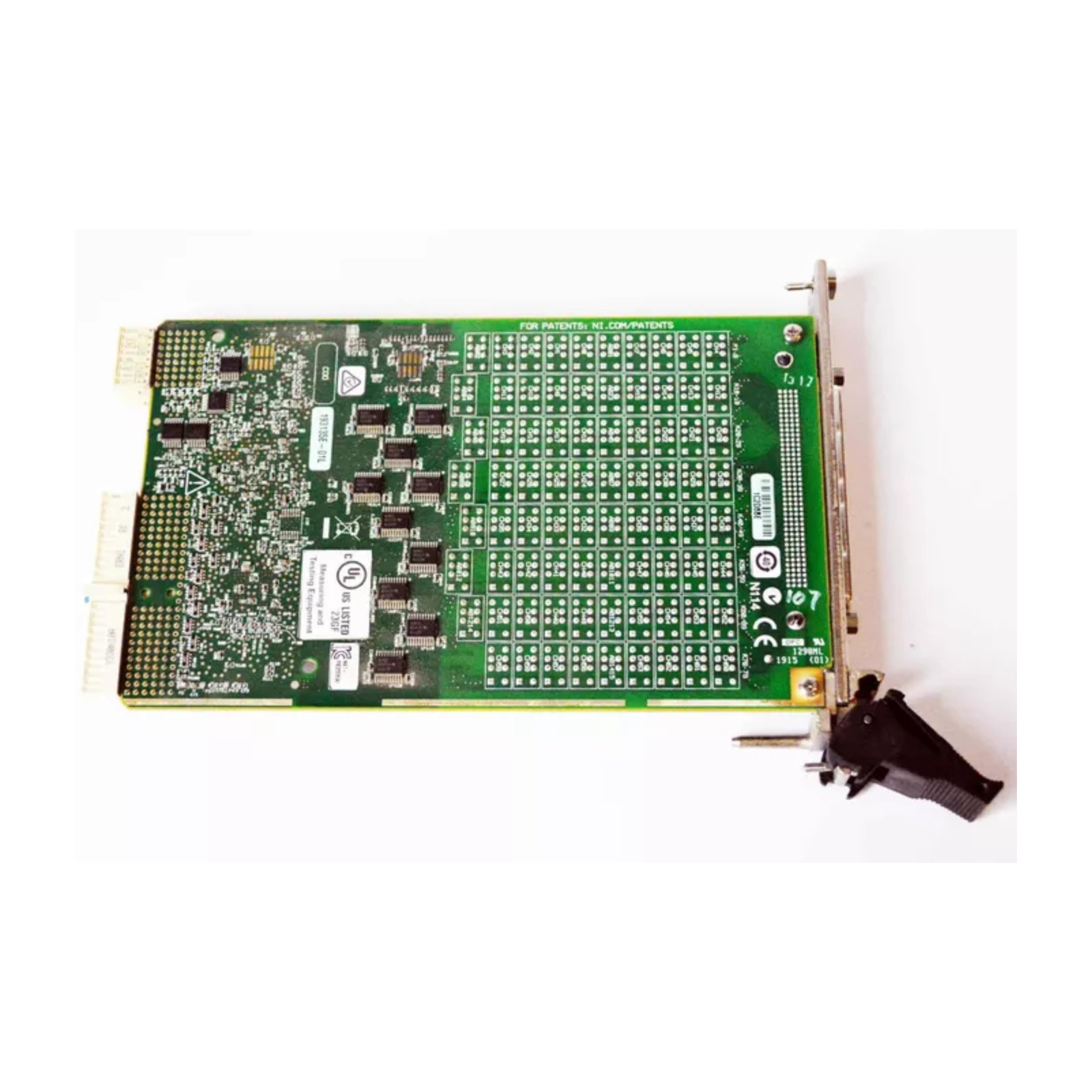

PXI-2576

The NI PXI-2576, part number 778572-76, is a 64-channel, 2-wire multibank PXI multiplexer switch module. Its 16 banks of 4x1 multiplexers can be combined into a single 64-channel, 2-wire multiplexer.

ManufacturerNI (National Instruments)
ModelPXI-2576
Part Number778572-76
Product Type64‐Channel, 2-Wire, Multibank PXI Multiplexer Switch Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2576

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Scan Rate130 cycles/s
Mode (n-wire)2-wire
Bus ConnectorPXI Hybrid
Maximum Switching Current DC1 A
Maximum Switching Voltage DC100 V
Relay TypeElectromechanical
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-2576 provides 16 banks of 4x1 2-wire multiplexers. The banks support parallel measurement operations requiring low channel counts or can be combined into a single multiplexer with 64 2-wire channels.

The module uses electromechanical relays, supports hardware triggers for deterministic operation and includes onboard relay counting for relay monitoring.

  • 64-channel capacity with 2-wire switching.
  • Multibank architecture with 16 banks of 4x1 multiplexers.
  • Electromechanical relays with a listed switch bandwidth of 30 MHz.
  • Maximum DC switching ratings of 100 V and 1 A; consult NI specifications for applicable operating limits.
  • Hardware triggering for deterministic operation.
  • Onboard relay counting for relay monitoring.
Verified specifications

Technical data

Verified product specifications.

Scan Rate130 cycles/s
Mode (n-wire)2-wire
Bus ConnectorPXI Hybrid
Maximum Switching Current DC1 A
Maximum Switching Voltage DC100 V
Relay TypeElectromechanical
Switch Bandwidth30 MHz
Number of Channels4, 8, 16, 32, 64
Number of Banks1, 2, 4, 8, 16
Supported Hardware PlatformPXI
Bus ConnectionPXI Hybrid
Crosspoints64
Maximum Carry Current AC1 A
Maximum Switching Voltage AC100 V
Number of Columns1
Number of Rows128
Row AccessYes
NI part numbers778572-76
