National Instruments · PXI

PXI-2570

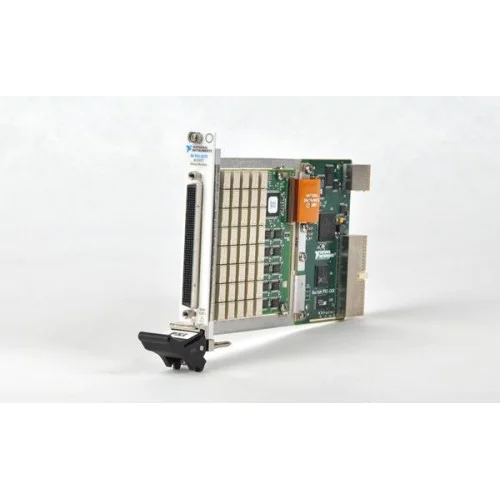

The National Instruments PXI-2570 is a PXI relay module with 40 armature latching SPDT relays. It provides COM, normally closed, and normally open signal connections and supports channel control through NI-SWITCH.

ManufacturerNational Instruments

ModelPXI-2570

Product Type40-channel SPDT relay module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2570

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Relay count40

Topology40-SPDT

Relay technologyElectromechanical armature, latching

Signal connector200-pin LFH

Control driverNI-SWITCH

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2570 belongs to NI's general-purpose PXI relay module family. Its 40-SPDT topology provides individual changeover relay paths rather than a predefined matrix or multiplexer arrangement.

NI documents channel connections through the niSwitch Connect Channels VI and niSwitch_Connect function. The official overview includes the pinout, hardware diagram, channel-to-relay mapping, and relay replacement procedures.

40 latching SPDT electromechanical relays.
COM, NC, and NO signal connections for each relay channel.
NI-SWITCH channel connection functions and VIs.
LFH200 signal connectivity with manufacturer-listed cable and terminal block options.

Verified specifications

Technical data

Verified product specifications.

Relay count	40 relays
Relay topology	40-SPDT
Relay type	Armature latching electromechanical
Signal connector	LFH, 200-pin
NI-SWITCH topology identifier	2570/40-SPDT (NISWITCH_TOPOLOGY_2570_40_SPDT)

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular hardware platform

PXI-2570

40-SPDT relay switching module

Software control

NI-SWITCH supports the PXI-2570; select a driver release appropriate to the host software and operating system.

Confirm electrical ratings before connecting loads. NI warns that inductive-load transients can exceed the module's rated voltage.
