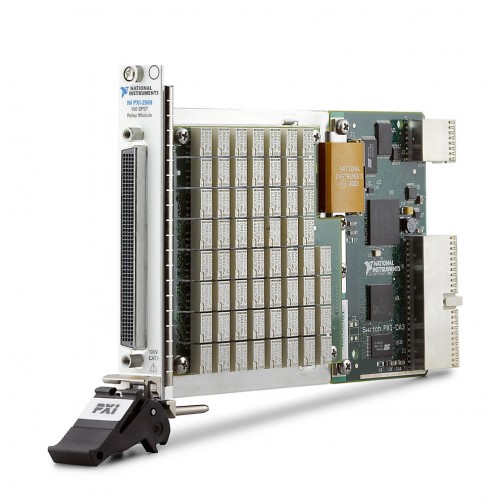

NI (National Instruments) PXI-2569 100-Channel, 1 A, SPST PXI Relay Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXI-2569

The NI PXI-2569 is a 100-channel PXI relay module with independent SPST normally open electromechanical relays. It provides a maximum DC switching current of 1 A and a maximum switching voltage of 100 V.

ManufacturerNI (National Instruments)
ModelPXI-2569
Part Number778572-69
Product Type100-Channel, 1 A, SPST PXI Relay Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2569

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Scan Rate145 cycles/s
Bus ConnectionPXI Hybrid
Maximum Switching Current DC1 A
Maximum Switching Voltage DC100 V
Relay ConfigurationSPST (open)
Switch Bandwidth20 MHz
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-2569 is a general-purpose switch module featuring 100 independent single-pole single-throw (SPST) Form A armature relays. Its normally open electromechanical contacts provide individually controlled switching paths within the PXI platform.

The module is software programmable and includes a 32,000-step scan list for deterministic scanning. Its specified scan rate is 145 cycles/s, with a switch bandwidth of 20 MHz.

  • 100 channels using independent SPST normally open electromechanical relays.
  • Maximum DC switching current of 1 A.
  • Maximum switching voltage of 100 V for DC and AC operation.
  • 145 cycles/s scan rate and 20 MHz switch bandwidth.
  • Software-programmable switching with a 32,000-step scan list.
  • PXI Hybrid bus connection with row access.
Verified specifications

Technical data

Verified product specifications.

Scan Rate145 cycles/s
Bus ConnectionPXI Hybrid
Maximum Switching Current DC1 A
Maximum Switching Voltage DC100 V
Relay ConfigurationSPST (open)
Switch Bandwidth20 MHz
Number of Relays100
Supported Hardware PlatformPXI
Maximum Carry Current AC1 A
Maximum Switching Voltage AC100 V
Number of Channels100
Relay TypeElectromechanical
Row AccessYes
NI part numbers778572-69
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-2569

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com
Open →
User Manual (NI)User Manual · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What relay configuration does the PXI-2569 use?

It uses independent single-pole single-throw (SPST) Form A armature relays with normally open contacts.

How many channels and relays does the PXI-2569 have?

The module has 100 channels and 100 electromechanical relays.

What are the maximum DC switching ratings?

The maximum DC switching current is 1 A, and the maximum DC switching voltage is 100 V. Consult the NI specifications for applicable load and operating limits; these maxima should not be assumed to apply simultaneously.

What scanning features does the module provide?

The PXI-2569 has a specified scan rate of 145 cycles/s and a 32,000-step scan list for deterministic scanning.
