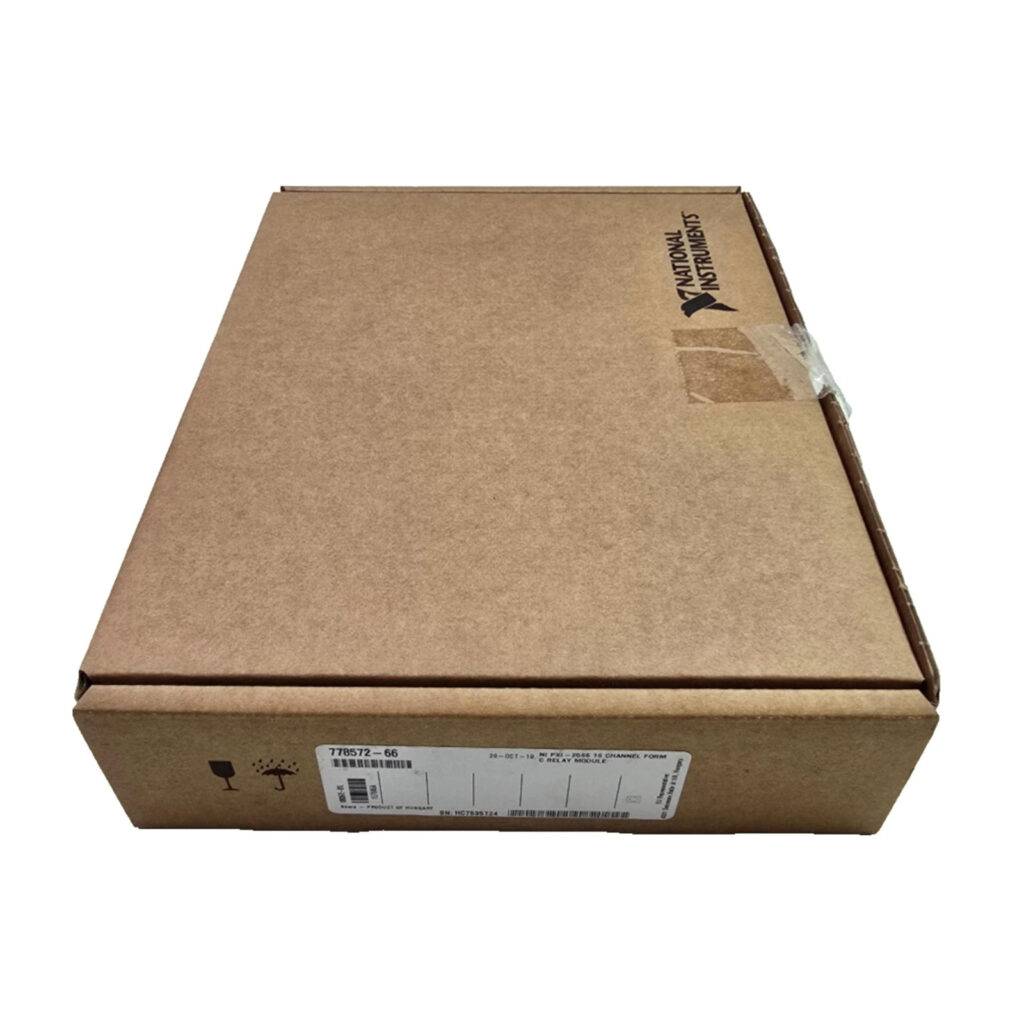

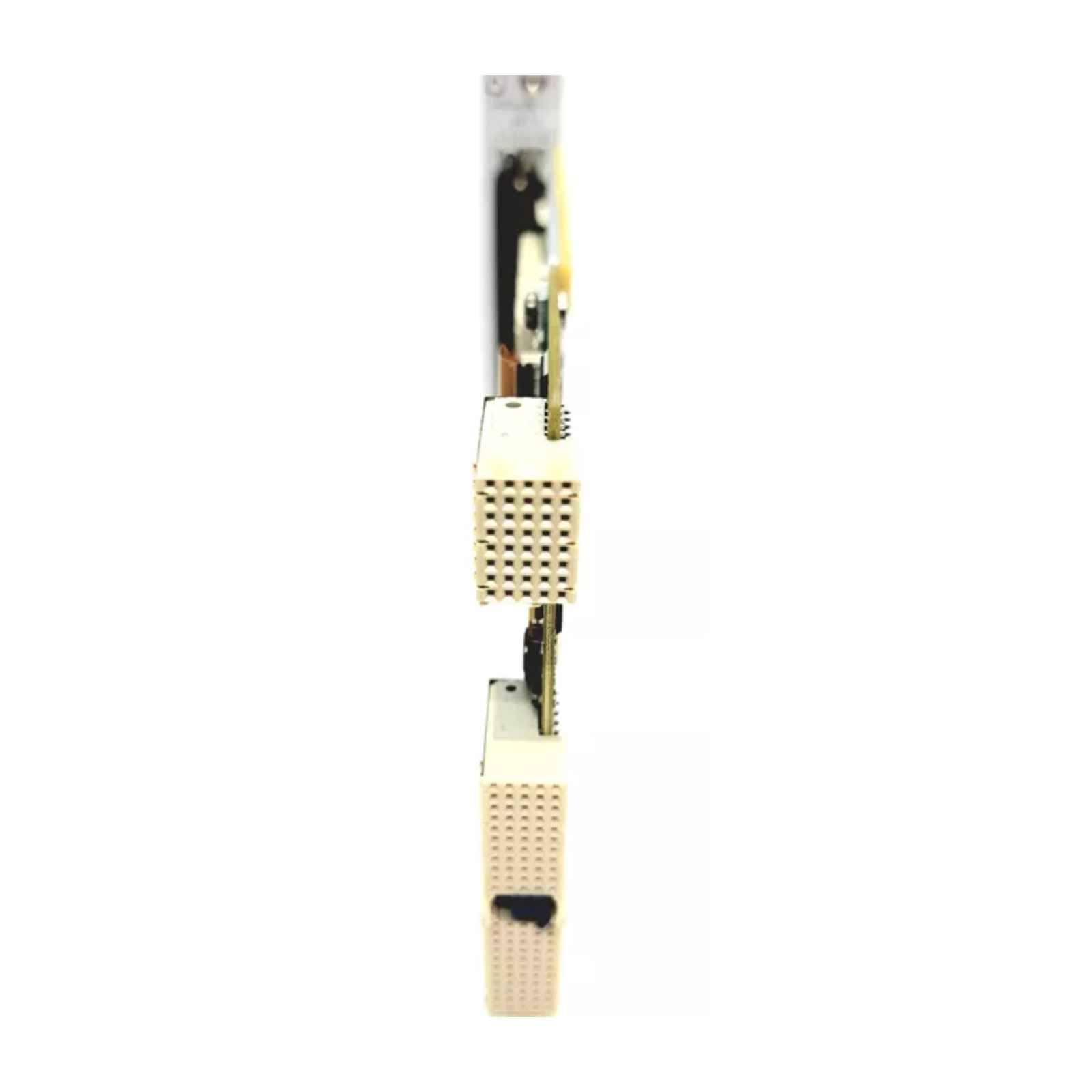

National Instruments PXI-2566 product image 1

National Instruments PXI-2566 product image 1 additional view

8 images: additional views below.Click to enlarge

NI (National Instruments) · PXI

PXI-2566

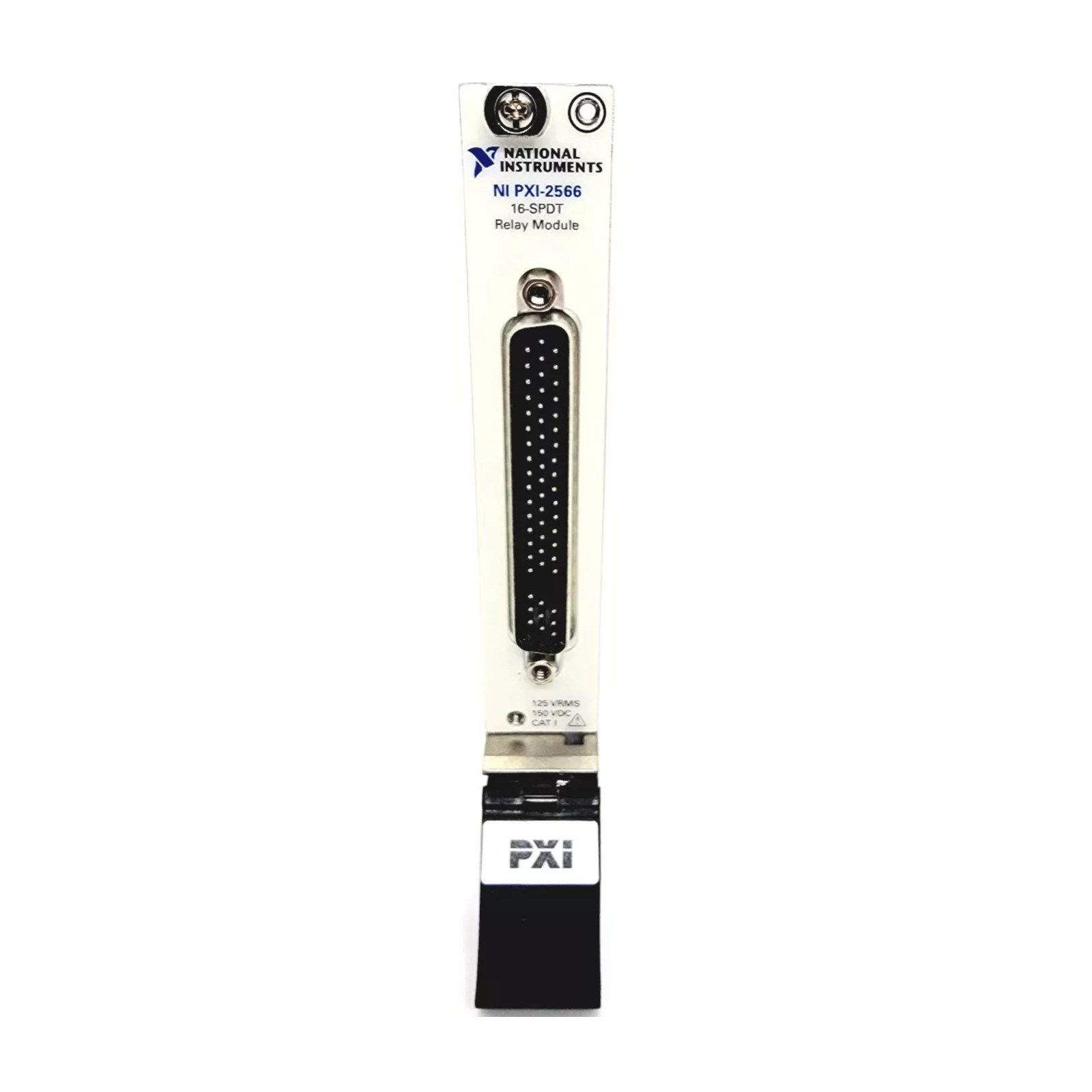

The NI PXI-2566 is a 16-channel SPDT PXI relay module with electromechanical relays and a maximum DC switching current of 2 A. It features a PXI Hybrid bus connection and a scan rate of 115 cycles/s.

ManufacturerNI (National Instruments)

ModelPXI-2566

Part Number778572-66 · 778573-66

Product Type16-Channel, 2 A, SPDT PXI Relay Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2566

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Scan Rate115 cycles/s

Bus ConnectionPXI Hybrid

Maximum Switching Current DC2 A

Relay ConfigurationSPDT

Switch Bandwidth70 MHz

Number of Relays16

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2566 is a general-purpose switch module with independent SPDT Form C armature relays. Each relay channel provides normally closed (NC), normally open (NO), and common (COM) terminals.

The module is designed for switching, routing, and controlling high-current signals. Its nonlatching relays provide low on-resistance and low thermal offsets.

16 electromechanical SPDT relays with row access.
Maximum DC switching current of 2 A.
70 MHz switch bandwidth and 115 cycles/s scan rate.
Maximum AC carry current of 5 A and maximum AC switching voltage of 125 V.
PXI Hybrid bus connection for the PXI hardware platform.

Verified specifications

Technical data

Verified product specifications.

Scan Rate	115 cycles/s
Bus Connection	PXI Hybrid
Maximum Switching Current DC	2 A
Relay Configuration	SPDT
Switch Bandwidth	70 MHz
Number of Relays	16
Supported Hardware Platform	PXI
Maximum Carry Current AC	5 A
Maximum Switching Voltage AC	125 V
Number of Channels	16
Relay Type	Electromechanical
Row Access	Yes
NI part numbers	778572-66, 778573-66

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-2566

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What relay configuration does the PXI-2566 use?

It uses independent SPDT Form C armature relays. Each channel has normally closed (NC), normally open (NO), and common (COM) terminals.

How many channels and relays does the module have?

The PXI-2566 has 16 channels and 16 electromechanical relays.

What are the switching and carry ratings?

The maximum DC switching current is 2 A. The maximum AC carry current is 5 A, and the maximum AC switching voltage is 125 V. Carry current is not the same as switching current; consult the NI specifications for operating limits.

What part numbers are listed for the PXI-2566?

The existing verified catalog data lists NI part numbers 778572-66 and 778573-66.
