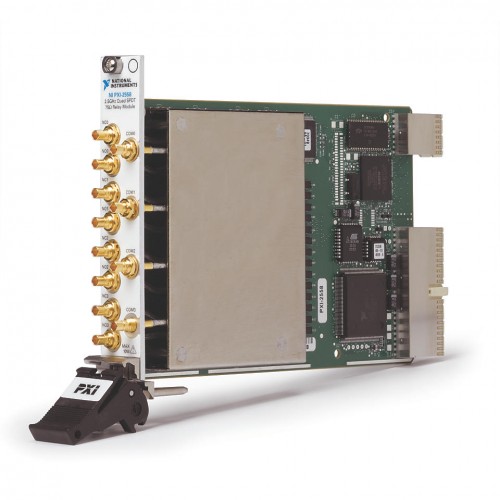

PXI-2558

The National Instruments PXI-2558 is a 2.5 GHz, 75 Ω RF relay module with four single-pole, double-throw (SPDT) relays. It uses SMB signal connectors and belongs to NI's PXI switching portfolio.

ManufacturerNational Instruments

ModelPXI-2558

Part Number778572-58

Product TypePXI RF relay module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2558

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI

Relay topologyQuad SPDT

Bandwidth2.5 GHz

Characteristic impedance75 Ω

Signal connectorSMB
