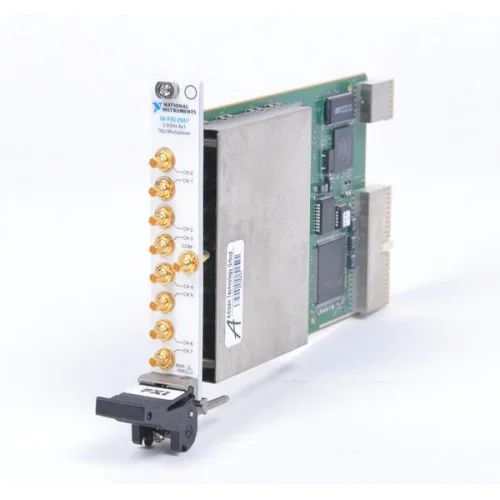

National Instruments PXI-2557 product image 1

National Instruments PXI-2557 product image 1 additional view

4 images: additional views below.Click to enlarge

National Instruments · PXI

PXI-2557

The NI PXI-2557 is a 2.5 GHz, 75 Ω RF switch module with an 8×1 multiplexer topology.

ManufacturerNational Instruments

ModelPXI-2557

Part Number778572-57

Product TypeRF multiplexer switch module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2557

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Topology8×1 multiplexer

Bandwidth2.5 GHz

Impedance75 Ω nominal

Connections9 mini-75 Ω SMB jacks

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2557 provides eight selectable RF paths to a common connection. NI identifies it as a 75 Ω multiplexer with 2.5 GHz bandwidth.

Latching electromechanical relays.
Single-slot 3U construction.
PXI trigger lines 0–7 for input and output.

Verified specifications

Technical data

Verified product specifications.

Maximum switching voltage	30 V
Maximum switching current per channel	0.5 A
Maximum carry current per channel	0.5 A
Maximum RF power	10 W
Insertion loss at ≤2.5 GHz	<2.15; typical 41 dB
Maximum relay operate time	10.4 ms
Operating temperature	0 to 55 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-2557

RF multiplexing

NI advises against switching active RF signals; channel-to-common switching power must not exceed 10 W.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-2557 SpecificationsSpecifications · ni.com

Open →

NI PXI-2557 Hardware DiagramHardware Diagram · ni.com

Open →

Understanding Key RF Switch SpecificationsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PXI-2557 a 50 Ω switch?

No. NI specifies 75 Ω characteristic impedance.

Where can I find the routing diagram?

NI provides a dedicated PXI-2557 hardware diagram in the NI-SWITCH User Manual.
