PXI-2554

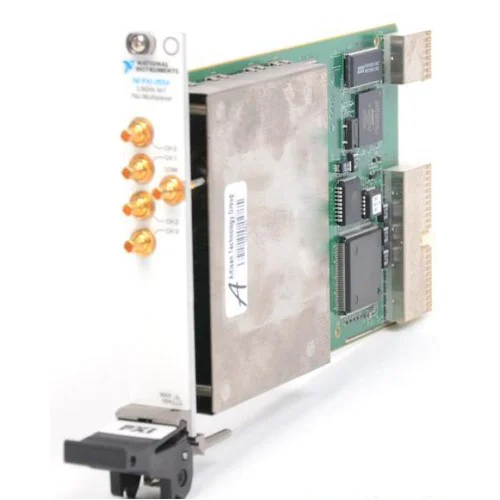

The NI PXI-2554 is a 2.5 GHz, 75 Ω, 4×1 RF multiplexer in a single-slot PXI module.

ManufacturerNational Instruments

ModelPXI-2554

Part Number778572-54

Product TypeRF multiplexer switch module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2554

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Topology4×1 (SP4T)

Bandwidth2.5 GHz

Impedance75 Ω nominal

ConnectionsFive mini-75 Ω SMB jacks
