PXI-2549

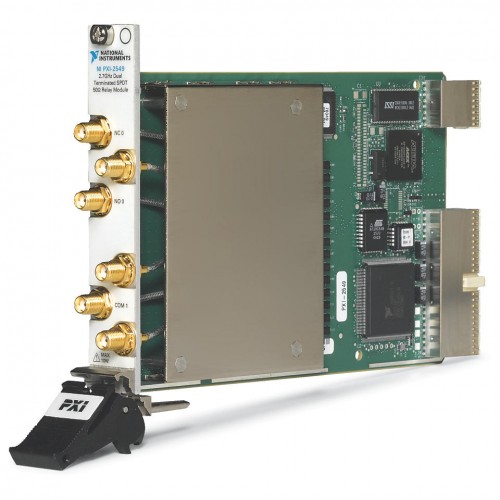

The NI PXI-2549, part number 778572-49, is a 2.7 GHz, 50 ohm dual-terminated SPDT PXI RF relay module. It provides two relay banks using electromechanical relays.

ManufacturerNI (National Instruments)
ModelPXI-2549
Part Number778572-49
Product Type2.7 GHz, 50 Ω, Dual-Terminated SPDT PXI RF Relay Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2549

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Number of Banks2
Scan Rate45 cycles/s
Bus ConnectionPXI Hybrid
Maximum Carry Current AC0.5 A
Maximum Switching Voltage AC30 V
Relay ConfigurationSPDT
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-2549 is a single-pole double-throw RF switch module for the PXI platform. Its two banks and electromechanical relays provide switching with a specified bandwidth of 2.7 GHz and a characteristic impedance of 50 ohm.

Dual termination uses 50 ohm termination resistors to minimize reflections on open channels. Consult the model-specific NI specifications for the operating conditions associated with RF performance and electrical limits.

  • 2.7 GHz switch bandwidth with 50 ohm characteristic impedance.
  • Dual-terminated SPDT configuration with 50 ohm termination impedance.
  • Two relay banks, two channels and two electromechanical relays.
  • Specified scan rate of 45 cycles/s.
  • PXI platform module with a PXI Hybrid bus connection.
  • Maximum switching voltage of 30 V AC and 30 V DC.
Verified specifications

Technical data

Verified product specifications.

Number of Banks2
Scan Rate45 cycles/s
Bus ConnectionPXI Hybrid
Maximum Carry Current AC0.5 A
Maximum Switching Voltage AC30 V
Relay ConfigurationSPDT
Relay TypeElectromechanical
Switch Bandwidth2.7 GHz
Characteristic Impedence50 Ohm
TerminationYes
Supported Hardware PlatformPXI
Max Insertion Loss-1.35 dB
Maximum Switching Current DC0.5 A
Maximum Switching Voltage DC30 V
Mode (n-wire)1-wire
Number of Channels2
Number of Columns1
Number of Relays2
Number of Rows2
Row AccessYes
Termination Impedance50 Ohm
NI part numbers778572-49
