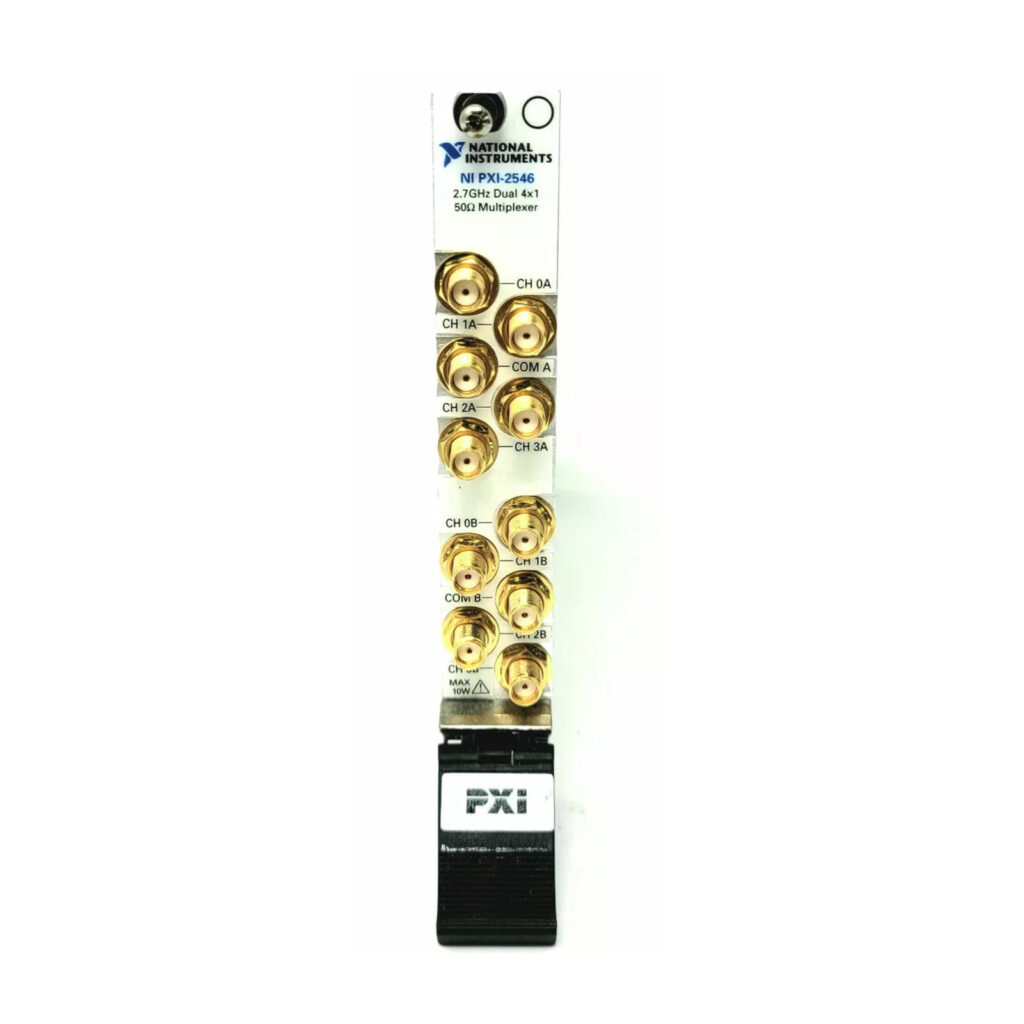

National Instruments PXI-2546 product image 1
National Instruments PXI-2546 product image 1 additional viewNational Instruments PXI-2546 product image 1 additional viewNational Instruments PXI-2546 product image 1 additional view

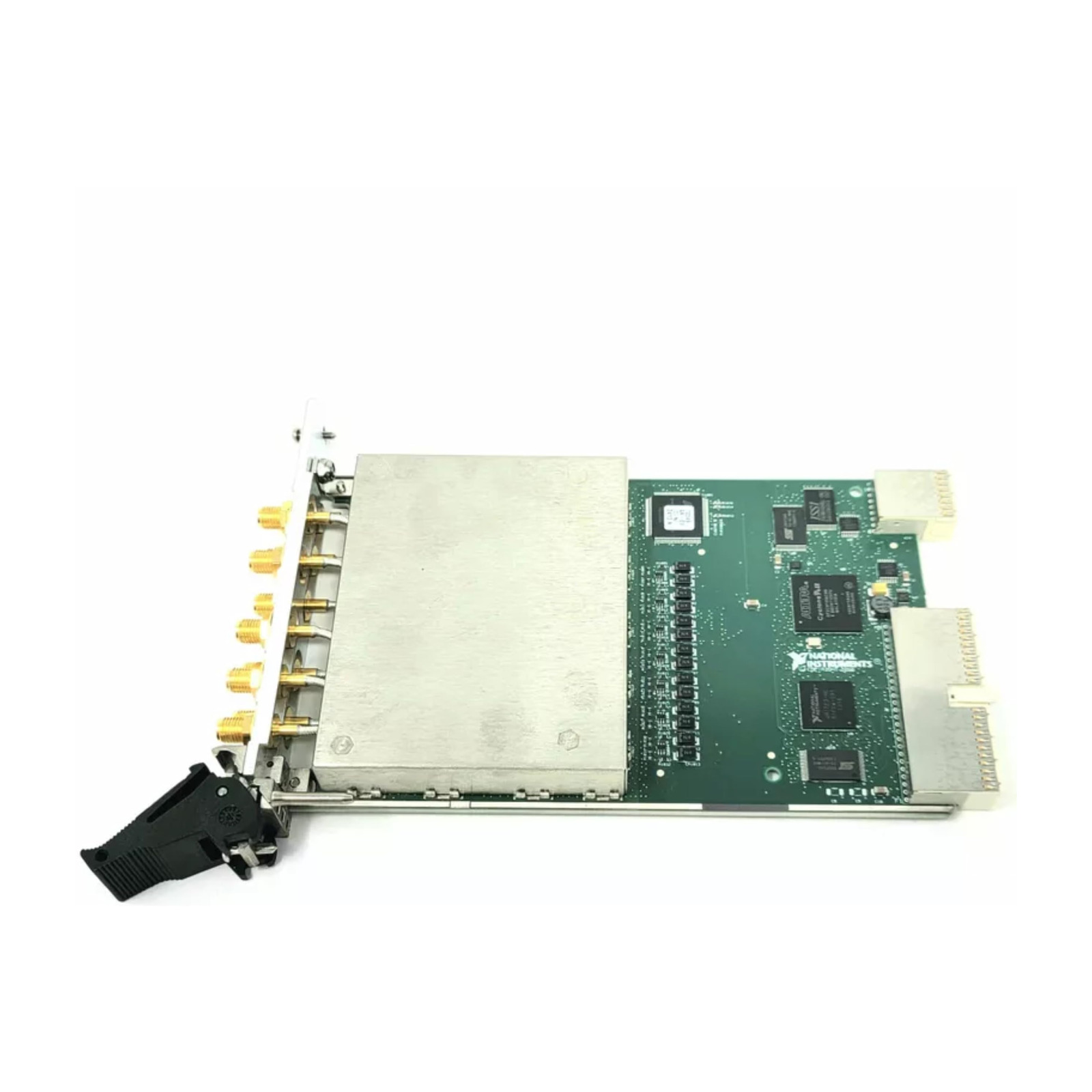

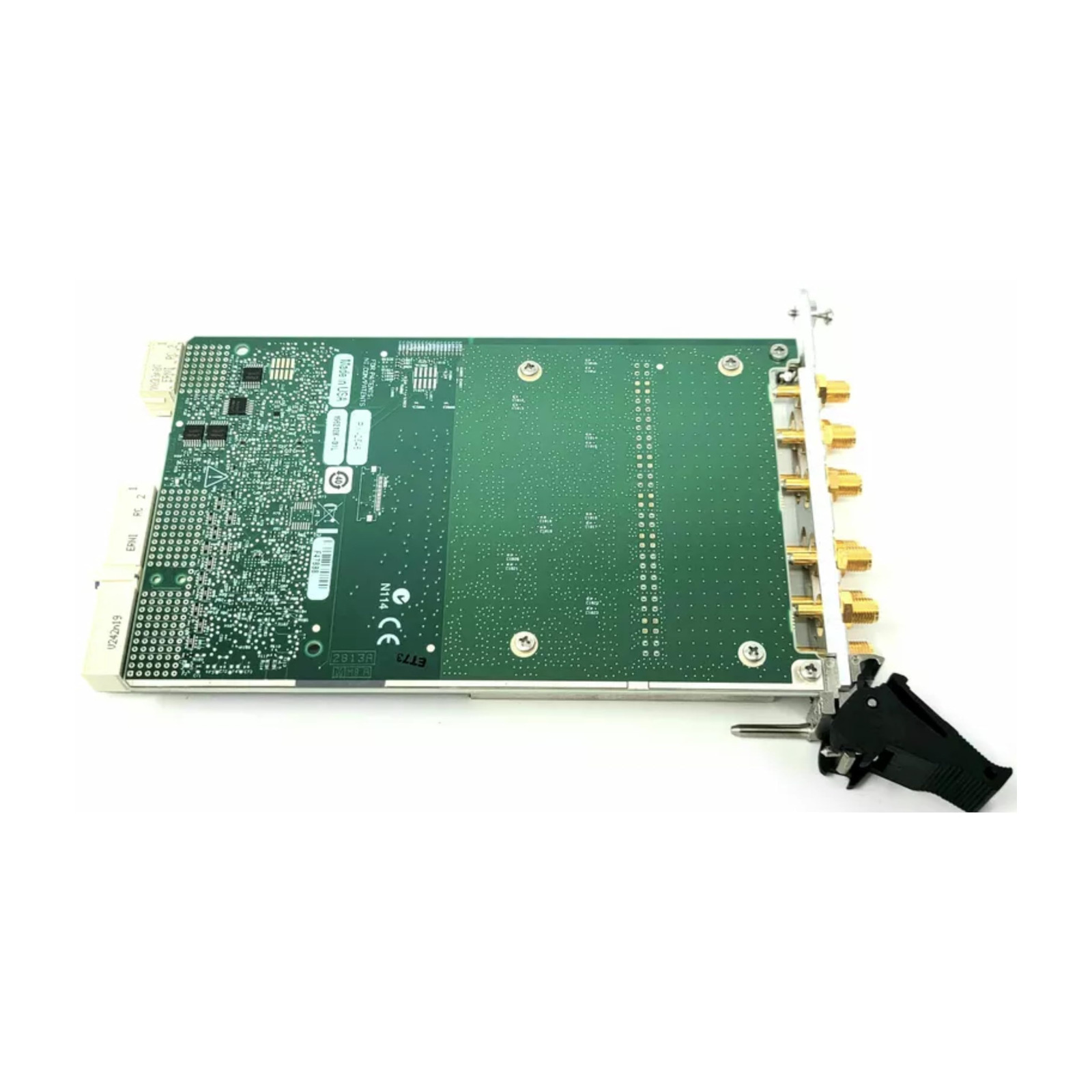

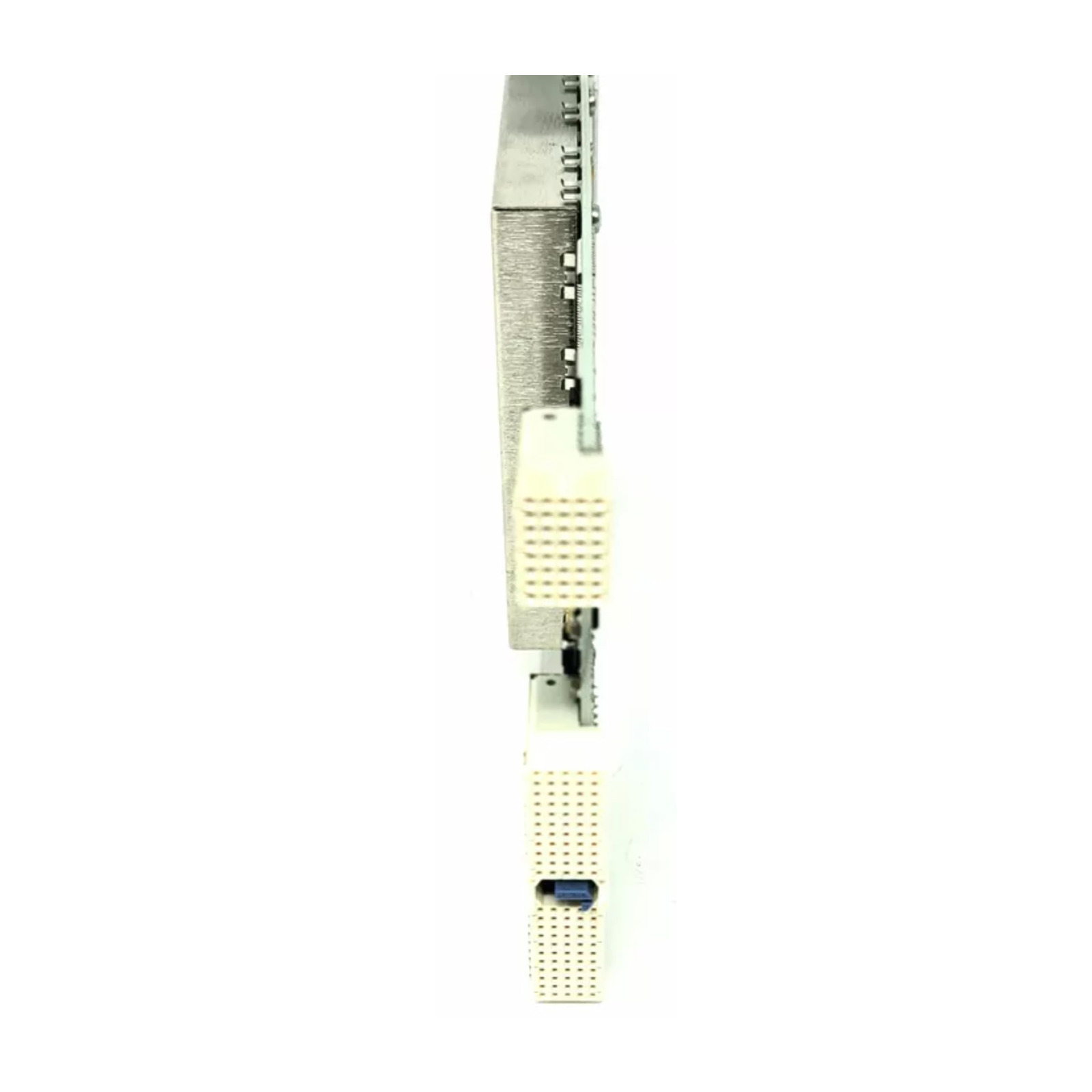

4 images: additional views below.Click to enlarge
NI (National Instruments) · PXI

PXI-2546

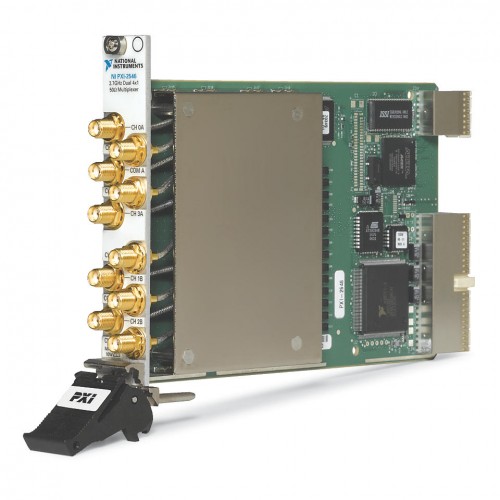

The NI PXI-2546, part number 778572-46, is a 2.7 GHz, 50 ohm dual 4x1 PXI RF multiplexer switch module. It uses electromechanical relays and provides two switching banks.

ManufacturerNI (National Instruments)
ModelPXI-2546
Part Number778572-46
Product Type2.7 GHz, 50 Ω, Dual 4x1 PXI RF Multiplexer Switch Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2546

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPXI Hybrid
Maximum Switching Voltage AC30 V
Relay TypeElectromechanical
Switch Bandwidth2.7 GHz
Characteristic Impedence50 Ohm
Max Insertion Loss-1.35 dB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-2546 is an RF signal-routing module for PXI systems. Its dual 4x1 configuration provides two multiplexer banks, with four selectable channels per bank.

The module combines electromechanical switching with a 50 ohm signal path and 2.7 GHz bandwidth. Use the NI specifications and switching-system getting-started guide to check electrical limits and integration requirements before installation.

  • Dual 4x1 multiplexer configuration with two switching banks.
  • 2.7 GHz switch bandwidth and 50 ohm characteristic impedance.
  • Electromechanical relays with no termination.
  • Maximum switching voltage of 30 V AC and 30 V DC.
  • Scan rate of 45 cycles/s.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPXI Hybrid
Maximum Switching Voltage AC30 V
Relay TypeElectromechanical
Switch Bandwidth2.7 GHz
Characteristic Impedence50 Ohm
Max Insertion Loss-1.35 dB
Number of Channels4
Number of Banks2
TerminationNo
Supported Hardware PlatformPXI
Maximum Carry Current AC0.5 A
Maximum Switching Current DC0.5 A
Maximum Switching Voltage DC30 V
Mode (n-wire)1-wire
Number of Columns1
Number of Rows4
Row AccessYes
Scan Rate45 cycles/s
NI part numbers778572-46
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-2546

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXI-2546?

The supplied verified catalog record identifies part number 778572-46.

What switching configuration does the PXI-2546 provide?

It is a dual 4x1 RF multiplexer with two banks, each offering four selectable channels.

What are the bandwidth and impedance?

The switch bandwidth is 2.7 GHz and the characteristic impedance is 50 ohm.

What type of relay does the PXI-2546 use?

The PXI-2546 uses electromechanical relays.
