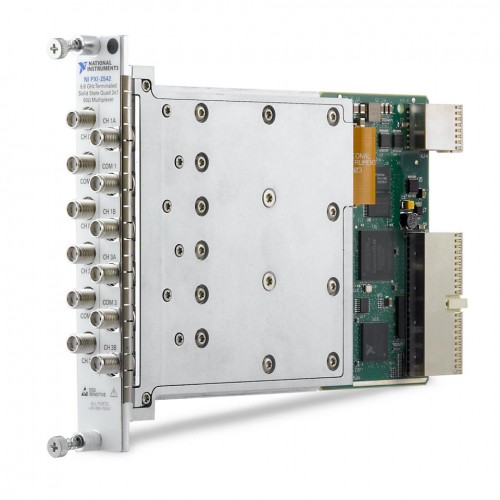

National Instruments PXI-2542 Terminated solid-state RF multiplexer
1 image: Click to enlarge
National Instruments · PXI

PXI-2542

The NI PXI-2542 is a 6.6 GHz, 50 Ω solid-state RF multiplexer with four terminated 2×1 banks.

ManufacturerNational Instruments
ModelPXI-2542
Product TypeTerminated solid-state RF multiplexer
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2542

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
TopologyQuad 2×1 terminated multiplexer
Frequency range10 MHz to 6.6 GHz
Impedance50 Ω nominal
RF connectionsSMA
