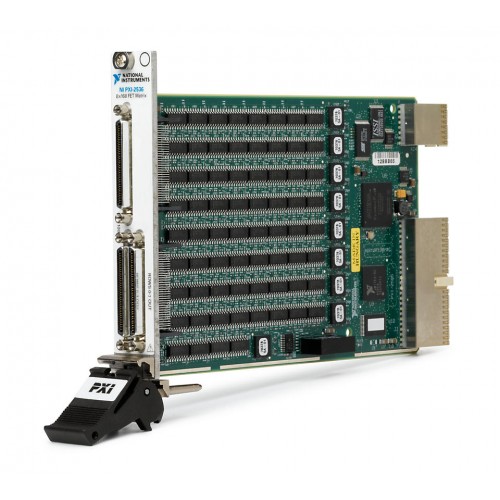

NI (National Instruments) PXI-2536 544-Crosspoint, 1-Wire PXI Matrix Switch Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXI-2536

The NI PXI-2536 is a 544-crosspoint, 1-wire PXI matrix switch module arranged as 8 rows by 68 columns. It uses FET relays and supports maximum DC switching ratings of 12 V and 100 mA.

ManufacturerNI (National Instruments)
ModelPXI-2536
Part Number778572-36
Product Type544-Crosspoint, 1-Wire PXI Matrix Switch Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2536

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Number of Columns68
Crosspoints544
Scan Rate50000 cycles/s
Bus ConnectorPXI Hybrid
Maximum Switching Current DC100 mA
Maximum Switching Voltage DC12 V
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-2536 is an 8 × 68 PXI matrix switch module for routing low-power DC signals in validation test systems, including systems for semiconductor chips and printed circuit boards. Its 1-wire matrix provides 544 crosspoints.

The module combines FET switching with a specified scan rate of 50,000 cycles/s and a 1 MHz switch bandwidth. Row access is supported. The NI part number retained for this model is 778572-36.

  • 544 crosspoints arranged as 8 rows and 68 columns.
  • FET relay technology with 1-wire operation and row access.
  • Maximum DC switching voltage of 12 V and maximum DC switching current of 100 mA.
  • Maximum AC switching voltage of 8 V and maximum AC carry current of 100 mA.
  • Specified scan rate of 50,000 cycles/s and switch bandwidth of 1 MHz.
  • PXI platform module with a PXI Hybrid bus connection.
Verified specifications

Technical data

Verified product specifications.

Number of Columns68
Crosspoints544
Scan Rate50000 cycles/s
Bus ConnectorPXI Hybrid
Maximum Switching Current DC100 mA
Maximum Switching Voltage DC12 V
Number of Rows8
Relay TypeFET
Switch Bandwidth1 MHz
Mode (n-wire)1-wire
Supported Hardware PlatformPXI
Bus ConnectionPXI Hybrid
Maximum Carry Current AC100 mA
Maximum Switching Voltage AC8 V
Number of Channels544
Number of Relays544
Row AccessYes
NI part numbers778572-36
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-2536

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
User Manual (NI)User Manual · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the matrix configuration of the PXI-2536?

It is a 1-wire matrix with 8 rows, 68 columns and 544 crosspoints.

What is the NI part number for the PXI-2536?

The listed NI part number is 778572-36.

What are the maximum DC switching ratings?

The maximum DC switching voltage is 12 V, and the maximum DC switching current is 100 mA.

What switching technology does the PXI-2536 use?

It uses FET relays in a 1-wire configuration and supports row access.

What are its scan rate and bandwidth?

The specified scan rate is 50,000 cycles/s, and the switch bandwidth is 1 MHz.
