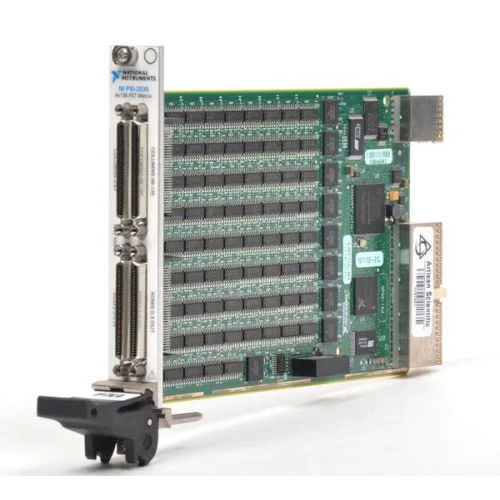

The NI PXI-2535 is a 544-crosspoint, 1-wire FET matrix switch with a 4 × 136 topology for routing low-power DC signals.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This high-density PXI matrix provides signal routing for semiconductor and printed circuit board validation systems. NI identifies hardware-triggered deterministic operation and onboard relay counting as additional capabilities.
Verified product specifications.
| Topology | 1-wire 4 × 136 matrix |
|---|---|
| Maximum switching voltage, channel-to-ground | ±12 VDC; 8 VAC (AC peak convention) |
| Maximum switching current | 100 mA |
| Maximum switching power per resistive channel | 1.2 W |
| Maximum scan rate | 50000 crosspoints/s |
| Simultaneous drive limit | 544 switches |
| Row-to-column path resistance | 9 typical; 14 maximum Ω |
| I/O connectors | Four 68-pin VHDCI receptacles |
| Form factor | 3U, one-slot PXI/cPCI module |
| Operating temperature | 0 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Hardware platform
Matrix switching module
NI lists the TBX-68 connector block, part number 777141-01, as an accessory for module part number 778572-35. Follow the documented cabling and shielding requirements.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It uses a 1-wire 4 × 136 matrix with 544 crosspoints.
No. NI specifies a simultaneous drive limit of 544 switches. Electrical operating limits still apply.
