NI (National Instruments) · PXI

PXI-2534

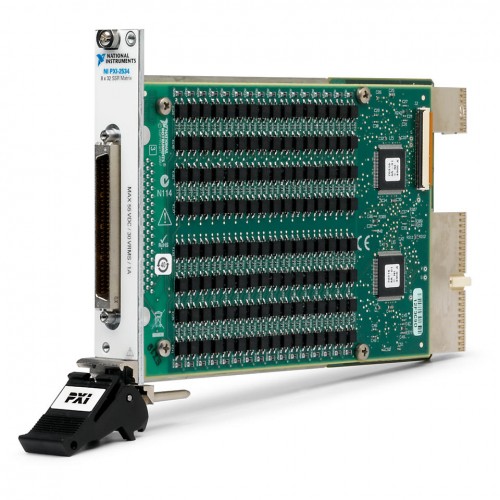

The NI PXI-2534, part number 778572-34, is a 256-crosspoint, 1-wire PXI matrix switch module with solid-state relays. Its single-bank matrix provides 8 rows and 32 columns.

ManufacturerNI (National Instruments)

ModelPXI-2534

Part Number778572-34

Product Type256-Crosspoint, 1-Wire PXI Matrix Switch Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2534

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Number of Columns32

Crosspoints256

Scan Rate400 cycles/s

Bus ConnectorPXI Hybrid

Maximum Switching Current DC1 A

Maximum Switching Voltage DC55 V

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The module belongs to the NI PXI switching platform and uses a PXI Hybrid bus connection. Listed performance includes a 400 cycles/s scan rate and 2 MHz switch bandwidth. Consult the NI specifications for operating conditions and switching limits before integration.

256-crosspoint matrix arranged as 8 rows by 32 columns in one bank.
1-wire switching architecture with 256 solid-state relays.
Maximum DC switching voltage of 55 V and maximum DC switching current of 1 A.
Maximum AC switching voltage of 30 V and maximum AC carry current of 1 A.
400 cycles/s scan rate and 2 MHz switch bandwidth.
PXI Hybrid bus connection and row access.

Verified specifications

Technical data

Verified product specifications.

Number of Columns	32
Crosspoints	256
Scan Rate	400 cycles/s
Bus Connector	PXI Hybrid
Maximum Switching Current DC	1 A
Maximum Switching Voltage DC	55 V
Number of Rows	8
Relay Type	Solid State
Switch Bandwidth	2 MHz
Mode (n-wire)	1-wire
Number of Banks	1
Supported Hardware Platform	PXI
Bus Connection	PXI Hybrid
Maximum Carry Current AC	1 A
Maximum Switching Voltage AC	30 V
Number of Channels	256
Number of Relays	256
Row Access	Yes
NI part numbers	778572-34

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-2534

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXI-2534?

The listed NI part number is 778572-34.

How is the PXI-2534 matrix arranged?

It has 8 rows and 32 columns, providing 256 crosspoints in one bank with 1-wire operation.

What relay technology does the PXI-2534 use?

The module uses solid-state relays and has 256 relays.

What are the DC switching limits?

The listed maximum DC switching voltage is 55 V, and the maximum DC switching current is 1 A. Consult the NI specifications for applicable operating conditions; these maxima should not be treated as an unrestricted simultaneous operating point.
