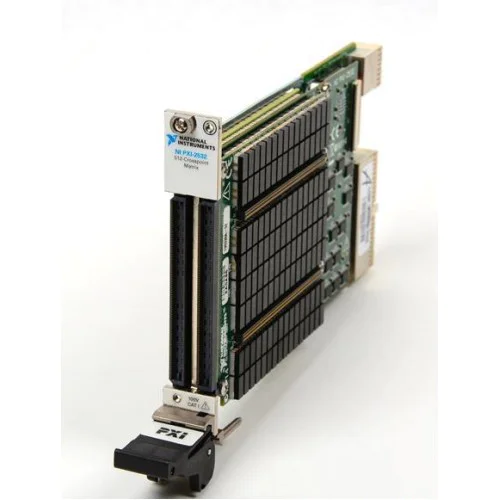

The National Instruments PXI-2532 is a 512-crosspoint reed-relay matrix switch with terminal-block-dependent configurations.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Select the terminal block to establish the required row/column topology. The original PXI-2532 and PXI-2532B use different module-to-terminal-block connections.
Verified product specifications.
| Maximum switching voltage | 100; DC or AC peak, channel-to-channel and channel-to-ground; CAT I V |
|---|---|
| Maximum switching or carry current | 0.5 per channel A |
| Maximum switching power | 10 per channel W |
| Relay operate time | 0.25 ms |
| Relay release time | 0.25 ms |
| Simultaneous relay drive limit | 40; PXI version relays |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Platform
Matrix switch
Original-generation terminal blocks: TB-2640, TB-2641, TB-2642, TB-2643, TB-2644 and TB-2645.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
TB-2640 provides 1-wire 4 × 128; TB-2641 provides 1-wire 8 × 64.
No. NI prohibits mains connections and Measurement Categories II, III and IV. Observe the 10 W per-channel limit as well as voltage and current limits.
No. NI identifies a changed front panel, terminal block and connector on the 2532B. Use the correct matching terminal block for each generation.
