NI (National Instruments) · PXI

PXI-2523

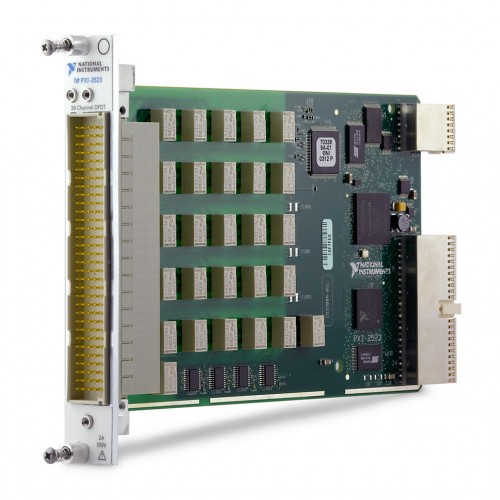

The NI PXI-2523 is a 26-channel PXI electromechanical relay module with independent DPDT armature relays, 2 A switching and carry current, and 100 V maximum switching voltage.

ManufacturerNI (National Instruments)

ModelPXI-2523

Part Number778572-23

Product Type26-Channel, 2 A, DPDT PXI Relay Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2523

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Scan Rate145 cycles/s

Bus ConnectionPXI Hybrid

Maximum Switching Current DC2 A

Maximum Switching Voltage DC100 V

Relay ConfigurationDPDT

Switch Bandwidth36 MHz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2523 is a general-purpose switch module with 26 independent double-pole double-throw armature relays. It is fully software programmable and supports onboard relay count tracking.

The module fits the PXI platform and uses a PXI Hybrid bus connection. Its nonlatching electromechanical relays provide low on-resistance and low thermal offsets.

26 independent channels using 26 DPDT electromechanical relays.
Maximum DC switching current of 2 A and maximum DC switching voltage of 100 V.
Nonlatching armature relays with low on-resistance and low thermal offsets.
36 MHz switch bandwidth and a scan rate of 145 cycles/s.
Software-programmable operation with onboard relay count tracking.

Verified specifications

Technical data

Verified product specifications.

Scan Rate	145 cycles/s
Bus Connection	PXI Hybrid
Maximum Switching Current DC	2 A
Maximum Switching Voltage DC	100 V
Relay Configuration	DPDT
Switch Bandwidth	36 MHz
Number of Relays	26
Supported Hardware Platform	PXI
Maximum Carry Current AC	2 A
Maximum Switching Voltage AC	100 V
Number of Channels	26
Relay Type	Electromechanical
Row Access	Yes
NI part numbers	778572-23

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-2523

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What relay configuration does the PXI-2523 use?

The PXI-2523 has 26 independent DPDT (double-pole double-throw) electromechanical armature relays.

What are its maximum DC switching ratings?

The listed maximum DC switching current is 2 A, and the maximum DC switching voltage is 100 V. Consult the NI specifications for operating limits before selecting a load.

Is the PXI-2523 software programmable?

Yes. The module is fully software programmable and supports onboard relay count tracking.

What platform and bus connection does it use?

The supported hardware platform is PXI, with a PXI Hybrid bus connection. Confirm the specific chassis, controller and software combination before integration.
