National Instruments · PXI

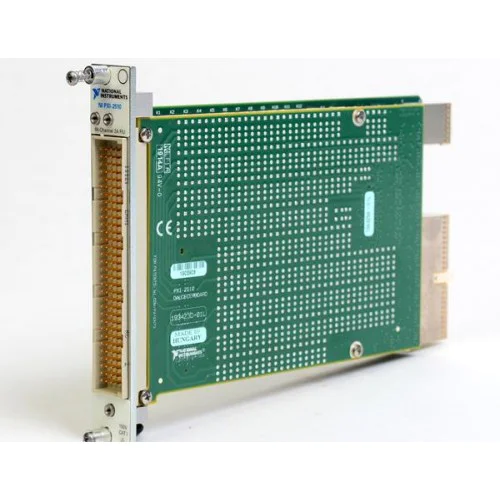

PXI-2510

The NI PXI-2510 is a 68-channel PXI fault insertion module for hardware-in-the-loop and electronic reliability testing. Its feedthrough channels support simulated open connections and shorts between pins, to battery voltages or to ground.

ManufacturerNational Instruments

ModelPXI-2510

Part Number778572-10

Product TypePXI Signal Insertion Switch Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2510

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels68 feedthrough channels

Fault busesTwo buses, each with four switchable inputs

Channel currentUp to 2 A; cable and temperature restrictions apply

Switching limits150 V maximum; 60 W maximum per channel

Form factor3U, single-slot PXI/cPCI module

Signal connector160-position male DIN 41612

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2510 sits in the signal path between test equipment and a device under test. Closed feedthrough paths provide normal signal connections; relay configurations introduce interruptions or connect DUT signals to fault buses to evaluate responses to wiring faults.

NI identifies ECU and FADEC validation as product applications when controlled with the LabVIEW Real-Time Module. Its two fault buses provide selectable external fault connections for automated test sequences.

Simulates open-circuit, pin-to-pin, short-to-battery and short-to-ground faults.
Two fault buses with four switchable inputs per bus allow selection among external fault potentials.
PXI trigger lines 0 through 7 support input and output triggering.
Electromechanical, non-latching relays are field replaceable.

Verified specifications

Technical data

Verified product specifications.

Channel count	68 channels
Fault bus count	2
Topology	Independent
Maximum switching voltage	150 channel-to-channel and channel-to-ground; DC or AC peak; CAT I V
Maximum switching power per channel	60; subject to voltage and current limits W
Maximum current per channel	Module alone: 2 A at 0–55 °C. With cable: 1 A at 0–55 °C or 1.5 A at 0–40 °C. Cable operation at 2 A requires special signal routing precautions.
Maximum total module current	Module alone: 64 A. With cable: 32 A at 0–55 °C or 48 A at 0–40 °C.
Relay operate time	1 typical; 3 maximum ms
Simultaneous drive limit	38 relays; opening a channel-to-DUT path counts toward this limit
Front panel connector	160-position male DIN 41612
Form factor	3U, one-slot PXI/cPCI

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI/cPCI

Modular hardware platform

PXI-2510

68-channel fault insertion module

Software integration

NI documents VeriStand integration using NI-SWITCH and the Routing and Faulting custom device in a version-specific configuration guide.

Observe cable current derating and the 60 W per-channel limit. Do not connect this CAT I module directly to mains circuits.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-2510 Product PageProduct Page · ni.com

Open →

NI PXI-2510 SpecificationsSpecifications PDF · download.ni.com

Open →

160-Pin DIN Cable Installation Instructions for 252x and 2510Installation Instructions PDF · docs-be.ni.com

Open →

How to Connect Signals to the NI PXI-2510 FIUTechnical resource

Open →

Configure PXI-2510 Fault Insertion Unit Using NI VeriStandTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What faults can the PXI-2510 simulate?

It supports open or interrupted connections, pin-to-pin shorts, shorts to battery voltages and shorts to ground on a per-channel basis.

Can every channel operate at 2 A with a cable attached?

Not without additional restrictions. NI specifies 1 A per channel with cable at 0–55 °C or 1.5 A at 0–40 °C. Achieving 2 A with a cable assembly requires special signal routing precautions described in the DIN160 cable instructions; total module current limits also apply.

Are 150 V and 2 A simultaneous switching ratings?

The voltage and current maxima do not override the 60 W maximum switching power per channel. All applicable voltage, current, power and cable limits must be satisfied.
