PXI-2503

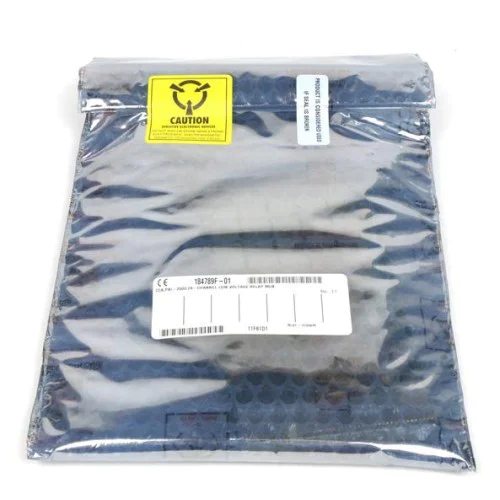

The National Instruments PXI-2503 is an electromechanical PXI switch module configurable as a multiplexer or matrix through the appropriate terminal block accessories. Low-thermal-offset relays and a 1,024-step scan list support measurement routing and deterministic scanning.

ManufacturerNational Instruments

ModelPXI-2503

Part Number777697-01 · 184789-01

Product TypeElectromechanical multiplexer/matrix switch module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2503

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI

Switch technologyElectromechanical relays

Wire modes1-wire, 2-wire, and 4-wire

Scan list1,024 steps

Signal connector68-pin SCSI

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2503 provides configurable signal routing within a PXI measurement system. Terminal block selection determines its multiplexer or matrix arrangement; NI documents a 48×1 single-wire multiplexer configuration with the TB-2605 and a 4×6 matrix configuration with the TB-2606.

For sensor connections, the compatible TB-2605 isothermal terminal block accommodates thermocouples, RTDs, thermistors, and voltage signals. Its cold-junction temperature sensor and isothermal construction support thermocouple measurement connections.

Low-thermal-offset electromechanical relays for measurement signal routing.
Selectable 1-, 2-, and 4-wire switching modes.
1,024-step scan list for deterministic scanning.
48×1 single-wire multiplexer topology using the TB-2605 terminal block.
Expandable matrix routing through wired TB-2606 terminal block connections.

Verified specifications

Technical data

Verified product specifications.

Relay type	Electromechanical
Switching modes	1-wire, 2-wire, 4-wire
Scan-list capacity	1024 steps
Maximum DC switching voltage	60 V
Maximum DC switching current	1 A
Signal connector	68-pin SCSI

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-2503

Multiplexer/matrix signal routing module

Multiplexer connections

TB-2605 isothermal terminal block

Match the terminal block and pinout to the selected topology. Do not assume maximum voltage and current ratings apply simultaneously.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-2503 Official Product PageProduct Page · ni.com

Open →

TB-2605 Isothermal Terminal Block Installation GuideInstallation Guide · download.ni.com

Open →

PXI-2501/2503 48×1 Single-Wire Multiplexer TopologyTopology And Pinout Reference · ni.com

Open →

NI-SWITCH Matrix ExpansionUser Manual Section · ni.com

Open →

PXI-2503 Dimensional DrawingsTechnical resource

Open →

NI Multiplexer Cable and Accessory Compatibility GuideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the PXI-2503 operate as both a multiplexer and a matrix?

Yes. NI specifies multiplexer and matrix operation using different terminal block accessories. Select the terminal block and wiring for the required topology.

Which terminal block supports thermocouple connections?

The TB-2605 connects directly to the PXI-2503 and provides isothermal screw terminals plus a thermistor cold-junction temperature sensor for thermocouple measurements.

Can multiple PXI-2503 modules form a larger matrix?

Yes. NI describes connecting rows or columns between TB-2606 terminal blocks to expand the matrix. The analog bus connectors cannot be used for matrix expansion.
