National Instruments · PXI

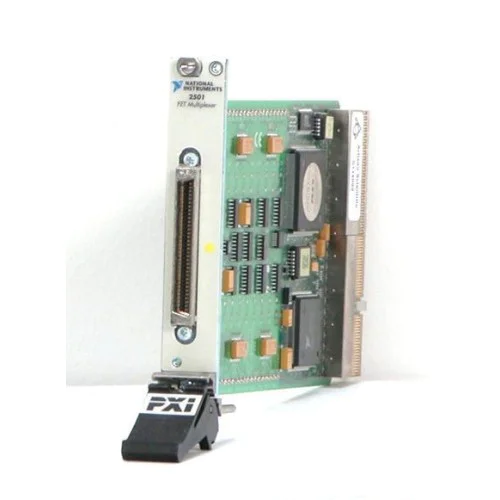

PXI-2501

The National Instruments PXI-2501 is a low-voltage FET switch module configurable as a multiplexer or matrix. Supported configurations include 48×1 one-wire, 24×1 two-wire, and 12×1 four-wire multiplexing, plus a 4×6 matrix using the appropriate terminal block.

ManufacturerNational Instruments

ModelPXI-2501

Product TypeLow-voltage FET multiplexer/matrix switch module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2501

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Switch technologyFET

Multiplexer configurations48×1 one-wire; 24×1 two-wire; 12×1 four-wire

Matrix configuration4×6 with TB-2606

Signal connector68-pin SCSI

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2501 provides FET-based signal switching within the NI PXI platform. NI documents both multiplexer and matrix operation, allowing its routing arrangement to be selected for the measurement system rather than treating it as a fixed-topology switch.

The TB-2605 provides direct front-panel screw-terminal connectivity for multiplexer applications. For matrix operation, NI documents the TB-2606 and explains how multiple modules can be wired together to expand the matrix.

FET-based low-voltage multiplexer/matrix switching.
One-, two-, and four-wire multiplexer topologies support different signal-routing arrangements.
TB-2605 isothermal terminal-block connectivity supports thermocouples, RTDs, thermistors, and voltage signals.
Matrix expansion is documented through direct wiring between TB-2606 terminal blocks.

Verified specifications

Technical data

Verified product specifications.

Switch technology	FET
One-wire multiplexer topology	48×1
Two-wire multiplexer topology	24×1
Four-wire multiplexer topology	12×1
Matrix topology	4×6 using TB-2606
Signal connector	68-pin SCSI

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Module platform

PXI-2501

FET multiplexer/matrix switch

Multiplexer connectivity

TB-2605 direct-mounted isothermal screw-terminal block

Select connectivity for the intended topology. NI states that analog bus connectors cannot be used to expand a matrix.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-2501 Product SupportSupport Page · ni.com

Open →

TB-2605 Isothermal Terminal Block Installation GuideInstallation Guide · download.ni.com

Open →

NI PXI-2501/2503 Two-Wire 24×1 Multiplexer TopologyNI-SWITCH User Manual Section · ni.com

Open →

NI PXI-2501/2503 Four-Wire 12×1 Multiplexer TopologyNI-SWITCH User Manual Section · ni.com

Open →

NI Matrix ExpansionTechnical resource

Open →

NI Multiplexer Cable and Accessory CompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the PXI-2501 operate as both a multiplexer and a matrix?

Yes. NI documents multiplexer configurations and a 4×6 matrix configuration using TB-2606 connectivity.

Which terminal block supports multiplexer signal connections?

NI lists the TB-2605 for PXI-2501 multiplexer connectivity. It connects directly to the front-panel I/O connector and provides screw terminals.

How can the matrix be expanded?

NI documents connecting corresponding rows or columns between TB-2606 terminal blocks. Two modules can form a 4×12 matrix; three can form a 12×6 matrix. Analog bus connectors cannot be used for this expansion.
