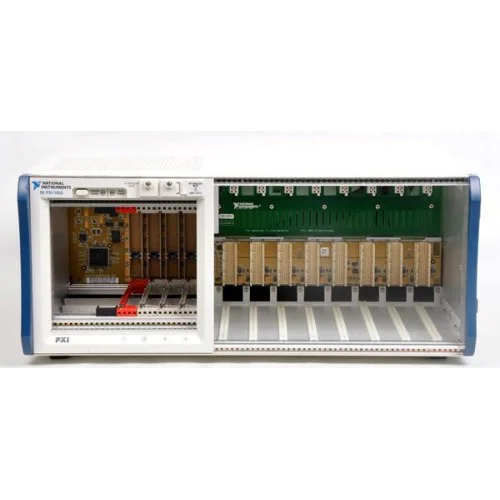

The NI PXI-1052 combines four PXI slots and eight SCXI slots in one chassis for measurement systems requiring integrated signal conditioning.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-1052 integrates PXI instrumentation and SCXI signal-conditioning modules. NI identifies multiplexing, filtering, isolation, amplification, and switching as relevant signal-conditioning functions.
PXI slot 4 provides the SCXI control connections for a suitable DAQ, DMM, or NI-Switch controller module. The integrated connection carries communication, timing, and low-voltage analog signals.
Verified product specifications.
| Total slots | 12 slots |
|---|---|
| PXI slots, including controller slot | 4 slots |
| SCXI slots | 8 slots |
| PXI peripheral slots | 3, including the star-trigger slot slots |
| Maximum system bandwidth | 132 MB/s |
| Operating temperature | 0 to 50 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Instrumentation and signal-conditioning platforms
Combination chassis
Use a suitable controller module in PXI slot 4.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. The four-slot PXI subsystem includes one system-controller slot and three peripheral slots.
NI specifies a PXI M Series DAQ module with a full backplane connector in the final PXI slot. A full J2 connector is required for backplane SCXI communication.
No. NI lists zero PXI Express slots and zero hybrid slots.
