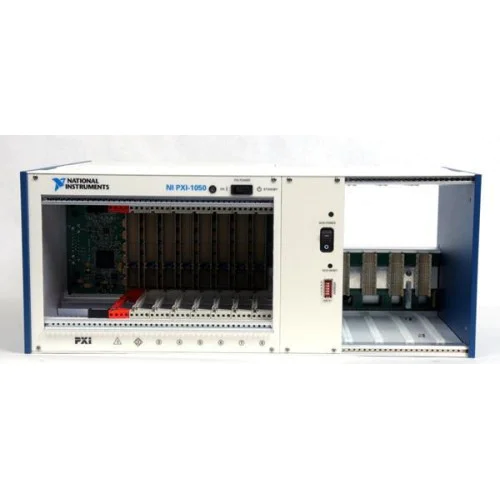

The NI PXI-1050 combines an eight-slot PXI section with four SCXI slots for integrated measurement and signal conditioning.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This combination chassis brings PXI instrumentation and SCXI signal-conditioning modules into one enclosure. Its PXI section accepts an embedded or remote controller.
Verified product specifications.
| Total physical slots | 12 slots |
|---|---|
| PXI section size | 8 slots |
| SCXI section size | 4 slots |
| Slot cooling capacity | 30 W |
| Operating temperature | 0 to 50 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Instrumentation and signal conditioning
Combination chassis
NI documents SCXI control using a PXI M Series DAQ card with a full backplane connector. Verify the specific card and slot arrangement before integration.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI identifies a full J2 connector on the DAQ card in the final PXI slot as important for backplane communication. Its guidance states that a PXI M Series DAQ card with a full backplane connector can control the SCXI section of the PXI-1050.
NI identifies a rear rotary selector on the SCXI section with 100, 120, 220, and 240 VAC settings. Check the actual chassis configuration before connecting power.
