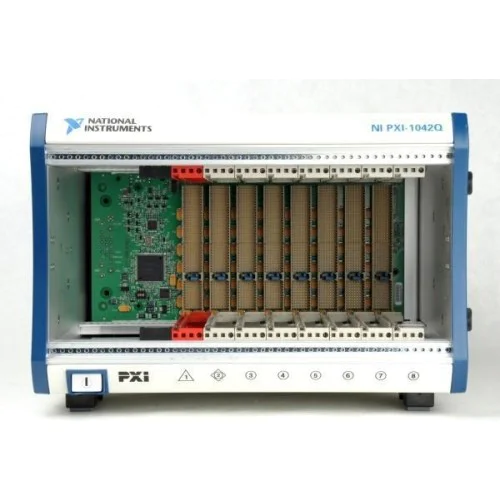

The NI PXI-1042Q is a quiet, eight-slot AC-powered PXI chassis supporting 3U PXI and CompactPCI modules.
Core content remains expanded and crawlable.
Designed for reduced acoustic noise, the PXI-1042Q provides a chassis platform for office, laboratory and educational PXI systems.
The backplane includes seven peripheral slots. Slot 2 supports star-trigger functionality and also accepts a standard peripheral module.
Only supported values belong in the table and schema.
| Total slots | 8 slots |
|---|---|
| Peripheral slots | 7 slots |
| Module form factor | 3U — |
| Maximum system bandwidth | 132 MB/s |
| Per-slot cooling capacity | 25 W |
| AC input voltage | 100 to 240 VAC |
| Input frequency | 50/60 Hz |
| Operating ambient temperature | 0 to 40 °C |
| Sound pressure level | 43.4; AUTO fan at 25 °C ambient, operator position, ISO 7779 dBA |
Critical for used and surplus equipment.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Internal links mirror real engineering relationships.
Manufacturer
Module platform
Quiet eight-slot chassis
PXI, without PXI Express or hybrid slots
Documents are visible without loading a heavy PDF viewer.
Short product-page summaries link to the complete policy.
Keep commercial paths attached to the same technical context.
Only questions supported by structured product data are shown.
No. NI specifies zero PXI Express and hybrid slots. Module support is for 3U PXI and CompactPCI.
No. The PXI-1042Q range is 0 to 40 °C; the manual assigns 0 to 55 °C to the PXI-1042.
No. NI explicitly states that PXI-1042 and PXI-1042Q AC power supply shuttles are not interchangeable.
