National Instruments · PXI

PXI-1033

Name: PXI-1033
Brand: National Instruments

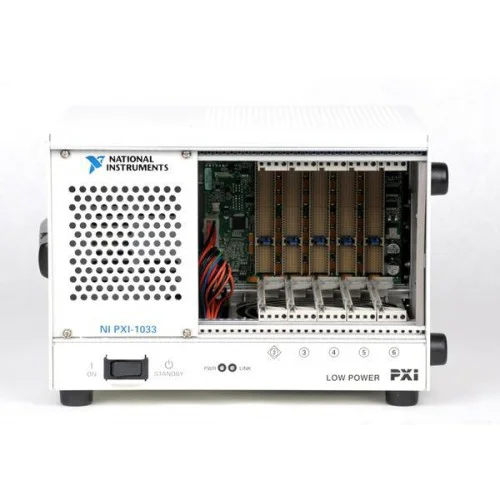

The NI PXI-1033 is a five-slot PXI chassis with integrated MXI-Express remote control for connection to an external PC.

ManufacturerNational Instruments

ModelPXI-1033

Part Number779760-01

Product Type5-slot PXI chassis with integrated remote controller

● Contact for Availability

Condition: confirmed per unit

Choose the outcome

Get Price & Availability Rent This Model Repair This Model

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Peripheral capacityFive peripheral slots

Host connectionIntegrated MXI-Express x1

Power sourceAC

PXI Express slotsNone

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Future AI receives the current page context and escalates uncertain price, stock, compatibility or service claims to a person.

Ask SOHO Assistant

Overview

Technical description without filler

Core content remains expanded and crawlable.

Designed for remote-control applications, the PXI-1033 links PXI instrumentation to an external PC through its built-in MXI-Express interface. NI identifies automotive, automated test and electronics as application areas.

The integrated interface eliminates the need for a separate chassis-side MXI controller card. A compatible host interface and MXI-Express cable are still required.

Five peripheral slots for PXI instrumentation.
Integrated MXI-Express interface for external-PC control.
Supports NI PCIe-8361, PCIe-8362 and ExpressCard-8360 host interfaces according to NI's connectivity table.

Verified specifications

Technical data

Only supported values belong in the table and schema.

Peripheral slots	5 slots
Maximum system bandwidth	132 MB/s
Operating temperature	0 to 50 °C
Power supply type	AC —
Estimated empty-chassis power consumption	52 W

Condition & included items

What the actual unit includes

Critical for used and surplus equipment.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Internal links mirror real engineering relationships.

National Instruments

Manufacturer

MXI-Express x1

External host connection

PXI-1033

PXI chassis with integrated remote interface

Host requirements

Compatible host interface and MXI-Express cable required.

Verify host-interface compatibility; a mechanically matching MXI connector does not establish supported connectivity.

Manuals & software

Technical resources

Documents are visible without loading a heavy PDF viewer.

PXI-1033 Official Product PageProduct Page · ni.com

Open →

PXI-1033 Dimensional DrawingsDimensional Drawings And CAD · ni.com

Open →

PXI-1033 Product CertificationsCertifications · ni.com

Open →

MXI-Express Host and Target CompatibilityTechnical resource

Open →

Connecting a PXI Chassis to an External PCTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Short product-page summaries link to the complete policy.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Keep commercial paths attached to the same technical context.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Only questions supported by structured product data are shown.

Does the PXI-1033 need a separate chassis-side remote controller?

No. Its MXI-Express interface is integrated. A compatible host interface and MXI-Express cable are required to connect it to a PC.

Can the PXI-1033 accept PXI Express modules?

NI lists no PXI Express or PXI Express hybrid slots for this chassis.

Which host interfaces does NI list for the PXI-1033?

NI lists the PCIe-8361, PCIe-8362 and ExpressCard-8360 as supported host interfaces. The PCI-8361 connection to the PXI-1033 is explicitly unsupported.
