PXI-1011

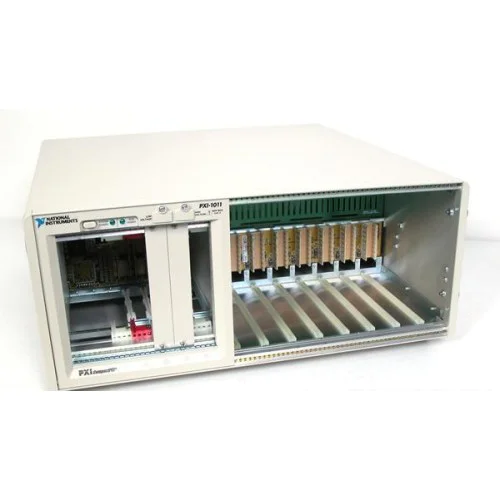

The National Instruments PXI-1011 integrates a 4-slot PXI backplane and an 8-slot SCXI backplane in one combination chassis. It supports systems combining PXI data acquisition with SCXI signal conditioning or switching.

ManufacturerNational Instruments

ModelPXI-1011

Product TypePXI/SCXI combination chassis

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-1011

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PXI subsystem4-slot backplane

SCXI subsystem8-slot backplane

SCXI control locationRightmost PXI slot for supported M Series PXI modules

Rack installationOptional rack-mount kit supports flush or recessed mounting

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-1011 combines two modular instrumentation platforms: a four-slot PXI subsystem and an eight-slot SCXI subsystem. This architecture brings PXI acquisition hardware and SCXI modules together within a single chassis.

NI documents SCXI control using an M Series PXI module installed in the rightmost PXI slot, without external cables or adapters for that internal connection. The chassis also has an integrated backplane serving all eight SCXI switch positions for documented multimodule scanning configurations.

Integrated four-slot PXI and eight-slot SCXI backplanes.
Internal SCXI control connection for supported M Series PXI modules in the rightmost PXI slot.
Integrated switching backplane connects all eight SCXI switch positions.
Optional rack-mount kit provides flush mounting or five recessed mounting positions.
