National Instruments PCMCIA-GPIB GPIB instrument control interface

1 image: Click to enlarge

National Instruments · PCMCIA / PC Card Type II

PCMCIA-GPIB

Name: PCMCIA-GPIB
Brand: National Instruments

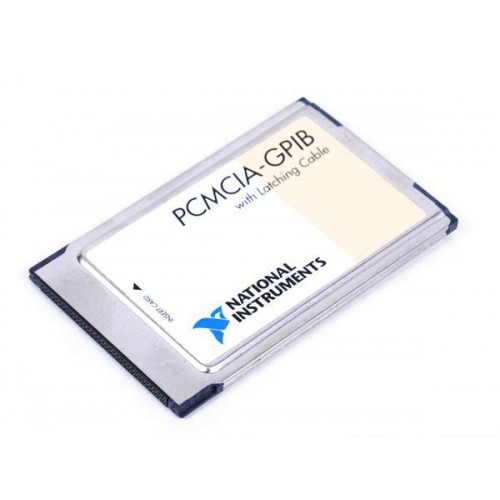

The National Instruments PCMCIA-GPIB is a PC Card Type II interface for connecting a computer to GPIB instruments. It supports standard GPIB and high-speed HS488 handshaking.

ManufacturerNational Instruments

ModelPCMCIA-GPIB

Product TypeGPIB instrument control interface

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCMCIA-GPIB

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host interfacePCMCIA Type II

Instrument interfaceGPIB / IEEE 488

Standard-handshake maximum throughput1.3 MB/s

High-speed-handshake maximum throughput2.2 MB/s
