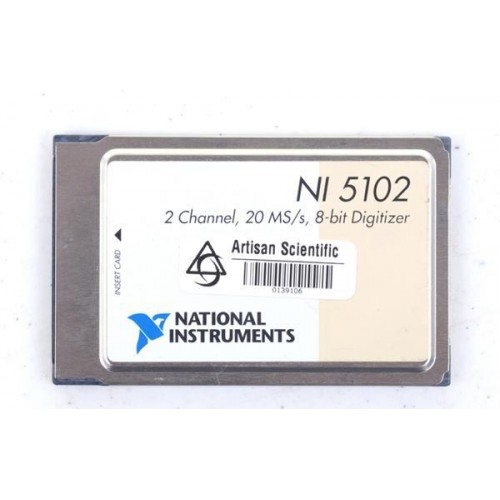

The NI PCMCIA-5102 is a two-channel, 8-bit digitizer with simultaneous sampling.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This is the PCMCIA member of the NI 5102 family, not the PCI, PXI, or USB version.
Software support is version-specific. NI-SCOPE 15.0 lists this model as supported under Windows XP, but not under the listed Windows Vista, 7, 8.0, or 8.1 configurations.
Verified product specifications.
| Analog inputs | 2 single-ended, simultaneously sampled |
|---|---|
| ADC resolution | 8 bits |
| Input ranges without probe attenuation | ±5 V, ±1 V, ±0.25 V, ±50 mV |
| PCMCIA input impedance | 1 MΩ ±1% parallel with 40 pF ±10 pF |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
Digitizer
NI-SCOPE 16.1 lists PCMCIA-5102 as unsupported under its listed Windows configurations.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. Its supported-hardware table lists Windows XP support for NI PCMCIA/USB/AT-5102. This does not establish support for other driver releases.
No. NI-SCOPE 16.1 lists PCI/PXI-5102 separately from PCMCIA/USB/AT-5102, with different support results.
