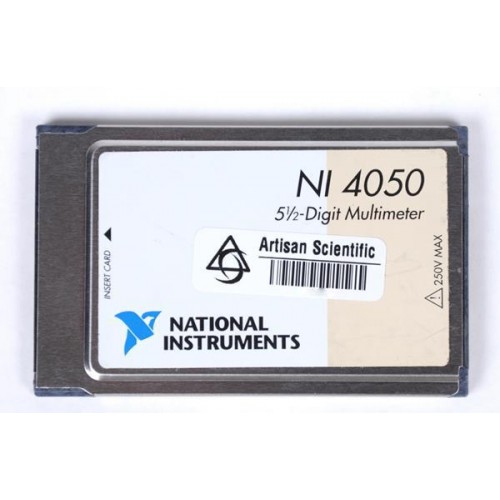

The NI PCMCIA-4050 is a portable 5½-digit digital multimeter in a Type II PC Card format.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCMCIA-4050 combines voltage measurement, two-wire resistance measurement, and diode testing in a computer-connected card.
Software selection is important for this legacy device. NI-DMM 15.0 lists PCMCIA-4050 support only under Windows XP 32-bit; NI-DMM 19.0 removed support.
Verified product specifications.
| Voltage ranges | 20 mV, 200 mV, 2 V, 25 V, 250 V |
|---|---|
| AC bandwidth | 20 Hz to 25 kHz |
| Resistance ranges | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ; extended measurements above 2 MΩ |
| Warm-up | 30 min |
| Power requirement | +5 VDC, 45 mA operational |
| Operating temperature | 0 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
Digital multimeter
NI-DMM 15.0: Windows XP 32-bit only for this model.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. Current measurements require an external current shunt. NI documents the CSM-200mA and CSM-10A for use with this model.
No. NI-DMM 19.0 explicitly removed support for the DAQCard-4050, also identified as PCMCIA-4050.
NI specifies the P4-BJ2 cable.
