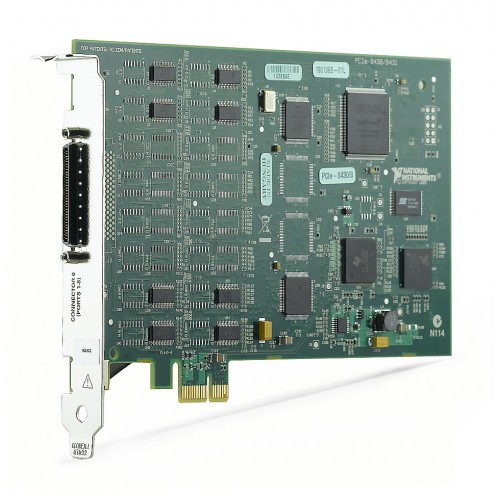

NI (National Instruments) PCIe-8430/8 PCI Express, 8-Port, RS232 Serial Interface Device

1 image: Click to enlarge

NI (National Instruments) · PCI Express

PCIe-8430/8

The NI PCIe-8430/8 is an eight-channel RS-232 serial interface for PCI Express systems. It provides non-isolated serial communication with DMA transfers and standard COM-port operation.

ManufacturerNI (National Instruments)

ModelPCIe-8430/8

Part Number780591-01

Product TypePCI Express, 8-Port, RS232 Serial Interface Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIe-8430/8

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectionPCI Express

Isolation TypeNone

Number of Serial Channels8

Supported Serial ProtocolsRS232

Front Connection TypeSCSI Type

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCIe-8430/8, NI part number 780591-01, adds eight RS-232 serial channels to a PCI Express system. The interface is non-isolated and uses a front connection designated by NI as SCSI Type.

The interface supports DMA transfers, multithreading and multiprocessor operation. Its serial channels appear as standard COM ports for programs that use serial communications.

Eight RS-232 serial communication channels.
PCI Express host bus connection.
DMA transfers with multithreading and multiprocessor support.
Standard COM-port presentation for serial communication programs.
SCSI Type front connection for serial breakout cabling.

Verified specifications

Technical data

Verified product specifications.

Bus Connection	PCI Express
Isolation Type	None
Number of Serial Channels	8
Supported Serial Protocols	RS232
Front Connection Type	SCSI Type
NI part numbers	780591-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI Express

Bus Connection

PCIe-8430/8

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What serial protocol does the PCIe-8430/8 support?

The PCIe-8430/8 supports RS-232 on eight serial channels.

What host interface does the PCIe-8430/8 use?

It uses a PCI Express bus connection.

Are the serial channels isolated?

No. NI lists the isolation type as None.

Does the SCSI Type front connector mean this is a SCSI interface?

No. SCSI Type is the front connection designation. The supported serial communication protocol is RS-232.

How do programs access the serial channels?

The interface presents its channels as standard COM ports for programs that use serial communications. Confirm driver and operating-system support for your host system.
