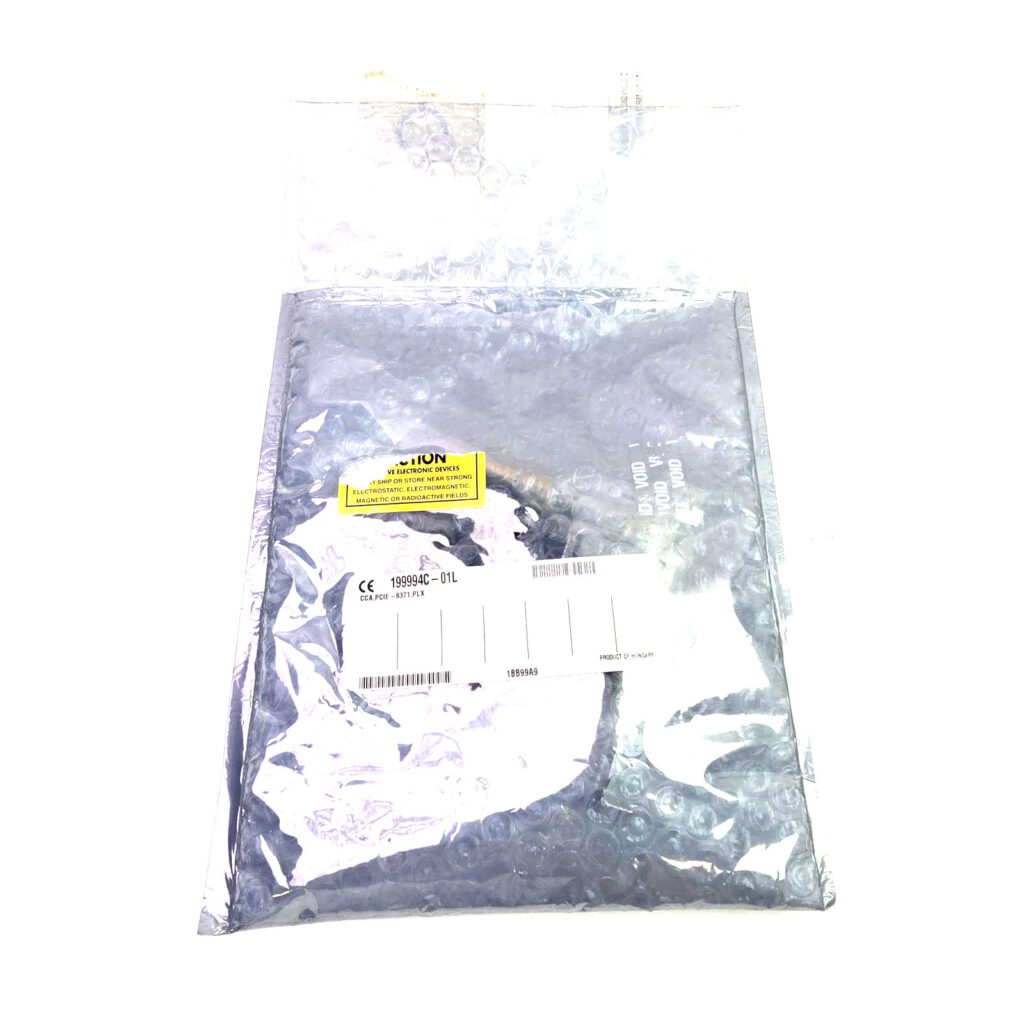

National Instruments PCIE-8371 product image 1
National Instruments PCIE-8371 product image 1 additional viewNational Instruments PCIE-8371 product image 1 additional viewNational Instruments PCIE-8371 product image 1 additional viewNational Instruments PCIE-8371 product image 1 additional viewNational Instruments PCIE-8371 product image 1 additional view
8 images: additional views below.Click to enlarge
National Instruments · PXI Express remote control

PCIE-8371

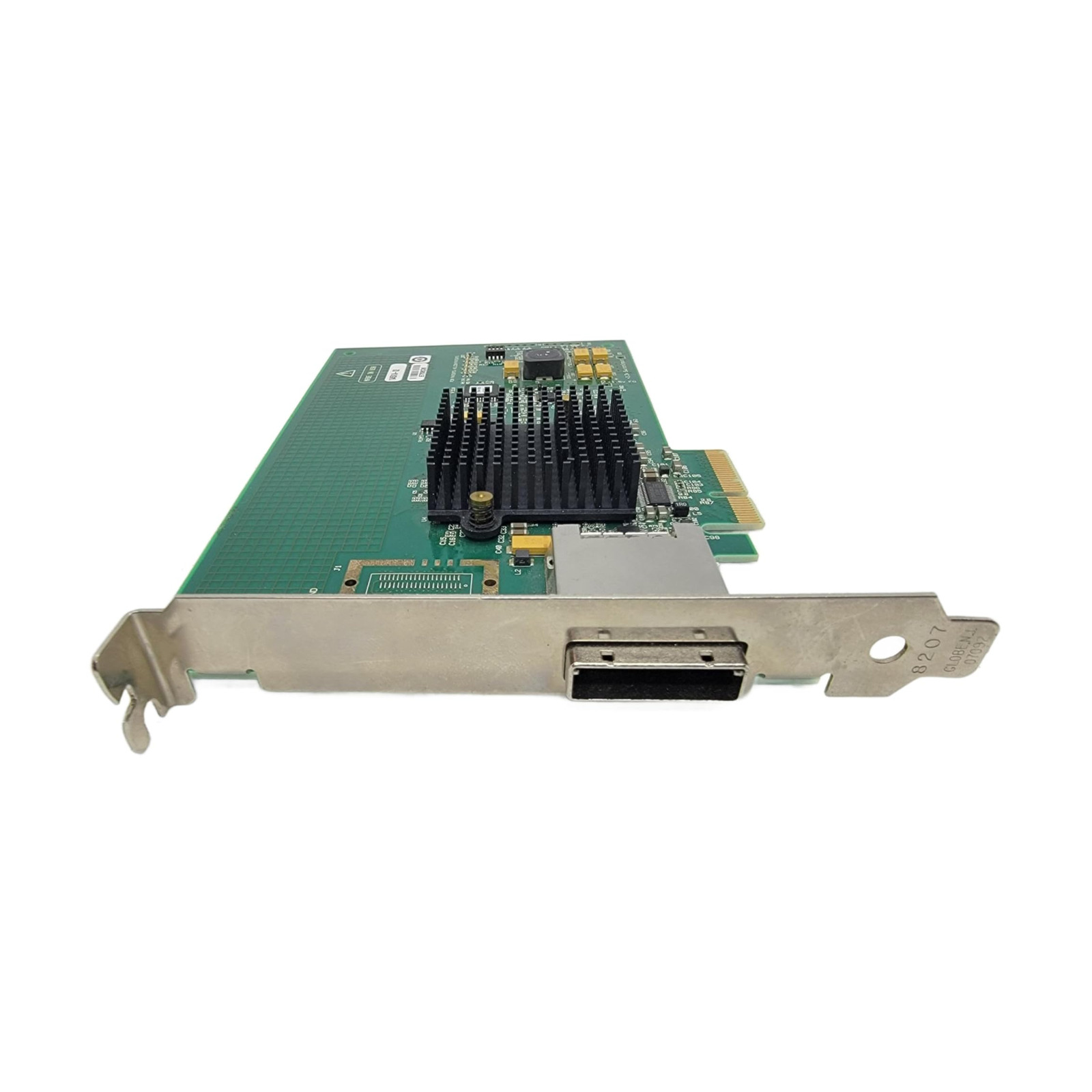

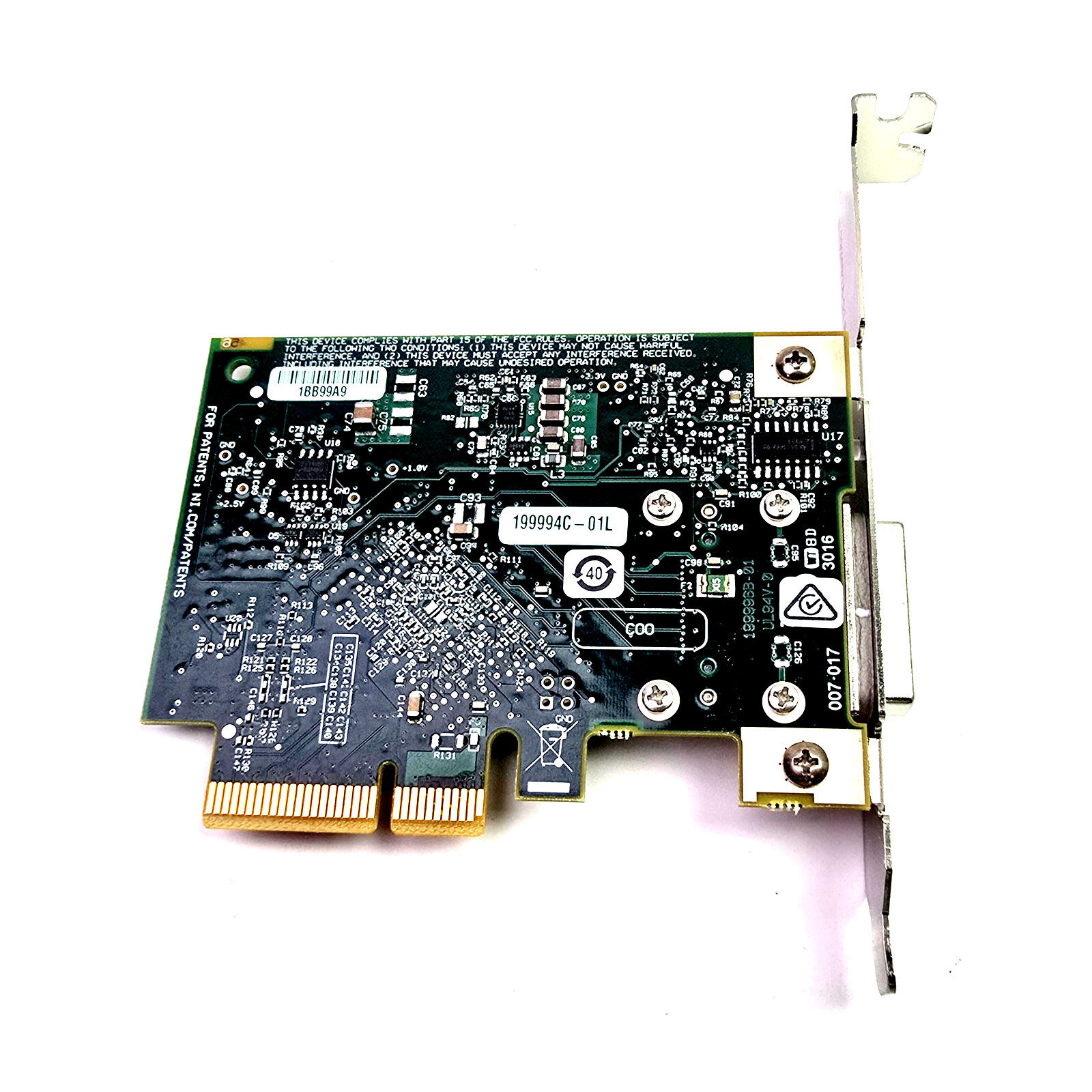

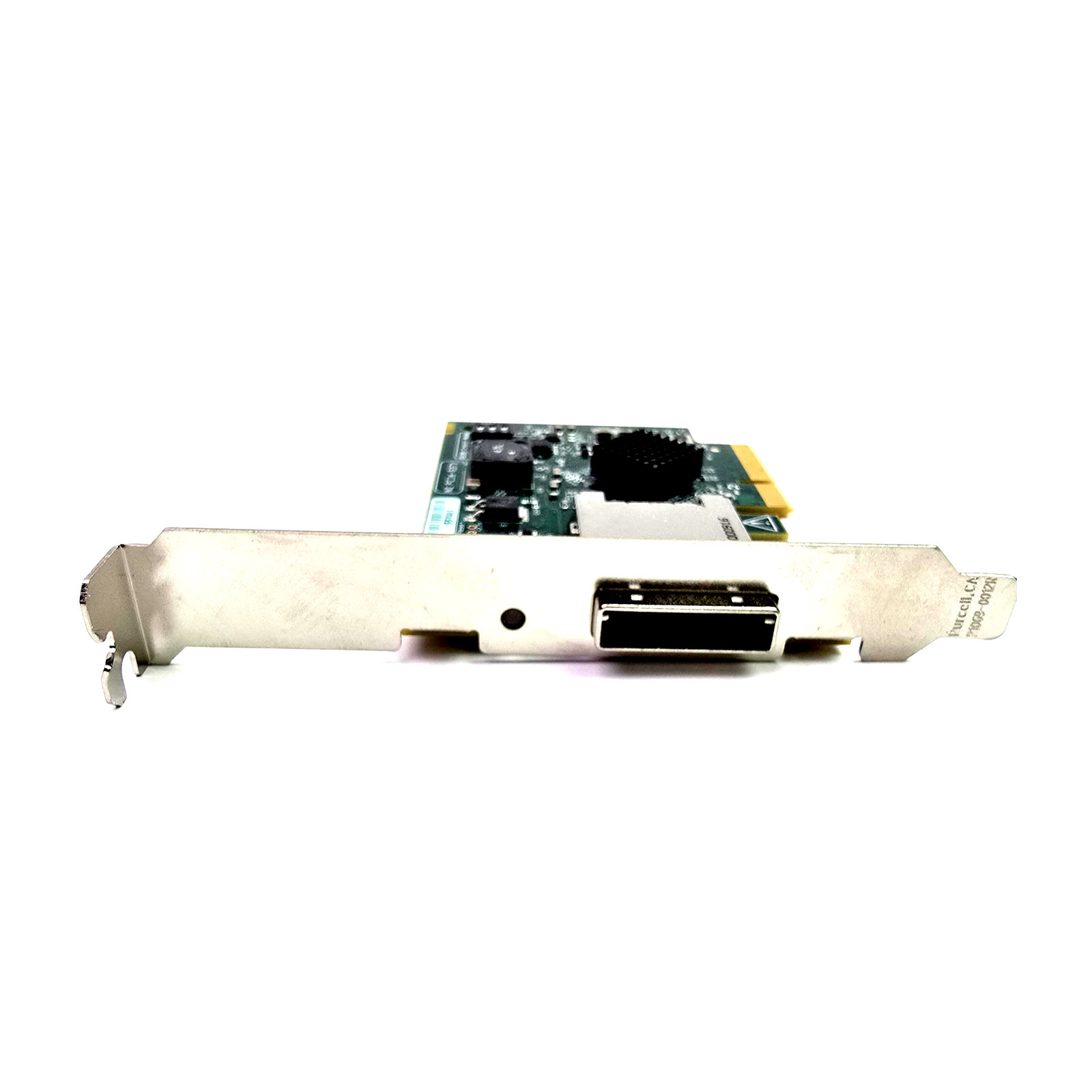

The National Instruments PCIe-8371 is a single-port PCI Express host interface for remote control of PXI Express systems. It connects a host computer to a PXIe-8370 remote control module over a copper MXI-Express x4 cable.

ManufacturerNational Instruments
ModelPCIE-8371
Part Number779723-01
Product TypePCI Express MXI-Express host interface board
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIE-8371

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host interfacePCI Express x4 Gen1
MXI ports1 copper MXI-Express x4 port
PXI Express targetPXIe-8370 remote control module
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Installed in a host computer, the PCIe-8371 provides the host side of a cabled MXI-Express connection. The link is transparent to applications and drivers, allowing the computer to access connected PXI modules as PCI devices without additional link-specific programming.

A complete PXI Express connection requires a suitable host computer, an expansion chassis with the appropriate target board, and an MXI-Express x4 copper cable. NI's setup guide identifies the PXIe-8370 as a supported chassis-side target for the PCIe-8371.

  • Extends a host computer's PCI Express connection to an external PXI Express system.
  • Single copper MXI-Express x4 connection.
  • Software-transparent link requires no additional link-specific programming.
  • Supports connection to a PXIe-8370 chassis-side remote control module.
Verified specifications

Technical data

Verified product specifications.

Manufacturer ordering part number779723-01
Host busPCI Express x4 Gen1
MXI communication levelMXI-Express x4
Number of MXI ports1
Supported cable typeCopper
Operating temperature range0 to 55 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Host PC with PCI Express x4 or wider slot

Host system

PCIe-8371

MXI-Express x4 host board

MXI-Express x4 copper cable

External connection

Confirm the host slot, target module and cable before configuring the system; do not assume these components are included.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCIe-8371 Product InformationOfficial Product Page · ni.com
Open →
Set Up Your MXI-Express x4 SystemSetup Guide · download.ni.com
Open →
PCIe-8371 Features: Getting StartedUser Manual Section · ni.com
Open →
PCIe-8371 Dimensional DrawingsDimensional Drawings And CAD Resources · ni.com
Open →
MXI-Express Hardware and BIOS Compatibility Software MatrixTechnical resource
Open →
Mitigating MXI-Express PC IncompatibilityTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which chassis-side module connects to the PCIe-8371?

NI documents a copper MXI-Express x4 connection from the PCIe-8371 to the PXIe-8370 for PXI Express chassis control.

Does the MXI-Express connection require custom programming?

No additional programming is required for the link itself because it is transparent to applications and drivers. Follow NI's software installation and configuration instructions for full PXI Express functionality.
