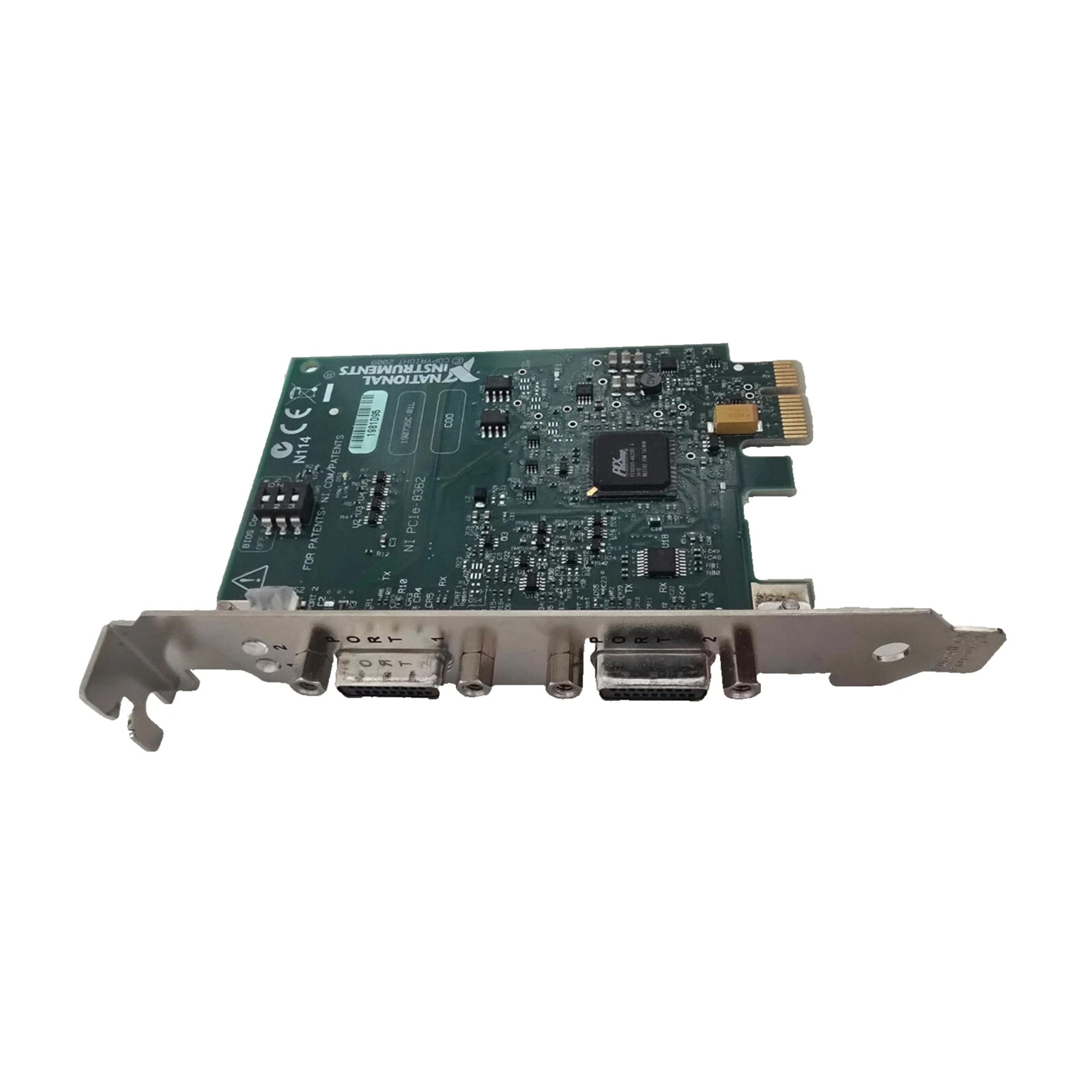

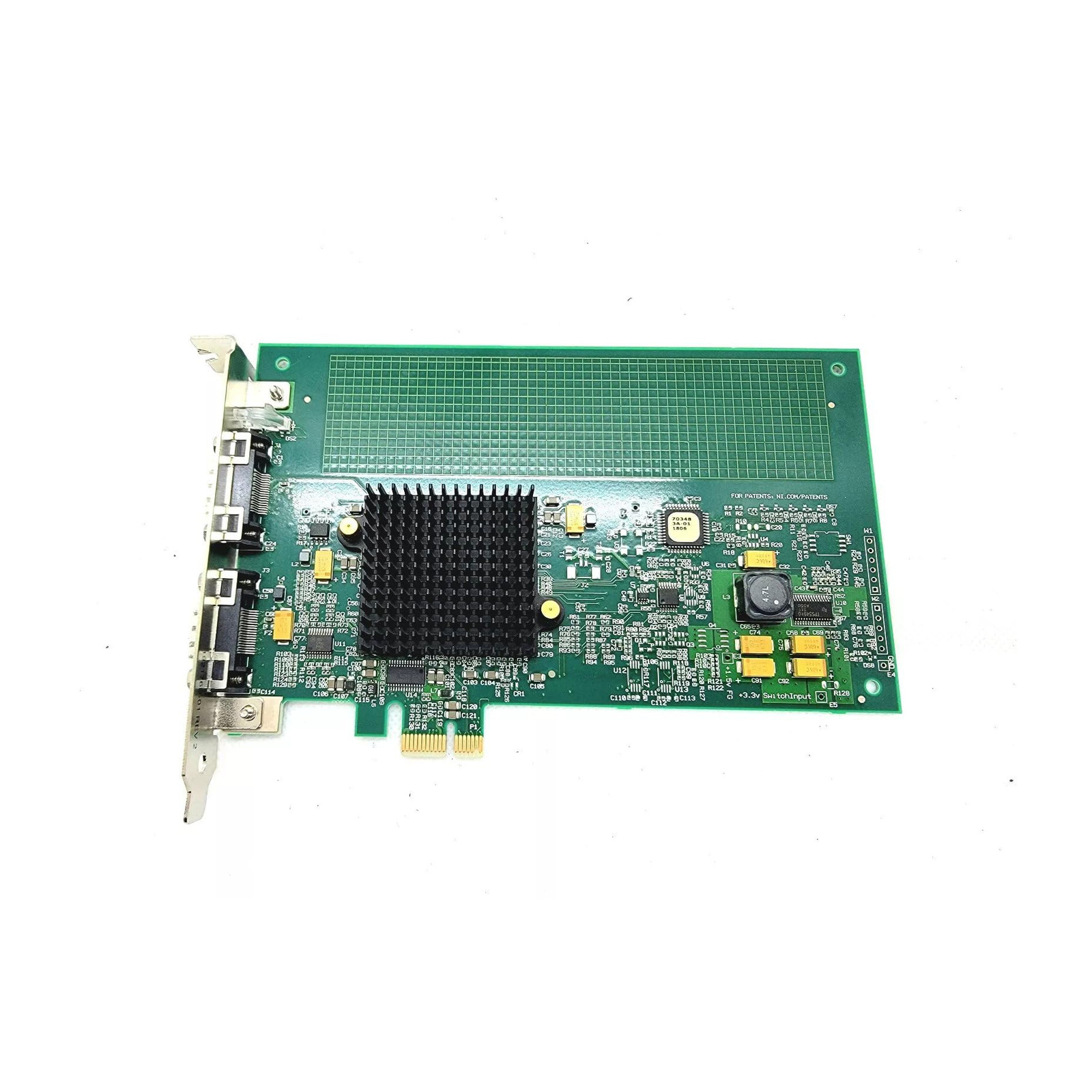

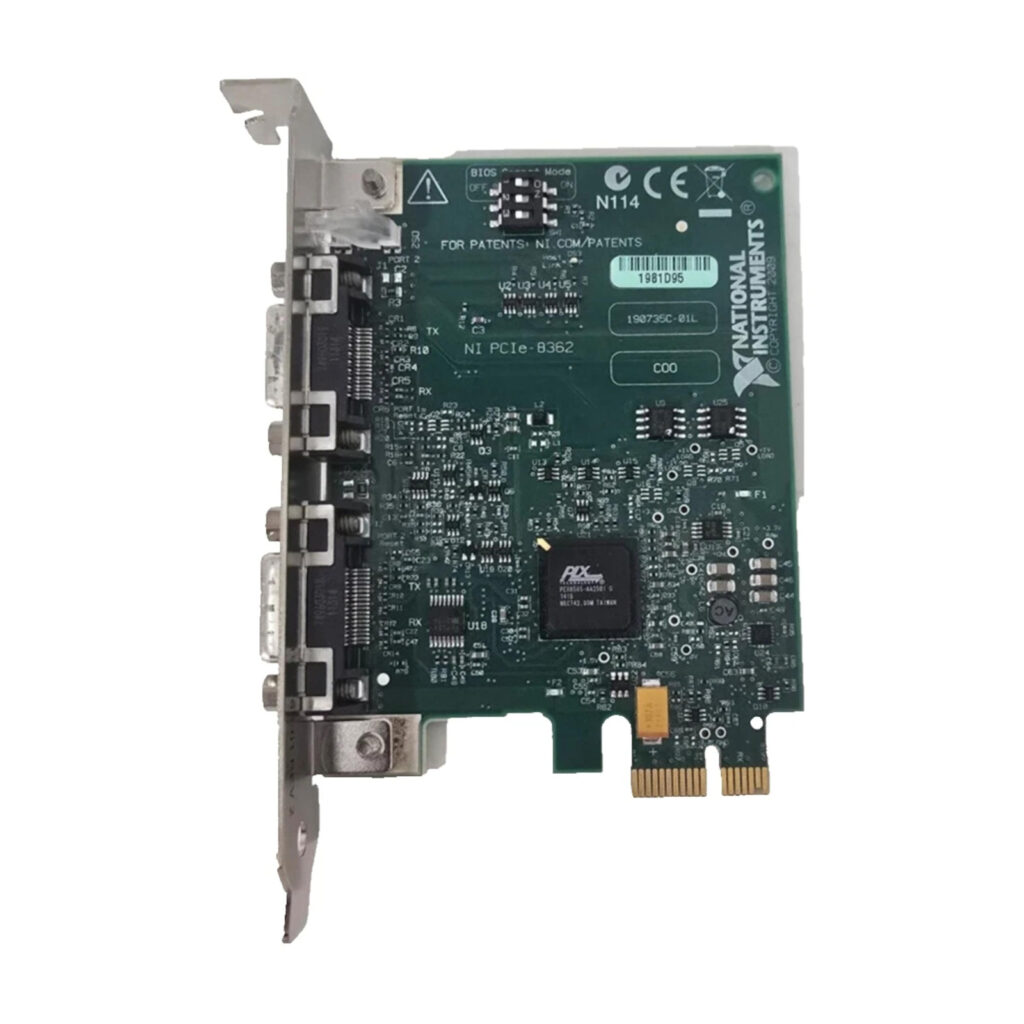

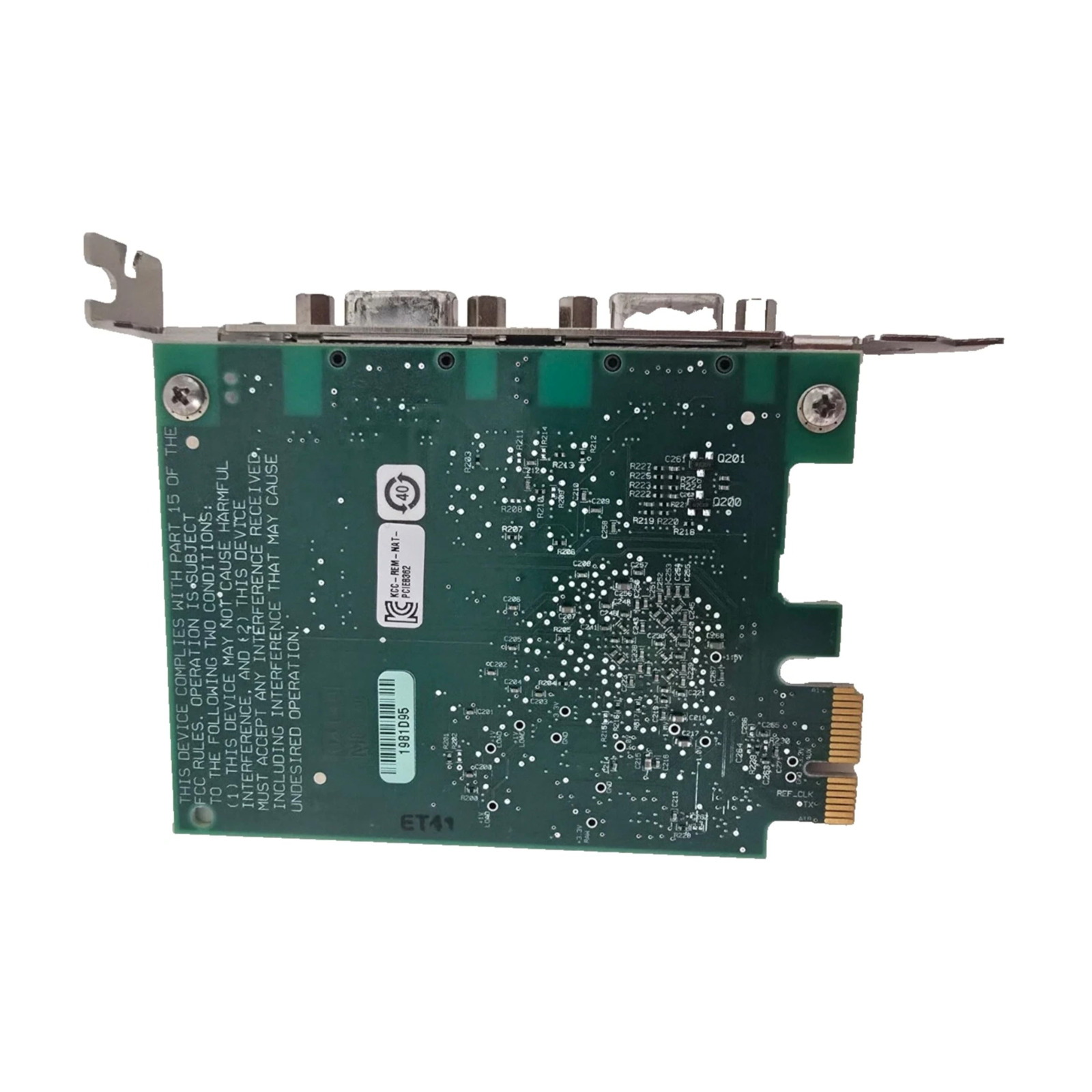

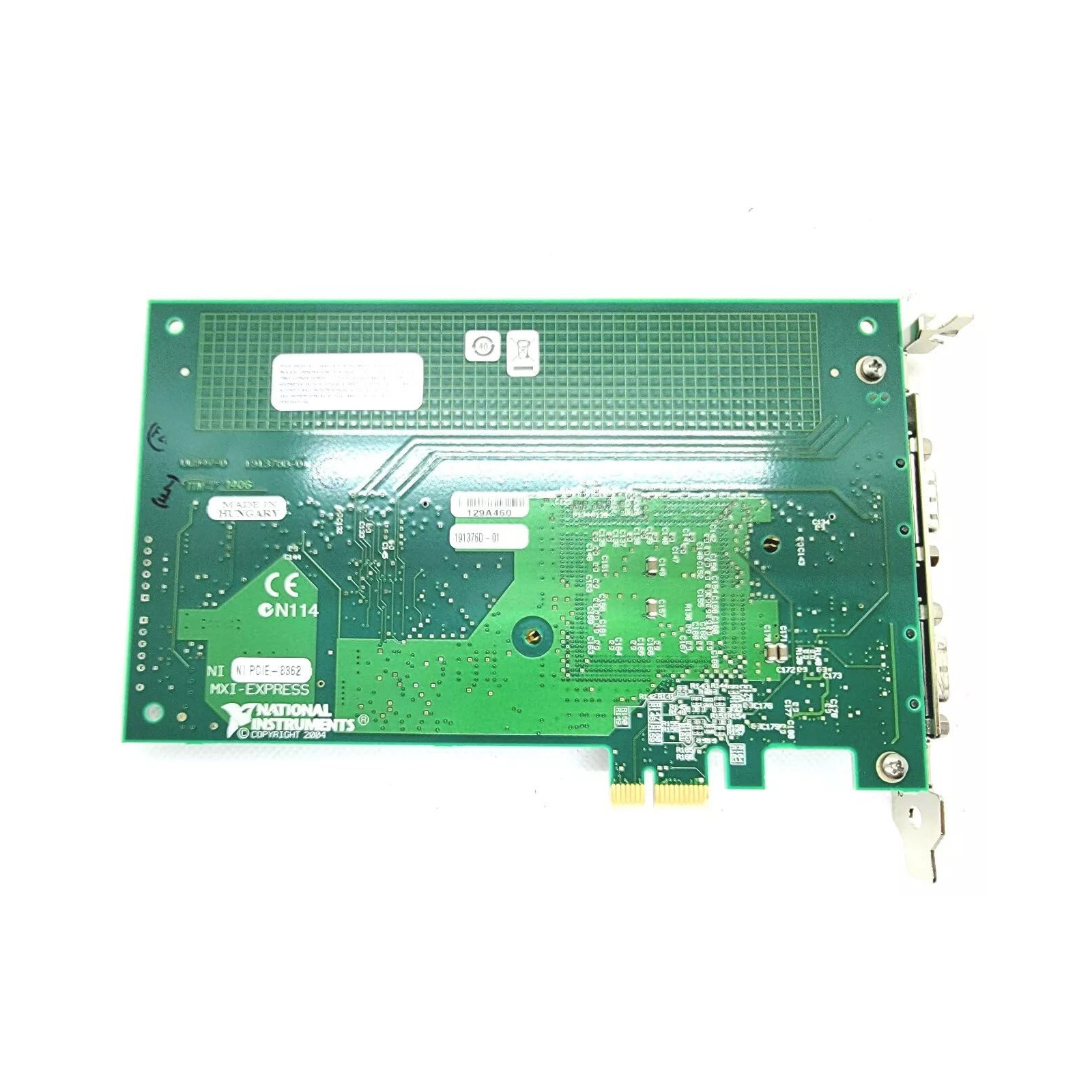

National Instruments PCIE-8362 product image 1

National Instruments PCIE-8362 product image 1 additional view

7 images: additional views below.Click to enlarge

National Instruments · PXI / PXI Express remote control

PCIE-8362

The NI PCIe-8362 is a desktop PCI Express host card with two MXI-Express connections. It enables remote control of supported PXI and PXI Express chassis, including two-chassis star configurations.

ManufacturerNational Instruments

ModelPCIE-8362

Part Number779502-01

Product TypeDual-port MXI-Express host interface card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIE-8362

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host slotPCI Express x1

External portsTwo MXI-Express x1

TopologyTwo-target star connection

Manufacturer part number779502-01

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCIe-8362 provides the computer-side interface in an MXI-Express remote-control system. NI documents configurations using a PXI-8360 in a PXI chassis or a PXIe-8360 in a PXI Express chassis, connected by MXI-Express x1 copper cable.

Its two downstream connections allow two chassis to connect directly to the desktop host in parallel, rather than routing the second chassis through the first.

Two MXI-Express x1 ports support simultaneous connections to two supported targets.
Installs in a desktop PC PCI Express x1 slot.
Supports star-topology expansion for multichassis remote-control systems.

Verified specifications

Technical data

Verified product specifications.

Host bus	PCI Express x1
MXI-Express port count	2 ports
External link type	MXI-Express x1
Documented copper cable lengths	1, 3, 7 m

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

MXI-Express x1

Remote-control interconnect family

PCIe-8362

Desktop host interface

PXI chassis interface

NI PXI-8360

Confirm the target interface, cable type, host BIOS resources, and hardware revision before configuring the system.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

MXI-Express x1 Series User ManualUser Manual · docs-be.ni.com

Open →

MXI Controllers for PXI System ExpansionData Sheet · ni.com

Open →

MXI-Express Hardware and BIOS Compatibility Software MatrixTechnical resource

Open →

Mitigating MXI-Express PC IncompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the PCIe-8362 connect to two chassis?

Yes. Its two MXI-Express connections support two supported chassis connected directly to the desktop PC in a star topology.

Does an MXI-Express x4 connection work with this x1 interface?

No. NI states that MXI-Express x4 cards are not compatible with MXI-Express x1 connections.

What should be checked before using BIOS Compatibility Software?

Check the board part number and revision. NI lists PCIe-8362 board family 190735x-01L revision B and later, and 191376x-01 revision E and later, with minimum BIOS Compatibility Software version 1.5.
