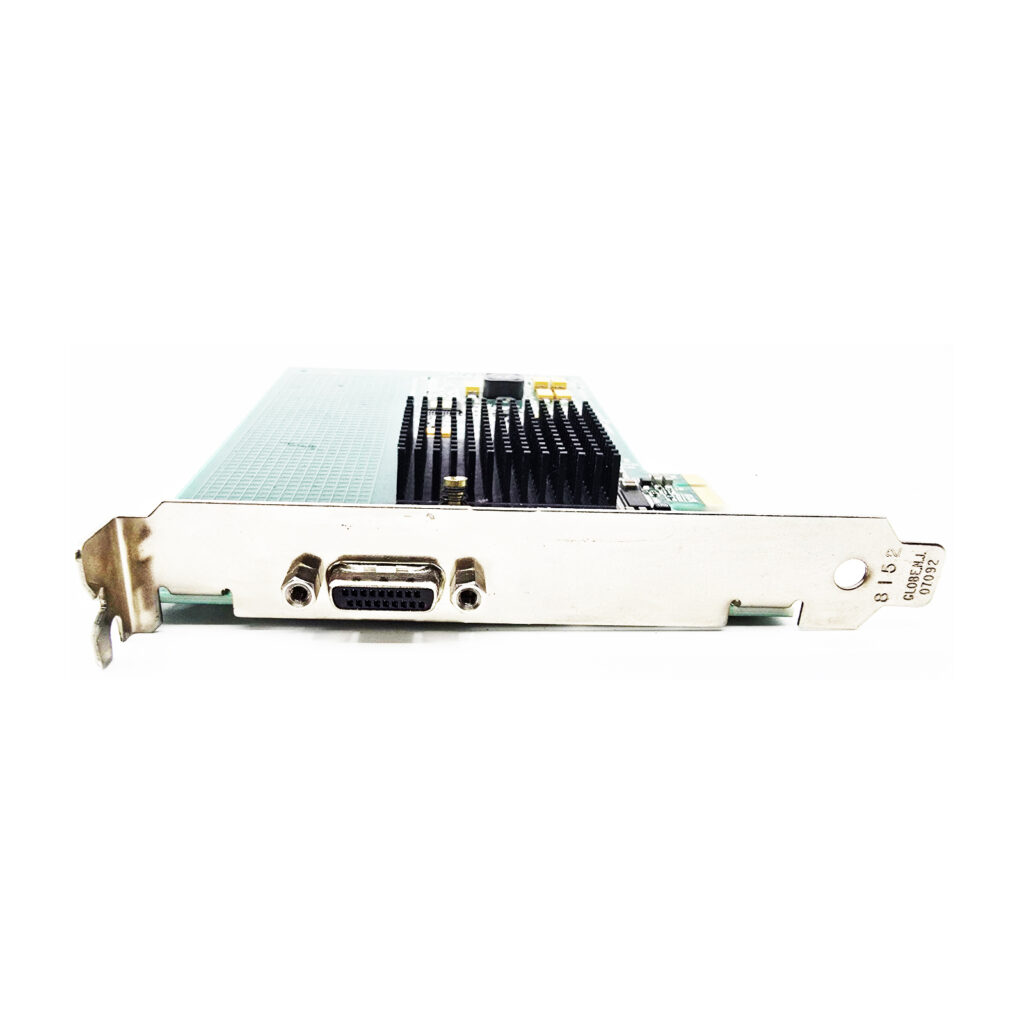

National Instruments PCIE-8361 product image 1
National Instruments PCIE-8361 product image 1 additional viewNational Instruments PCIE-8361 product image 1 additional viewNational Instruments PCIE-8361 product image 1 additional view
4 images: additional views below.Click to enlarge
National Instruments · PCI Express host / PXI remote control

PCIE-8361

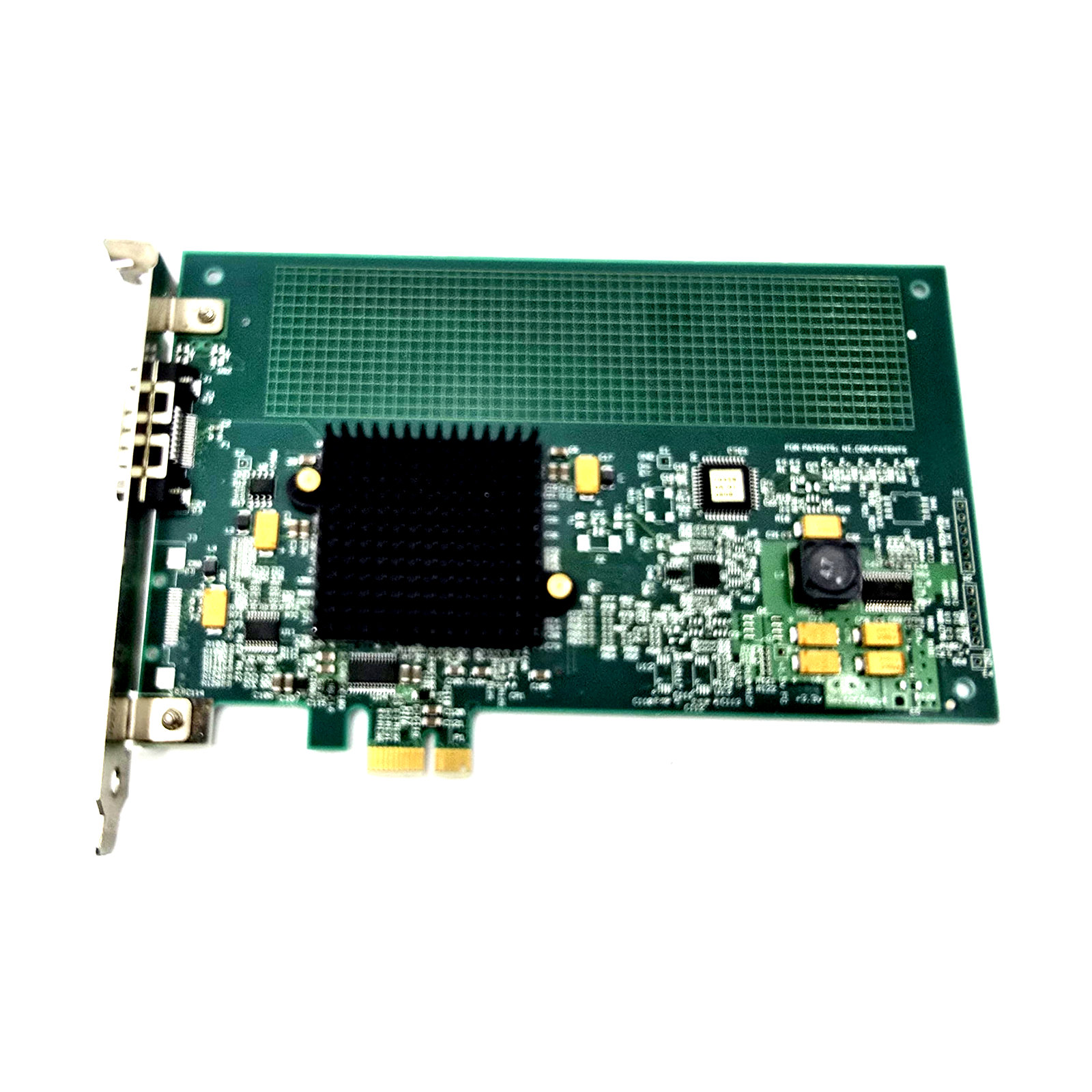

The NI PCIe-8361 is a single-port PCI Express host interface for controlling remote instrumentation through a copper MXI-Express x1 connection.

ManufacturerNational Instruments
ModelPCIE-8361
Part Number779504-01
Product TypeMXI-Express host interface card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIE-8361

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Host interfacePCI Express x1, Gen 1
MXI ports1
Cable mediumCopper
Manufacturer part number779504-01
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Installed in the host computer rather than the instrumentation chassis, the PCIe-8361 extends the computer's PCI Express connection to a remote system. NI describes the link as transparent to applications and device drivers.

NI lists connections to the PXI-8360 for PXI systems and the PXIe-8360 for PXI Express systems. Select the chassis-side interface and MXI cable for the intended system rather than relying on connector appearance alone.

  • Single copper MXI-Express x1 port for remote system connection.
  • PCI Express host connection rather than a conventional PCI host connection.
  • Supports physical separation of the host computer and instrumentation chassis.
Verified specifications

Technical data

Verified product specifications.

Host busPCI Express x1, Gen 1
MXI communication levelMXI-Express x1
Number of MXI ports1
Supported cable mediumCopper
Operating temperature0 to 55 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI Express / MXI-Express x1

Host bus and remote interconnect

PCIe-8361

Single-port host interface

PXI chassis connection

PXI-8360 chassis-side interface

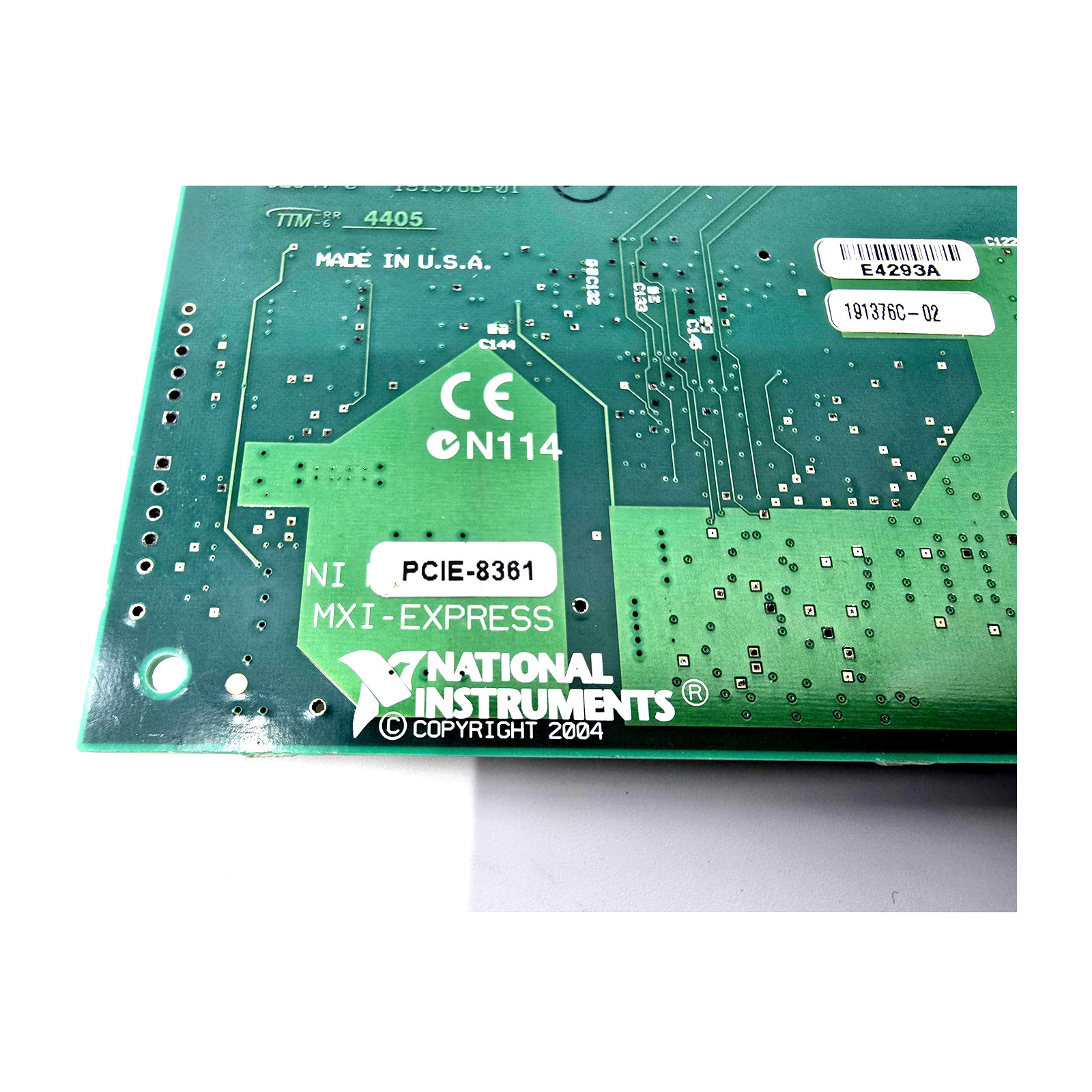

Match assembly-specific specifications to the board's printed assembly number; NI documents multiple PCIe-8361 hardware generations.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PCIe-8361 Product PageProduct Page · ni.com
Open →
MXI-Express x1 Series User ManualUser Manual · docs-be.ni.com
Open →
NI MXI Interface Compatibility TableTechnical resource
Open →
MXI-Express BIOS Compatibility Software Hardware RequirementsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PCIe-8361 installed in the computer or the PXI chassis?

It is the host-side PCI Express card installed in the computer. The remote chassis uses a corresponding chassis-side MXI interface.

How does the PCIe-8361 differ from the PCIe-8362?

NI lists one copper MXI-Express x1 port for the PCIe-8361 and two for the PCIe-8362. Both use a PCI Express x1 host interface.

Does software transparency mean no system software is needed?

No. NI describes the bridge as transparent to device drivers, but specifies PXI Platform Services for full PXI/PXI Express functionality, including chassis identification, trigger routing and slot detection.

Can the external connector be treated as a generic cabled PCI Express port?

No. NI states that the MXI-Express x1 external port is not compatible with the PCI-SIG cabled PCI Express specification.
