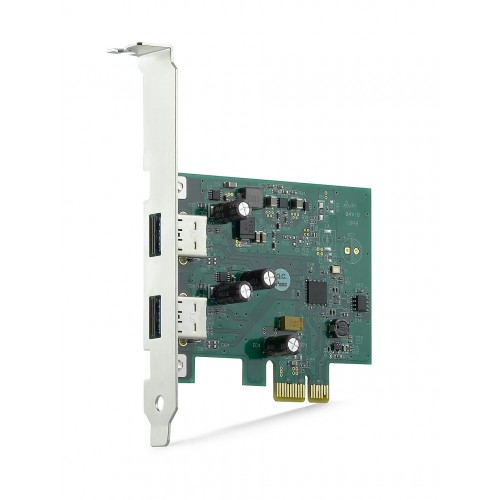

NI (National Instruments) PCIe-8242 2-Port, USB3 Vision Frame Grabber Device
1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

PCIe-8242

The NI PCIe-8242 is a two-port USB3 Vision frame grabber for computer-based camera acquisition. It connects through PCI Express and supports two cameras.

ManufacturerNI (National Instruments)
ModelPCIe-8242
Part Number782889-01
Product Type2-Port, USB3 Vision Frame Grabber Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIe-8242

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Camera Interface TypeUSB3 Vision
Number of Camera Input Ports2
ReconfigurableNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCIe-8242 provides a USB3 Vision camera interface in a computer-based PCI Express system. Its two camera input ports support two cameras.

The device is not reconfigurable and has no TTL inputs, quadrature encoder inputs, or isolated digital inputs. These limits are important when planning a system that also requires external triggering or encoder connections.

  • USB3 Vision camera interface.
  • Two camera input ports with support for two cameras.
  • PCI Express bus connection for a computer-based system.
  • Non-reconfigurable device with no TTL, quadrature encoder, or isolated digital inputs.
Verified specifications

Technical data

Verified product specifications.

Camera Interface TypeUSB3 Vision
Number of Camera Input Ports2
ReconfigurableNo
Supported Hardware PlatformComputer-Based Device
Bus ConnectionPCI Express
Number of Cameras Supported2
NI part numbers782889-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

PCIe-8242

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
NI PCIe-8242 Getting Started GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What type of device is the PCIe-8242?

It is an NI two-port USB3 Vision frame grabber with a PCI Express host connection.

How many cameras does the PCIe-8242 support?

It supports two cameras through two camera input ports.

Does the PCIe-8242 provide encoder or digital inputs?

The verified specifications list zero quadrature encoder inputs, zero TTL inputs, and zero isolated digital inputs.

Is the PCIe-8242 reconfigurable?

No. The PCIe-8242 is listed as non-reconfigurable.

What NI part number is associated with this model?

The supplied verified catalog data identifies NI part number 782889-01.
