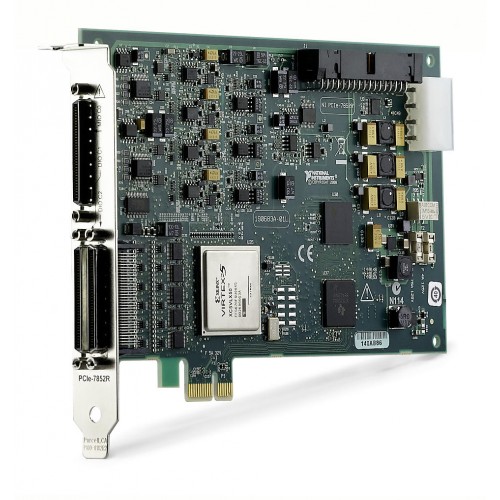

National Instruments PCIe-7852 Multifunction reconfigurable I/O device

1 image: Click to enlarge

National Instruments · PCI Express

PCIe-7852

Name: PCIe-7852
Brand: National Instruments

The NI PCIe-7852 is a PCI Express multifunction reconfigurable I/O device with a Virtex-5 LX50 FPGA, eight analog inputs, eight analog outputs and 96 bidirectional digital lines.

ManufacturerNational Instruments

ModelPCIe-7852

Part Number781103-01

Product TypeMultifunction reconfigurable I/O device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIe-7852

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

FPGAVirtex-5 LX50

Analog inputs8 channels; 750 kS/s per channel

Analog outputs8 channels

Digital I/O96 bidirectional lines

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCIe-7852 places analog and digital I/O under user-defined FPGA control. The LabVIEW FPGA Module enables custom hardware timing and signal-processing functionality.

A dedicated ADC for each input supports independent channel timing and triggering, including multirate acquisition.

User-programmable FPGA for onboard processing and I/O control.
16-bit analog input conversion with DIFF, RSE and NRSE input modes; mode selection applies to all channels.
One multifunction I/O connector and two digital I/O connectors.

Verified specifications

Technical data

Verified product specifications.

Bus interface	PCI Express
FPGA	Virtex-5 LX50
Analog input channels	8 channels
Maximum analog input sampling rate per channel	750 kS/s
Analog input resolution	16 bits
Analog input voltage range	-10 to +10 V
Analog output channels	8 channels
Analog output resolution	16 bits
Analog output voltage range	-10 to +10 V
Bidirectional digital channels	96 channels

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI Express

Host interface

PCIe-7852

R Series FPGA-based multifunction I/O

FPGA development

LabVIEW FPGA Module for creating custom FPGA VIs.

Check the model-specific connector pinout and digital electrical limits before wiring.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PCIe-7852 Official Product PageProduct Page · ni.com

Open →

Multifunction Reconfigurable I/O SpecificationsSpecifications · docs-be.ni.com

Open →

Multifunction Reconfigurable I/O User ManualUser Manual · docs-be.ni.com

Open →

NI 78xx R Series Cable and Accessory CompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is PCIe-7852 also identified as PCIe-7852R?

Yes. NI uses PCIe-7852 as the product-page model and PCIe-7852R in the description for part number 781103-01.

Is 750 kS/s shared across the analog inputs?

No. NI specifies a maximum sampling rate of 750 kS/s per channel.

Does the digital I/O directly generate 5 V CMOS levels?

The manual specifies an external pull-up resistor to 5 V when interfacing the 3.3 V digital output to 5 V CMOS devices. Follow the documented electrical limits.
