PCIe-6612

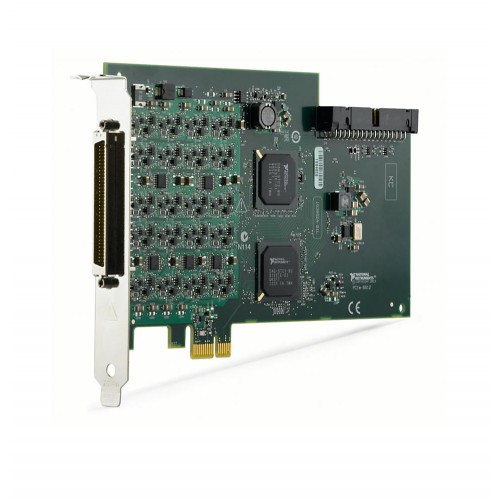

1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

PCIe-6612

The NI PCIe-6612, part number 782351-01, is a PCI Express counter/timer device with 8 counters/timers and 40 bidirectional digital channels.

ManufacturerNI (National Instruments)
ModelPCIe-6612
Part Number782351-01
Product TypePCI Express, 5 V, 8-Channel Counter/Timer Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIe-6612

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPCI Express
Bidirectional Digital Channels40
Logic Levels And Range5 V, -3.0V - 8.0V
Number of Counters/Timers8
Digital I/O Logic Levels5 V
Measure Frequency0 MHz to 80 MHz
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCIe-6612 is a computer-based counter/timer device for PCI Express systems. It combines 8 counters/timers with 40 bidirectional digital channels and 5 V digital I/O logic levels.

Its functions include encoder position measurement, event counting, period measurement, pulse-width measurement, pulse generation, pulse-train generation and frequency measurement.

  • 8 counters/timers for counting and timing operations.
  • 40 bidirectional digital channels with 5 V logic levels.
  • Frequency measurement from 0 MHz to 80 MHz.
  • Digital debouncing filters and TTL/CMOS-compatible digital I/O.
  • Supports three simultaneous high-speed DMA transfers.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPCI Express
Number of Bidirectional Digital Channels40
Logic Levels And Range5 V, -3.0V - 8.0V
Number of Counters/Timers8
Digital I/O Logic Levels5 V
Measure Frequency0 MHz to 80 MHz
Front Connection TypeSCSI Type
Operating Temperature Range0 °C to 55 °C
Supported Hardware PlatformComputer-Based Device
NI part numbers782351-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

PCIe-6612

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
