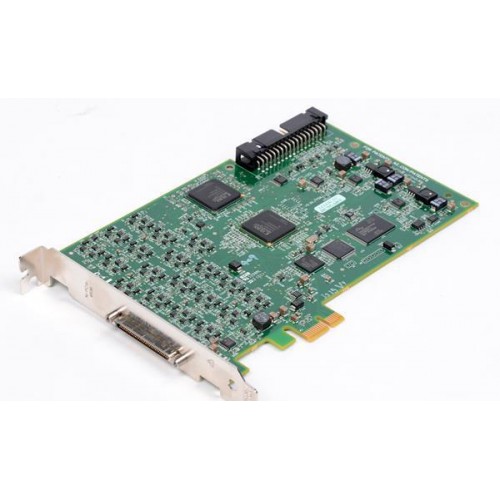

The National Instruments PCIe-6536 is a PCI Express digital I/O device with a sample clock rate up to 25 MHz. It supports digital pattern acquisition and generation.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCIe-6536 belongs to the NI 6535/6536/6537 digital I/O family. Its channel electronics use selectable voltage buffers for digital acquisition and generation.
Verified product specifications.
| Onboard sample clock range | 48 Hz to 25 MHz |
|---|---|
| Maximum data channel toggle rate | 12.5 MHz |
| Onboard FIFO capacity | 2048 samples |
| Driver version specified by NI | NI-DAQmx 8.5 or later |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
Digital I/O device
NI specifies NI-DAQmx 8.5 or later; check the selected driver's readme for device and operating-system support.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI specifies a 25 MHz maximum sample clock and a 12.5 MHz maximum data channel toggle rate for the PCIe-6536.
Yes. The channel electronics documentation describes configuring high-impedance generation with the DAQmx Digital Output Tristate Channel property after committing the task.
