PCIe-6363

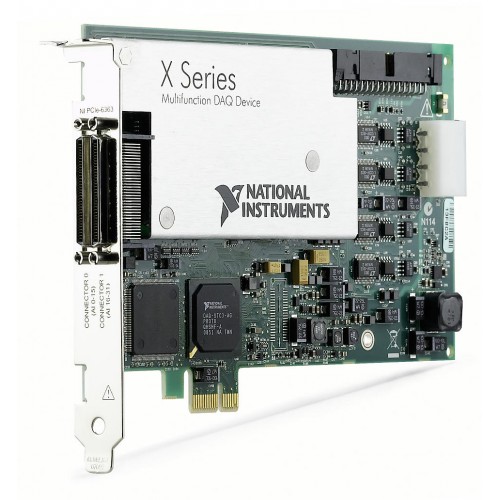

1 image: Click to enlarge
NI (National Instruments) · PCI Express

PCIe-6363

The NI PCIe-6363 is an X Series PCI Express multifunction I/O device with 32 analog inputs, four analog outputs, 48 bidirectional digital channels and four 32-bit counters/timers.

ManufacturerNI (National Instruments)
ModelPCIe-6363
Part Number781051-01
Product TypePCI Express, 32 AI (16-Bit, 2 MS/s), 4 AO (2.86 MS/s), 48 DIO Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIe-6363

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels48
Supported Power InputBus Powered
Max Single-Ended Analog Input Channels32
Number of Counters/Timers4
Max Differential Analog Input Channels16
Analog Input Absolute Accuracy1660 μV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCIe-6363 combines analog input, analog output, digital I/O and counter/timer functions on a PCI Express device. Its analog input section provides 16-bit resolution with up to 32 single-ended or 16 differential channels and a maximum sample rate of 2 MS/s. Analog input sampling is not simultaneous.

Four 16-bit analog outputs provide a maximum update rate of 2.86 MS/s. The device also includes 48 bidirectional digital channels and four 32-bit counters/timers, bringing multiple measurement and signal-generation functions together in the X Series platform.

  • 16-bit analog input acquisition with 32 single-ended or 16 differential channels.
  • Maximum analog input sample rate of 2 MS/s; simultaneous sampling is not supported.
  • Four 16-bit analog output channels with a maximum update rate of 2.86 MS/s.
  • 48 bidirectional digital I/O channels with 5 V logic levels.
  • Four 32-bit counters/timers.
  • Bus-powered PCI Express interface with VHDCI front connections.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels48
Supported Power InputBus Powered
Maximum Number of Single-Ended Analog Input Channels32
Number of Counters/Timers4
Maximum Number of Differential Analog Input Channels16
Analog Input Absolute Accuracy1660 μV
Analog Input FIFO Buffer Size2047 samples
Maximum Sample Rate2 MS/s
Simultaneous SamplingNo
EnclosedYes
Analog Input Resolution16 bits
Bus ConnectorPCI Express
Front Connection TypeVHDCI
Number of Analog Output Channels4
Maximum Analog Update Rate2.86 MS/s
ReconfigurableNo
Number of Analog Input Channels32
Maximum Digital Update Rate100 ns
Operating Temperature Range0 °C to 50 °C
Bus ConnectionPCI Express
Digital I/O Logic Levels5 V
Maximum Clock Rate10 MHz
Number of External Clock Inputs8
Signaling TypeSingle-Ended
Number of Voltage Output Channels4
Analog Output Voltage Range-10 V to 10 V, -5 V to 5 V
Analog Output Resolution16 bits
NI part numbers781051-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI Express

Bus Connector

PCIe-6363

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PCIe-6363?

The listed NI part number is 781051-01.

How many analog input channels does the PCIe-6363 provide?

It provides up to 32 single-ended or 16 differential analog input channels with 16-bit resolution.

Does the PCIe-6363 support simultaneous analog input sampling?

No. Simultaneous analog input sampling is not supported.

What output and digital I/O resources are included?

The device has four 16-bit analog output channels, 48 bidirectional digital channels and four counters/timers.

What is the operating temperature range?

The listed operating temperature range is 0 °C to 50 °C.
