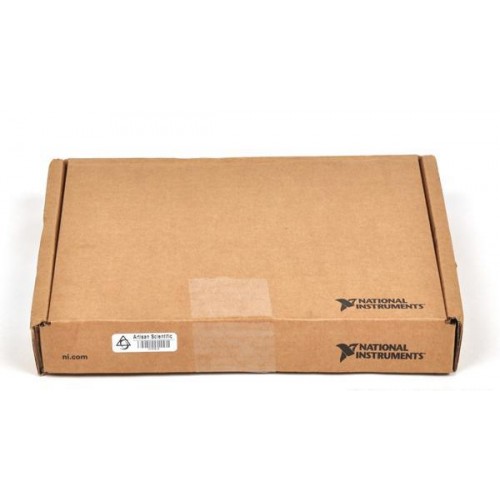

PCIE-6361

The NI PCIE-6361 is an X Series PCI Express multifunction DAQ card combining analog input, analog output, digital I/O and counter/timer functions.

ManufacturerNational Instruments

ModelPCIE-6361

Part Number781050-01

Product TypeMultifunction data acquisition card

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIE-6361

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs16 single-ended or 8 differential; 16-bit

AI sampling2 MS/s single channel; 1 MS/s multichannel aggregate

Analog outputs2 channels, 16-bit

Digital I/O24 bidirectional lines

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This PC-based acquisition device uses NI-STC3 timing technology with independent analog and digital timing engines and retriggerable measurement tasks.

Selectable analog input ranges from ±0.1 V to ±10 V.
Four 32-bit counters/timers support PWM, encoder, frequency and event counting.
NI-DAQmx provides device configuration and measurement support.

Verified specifications

Technical data

Verified product specifications.

Analog input configuration	16 single-ended or 8 differential
Analog input resolution	16 bit
Single-channel maximum sampling rate	2 MS/s
Multichannel maximum aggregate sampling rate	1 MS/s
Analog input ranges	±0.1, ±0.2, ±0.5, ±1, ±2, ±5, ±10 V
Analog output channels	2
Analog output resolution	16 bit
Bidirectional digital I/O lines	24
Counters/timers	4 × 32-bit
Analog input FIFO	2047 samples
Input coupling	DC
