PCIe-6353

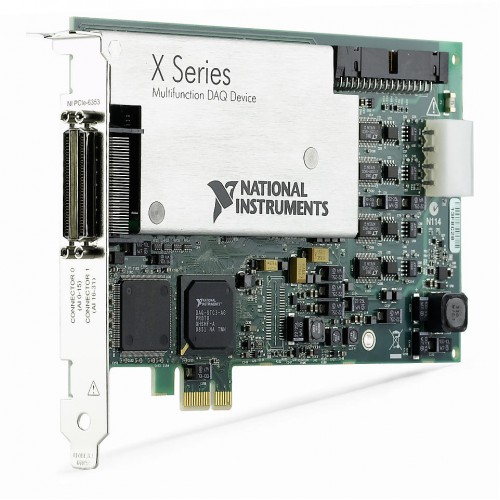

The NI PCIe-6353 is an X Series PCI Express multifunction I/O device with 32 analog inputs, 4 analog outputs, 48 digital I/O channels and 4 counters/timers.

ManufacturerNI (National Instruments)

ModelPCIe-6353

Part Number781049-01

Product TypePCI Express, 32 AI, (16-Bit, 1.25 MS/s), 4 AO (2.86 MS/s), 48 DIO Multifunction I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIe-6353

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog Inputs32 SE / 16 diff

AI Resolution16-bit

Max Sample Rate1.25 MS/s

Analog Outputs4

Digital I/O48

Counters/Timers4

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCIe-6353 combines analog input, analog output, digital I/O and counter/timer functions on one NI X Series PCI Express board. It is bus powered and uses a VHDCI front connection.

Analog inputs provide 16-bit resolution with a maximum sample rate of 1.25 MS/s. Sampling is not simultaneous. Four 16-bit analog outputs support a maximum update rate of 2.86 MS/s; consult the NI specifications for rate limits under the intended channel configuration.

32 single-ended or 16 differential analog inputs with 16-bit resolution.
Four 16-bit analog outputs with ±10 V and ±5 V output ranges.
48 bidirectional digital I/O channels with 5 V logic levels.
Four counters/timers alongside analog and digital I/O functions.
Bus-powered PCI Express interface with VHDCI front connection.
Specified operating temperature range of 0 °C to 50 °C.

Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels	48
Supported Power Input	Bus Powered
Maximum Number of Single-Ended Analog Input Channels	32
Number of Counters/Timers	4
Maximum Number of Differential Analog Input Channels	16
Analog Input Absolute Accuracy	1520 μV
Analog Input FIFO Buffer Size	2047 samples
Maximum Sample Rate	1.25 MS/s
Simultaneous Sampling	No
Enclosed	Yes
Analog Input Resolution	16 bits
Bus Connector	PCI Express
Front Connection Type	VHDCI
Number of Analog Output Channels	4
Maximum Analog Update Rate	2.86 MS/s
Reconfigurable	No
Number of Analog Input Channels	32
Maximum Digital Update Rate	100 ns
Operating Temperature Range	0 °C to 50 °C
Bus Connection	PCI Express
Digital I/O Logic Levels	5 V
Maximum Clock Rate	10 MHz
Number of External Clock Inputs	8
Signaling Type	Single-Ended
Number of Voltage Output Channels	4
Analog Output Voltage Range	-10 V to 10 V, -5 V to 5 V
Analog Output Resolution	16 bits
NI part numbers	781049-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI Express

Bus Connector

PCIe-6353

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog input channels does the PCIe-6353 provide?

It provides up to 32 single-ended or 16 differential analog input channels with 16-bit resolution.

Does the PCIe-6353 sample its analog inputs simultaneously?

No. The supplied verified specifications identify the PCIe-6353 as a non-simultaneous-sampling device.

What analog output capabilities are specified?

The device provides four 16-bit analog output channels, a maximum update rate of 2.86 MS/s, and output ranges of ±10 V and ±5 V. Consult NI specifications for configuration-dependent limits.

What connections does the PCIe-6353 use?

It uses a PCI Express host interface and a VHDCI front connection. The board is bus powered.
