PCIe-6323

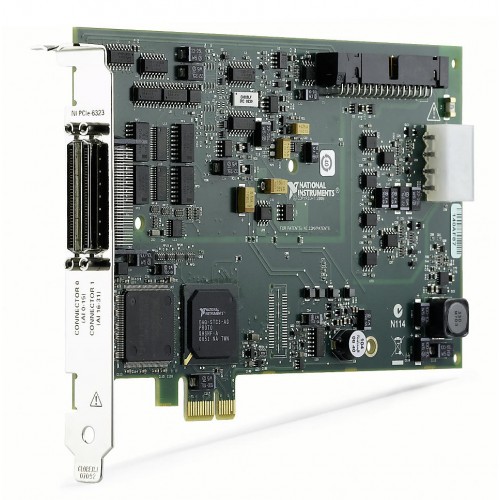

The NI PCIe-6323, part number 781045-01, is an X Series PCI Express multifunction I/O device combining 32 analog inputs, 4 analog outputs, 48 bidirectional digital channels and 4 counters/timers.

ManufacturerNI (National Instruments)

ModelPCIe-6323

Part Number781045-01

Product TypePCI Express, 32 AI (16-Bit, 250 kS/s), 4 AO (900 kS/s), 48 DIO Multifunction I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIe-6323

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels48

Supported Power InputBus Powered

Max Single-Ended Analog Input Channels32

Number of Counters/Timers4

Max Differential Analog Input Channels16

Analog Input Absolute Accuracy2200 μV

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PCIe-6323 combines analog acquisition, voltage generation, digital I/O and counter/timer functions on a PCI Express device. Its analog input section supports up to 32 single-ended or 16 differential channels with 16-bit resolution and a maximum sample rate of 250 kS/s. Analog input sampling is not simultaneous.

Four 16-bit analog outputs provide a ±10 V output range, alongside 48 bidirectional digital channels and four counters/timers. NI identifies the device for data logging, control and test automation; its PCI Express bus and VHDCI signal connection should be considered when planning host installation and field wiring.

Up to 32 single-ended or 16 differential analog inputs with 16-bit resolution.
Selectable analog input ranges of ±0.2 V, ±1 V, ±5 V and ±10 V.
Four 16-bit voltage outputs with a ±10 V range and a maximum update rate of 900 kS/s.
48 bidirectional digital I/O channels with 5 V logic levels.
Four counters/timers support timing functions including PWM, encoder, frequency and event counting.
Bus-powered PCI Express interface with VHDCI signal connection.

Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels	48
Supported Power Input	Bus Powered
Maximum Number of Single-Ended Analog Input Channels	32
Number of Counters/Timers	4
Maximum Number of Differential Analog Input Channels	16
Analog Input Absolute Accuracy	2200 μV
Analog Input FIFO Buffer Size	4095 samples
Maximum Sample Rate	250 kS/s
Simultaneous Sampling	No
Enclosed	Yes
Analog Input Resolution	16 bits
Bus Connector	PCI Express
Front Connection Type	VHDCI
Number of Analog Output Channels	4
Maximum Analog Update Rate	900 kS/s
Reconfigurable	No
Number of Analog Input Channels	32
Maximum Digital Update Rate	1 µs
Operating Temperature Range	0 °C to 50 °C
Bus Connection	PCI Express
Digital I/O Logic Levels	5 V
Maximum Clock Rate	10 MHz
Number of External Clock Inputs	8
Signaling Type	Single-Ended
Analog Input Voltage Range	-0.2 V to 0.2 V -1 V to 1 V -5 V to 5 V -10 V to 10 V
Number of Voltage Output Channels	4
Analog Output Voltage Range	-10 V to 10 V
Analog Output Resolution	16 bits
NI part numbers	781045-01
