Home / Shop / PCIe-6321

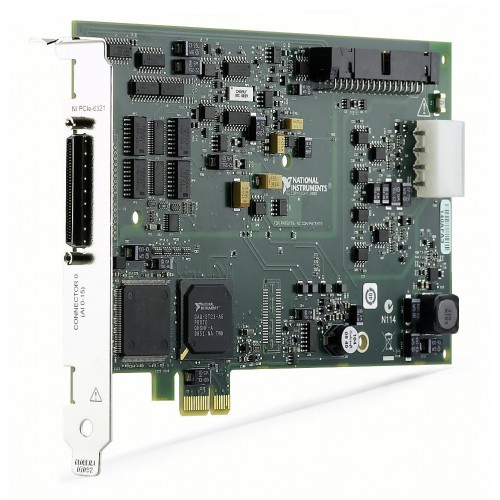

PCIe-6321, front view
PCIe-6321, front view additional viewPCIe-6321, front view additional viewPCIe-6321, front view additional viewPCIe-6321, front view additional viewPCIe-6321, front view additional view
6 images: additional views below.Click to enlarge
NI (National Instruments) · PCI Express

PCIe-6321

The NI PCIe-6321, part number 781044-01, is an X Series PCI Express multifunction I/O device with 16 analog inputs, 2 analog outputs, 24 bidirectional digital channels and 4 counters/timers.

ManufacturerNI (National Instruments)
ModelPCIe-6321
Part Number781044-01
Product TypePCI Express, 16 AI (16-Bit, 250 kS/s), 2 AO (900 kS/s), 24 DIO Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIe-6321

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels24
Supported Power InputBus Powered
Max Single-Ended Analog Input Channels16
Number of Counters/Timers4
Max Differential Analog Input Channels8
Analog Input Absolute Accuracy2200 μV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCIe-6321 combines analog input, analog output, digital I/O and counters/timers on a PCI Express device. Its analog input subsystem provides 16-bit resolution at a maximum sample rate of 250 kS/s, with up to 16 single-ended or 8 differential channels. Simultaneous sampling is not supported.

Two 16-bit voltage outputs provide a -10 V to 10 V output range and a maximum update rate of 900 kS/s. The bus-powered device also provides 24 bidirectional digital channels, four counters/timers and a VHDCI front connection.

  • 16-bit analog input with a maximum sample rate of 250 kS/s and a 4095-sample FIFO buffer.
  • Analog input configurations support up to 16 single-ended channels or 8 differential channels.
  • Selectable analog input ranges of ±0.2 V, ±1 V, ±5 V and ±10 V.
  • Two 16-bit analog output channels with a ±10 V range and a maximum update rate of 900 kS/s.
  • 24 bidirectional digital I/O channels and four 32-bit counters/timers.
  • PCI Express bus connection with bus-powered operation and a VHDCI front connection.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels24
Supported Power InputBus Powered
Maximum Number of Single-Ended Analog Input Channels16
Number of Counters/Timers4
Maximum Number of Differential Analog Input Channels8
Analog Input Absolute Accuracy2200 μV
Analog Input FIFO Buffer Size4095 samples
Maximum Sample Rate250 kS/s
Simultaneous SamplingNo
EnclosedYes
Analog Input Resolution16 bits
Bus ConnectorPCI Express
Front Connection TypeVHDCI
Number of Analog Output Channels2
Maximum Analog Update Rate900 kS/s
ReconfigurableNo
Number of Analog Input Channels16
Maximum Digital Update Rate1 µs
Operating Temperature Range0 °C to 50 °C
Bus ConnectionPCI Express
Digital I/O Logic Levels5 V
Maximum Clock Rate10 MHz
Number of External Clock Inputs8
Signaling TypeSingle-Ended
Analog Input Voltage Range-0.2 V to 0.2 V -1 V to 1 V -5 V to 5 V -10 V to 10 V
Number of Voltage Output Channels2
Analog Output Voltage Range-10 V to 10 V
Analog Output Resolution16 bits
NI part numbers781044-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PCI Express

Bus Connector

PCIe-6321

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PCIe-6321?

The supplied verified catalog record identifies part number 781044-01.

How many analog input channels does the PCIe-6321 provide?

It supports up to 16 single-ended or 8 differential analog input channels, with 16-bit resolution and a maximum sample rate of 250 kS/s.

Does the PCIe-6321 support simultaneous sampling?

No. The PCIe-6321 does not support simultaneous analog input sampling.

What bus and front connection does the device use?

The PCIe-6321 uses the PCI Express bus and a VHDCI front connection.

What is the operating temperature range?

The specified operating temperature range is 0 °C to 50 °C.
