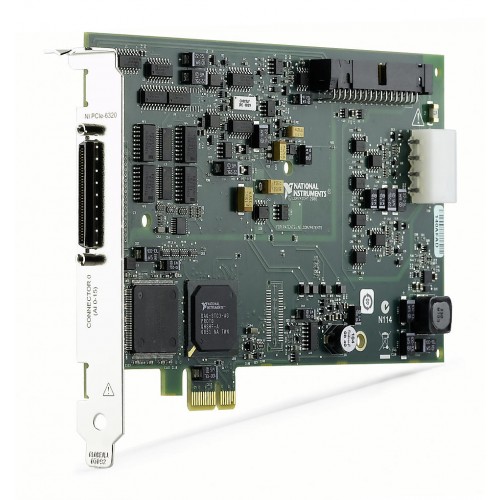

PCIe-6320, front view
PCIe-6320, front view additional viewPCIe-6320, front view additional viewPCIe-6320, front view additional viewPCIe-6320, front view additional viewPCIe-6320, front view additional view
8 images: additional views below.Click to enlarge
NI (National Instruments) · PCI Express

PCIe-6320

The NI PCIe-6320, part number 781043-01, is an X Series PCI Express multifunction I/O device with 16 analog inputs, 24 bidirectional digital channels and four counters/timers. It provides 16-bit analog input at a maximum sample rate of 250 kS/s.

ManufacturerNI (National Instruments)
ModelPCIe-6320
Part Number781043-01
Product TypePCI Express, 16 AI (16-Bit, 250 kS/s), 24 DIO Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIe-6320

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels24
Supported Power InputBus Powered
Max Single-Ended Analog Input Channels16
Number of Counters/Timers4
Max Differential Analog Input Channels8
Analog Input Absolute Accuracy2200 μV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PCIe-6320 combines analog input, digital I/O and counter/timer functions on a PCI Express board. Its analog inputs support up to 16 single-ended or 8 differential channels, with 16-bit resolution and a maximum sample rate of 250 kS/s. Sampling is not simultaneous.

Selectable analog input ranges are ±0.2 V, ±1 V, ±5 V and ±10 V. The board also provides 24 bidirectional digital channels and four counters/timers, but no analog outputs. It is bus powered and uses a VHDCI front connection.

  • 16-bit analog input with a maximum sample rate of 250 kS/s.
  • Supports up to 16 single-ended or 8 differential analog input channels.
  • Four selectable analog input voltage ranges: ±0.2 V, ±1 V, ±5 V and ±10 V.
  • 24 bidirectional digital I/O channels and four counters/timers.
  • Bus-powered PCI Express board with a VHDCI front connection.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels24
Supported Power InputBus Powered
Maximum Number of Single-Ended Analog Input Channels16
Number of Counters/Timers4
Maximum Number of Differential Analog Input Channels8
Analog Input Absolute Accuracy2200 μV
Analog Input FIFO Buffer Size4095 samples
Maximum Sample Rate250 kS/s
Simultaneous SamplingNo
EnclosedNo
Analog Input Resolution16 bits
Bus ConnectorPCI Express
Front Connection TypeVHDCI
ReconfigurableNo
Number of Analog Input Channels16
Maximum Digital Update Rate1 µs
Operating Temperature Range0 °C to 50 °C
Bus ConnectionPCI Express
Digital I/O Logic Levels5 V
Maximum Clock Rate10 MHz
Number of External Clock Inputs8
Signaling TypeSingle-Ended
Analog Input Voltage Range-0.2 V to 0.2 V -1 V to 1 V -5 V to 5 V -10 V to 10 V
