PCIE-6259

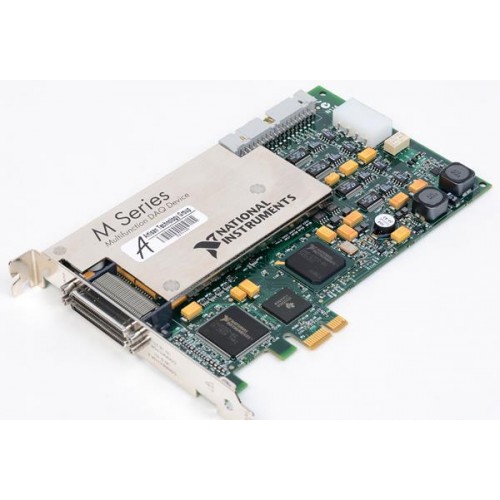

The National Instruments PCIE-6259 is an M Series PCI Express multifunction DAQ board with 32 analog inputs, four analog outputs and 48 digital I/O lines.

ManufacturerNational Instruments

ModelPCIE-6259

Part Number779513-01

Product TypeMultifunction data acquisition board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PCIE-6259

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs32 channels, 16-bit

Maximum AI rate1.25 MS/s; 1 MS/s scanning

Analog outputs4 channels, 16-bit

Digital I/O48 lines

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This board combines acquisition, waveform generation and digital I/O in a PCI Express host system.

Designed for PC-based measurement and control, the board brings acquisition and waveform generation onto a PCI Express interface.

Seven programmable analog input ranges.
Analog and digital triggering.
Six DMA channels.
Seven programmable input ranges from ±100 mV to ±10 V.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	32 channels
Analog input resolution	16 bit
Maximum single-channel AI rate	1.25 MS/s
Maximum scanning AI rate	1 MS/s
Analog output channels	4 channels
Analog output resolution	16 bit
Digital I/O lines	48 lines
Counters/timers	2; 32-bit, 80 MHz
Maximum single-channel input sampling rate	1.25 MS/s
Maximum multichannel aggregate input sampling rate	1 MS/s
Counter/timers	2; 32-bit, 80 MHz
