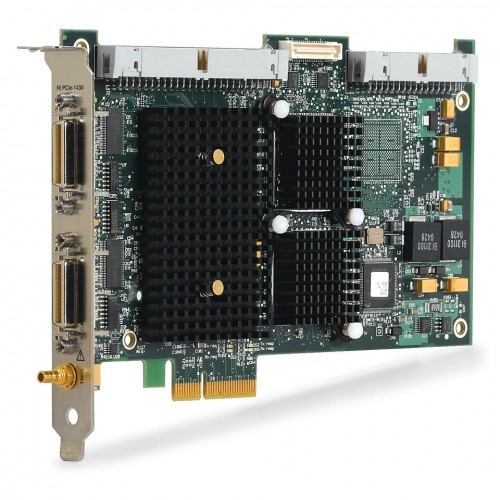

The NI PCIe-1430 is a PCI Express image acquisition board for up to two Base-configuration Camera Link cameras. Its two camera inputs use 26-pin MDR connectors.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PCIe-1430 provides two Base Camera Link inputs on a single host board. Each MDR connector supports a Base-configuration camera; the pair does not provide Medium, Full or Extended-Full camera support.
Camera setup uses NI-IMAQ and Measurement & Automation Explorer (MAX), with a camera file defining acquisition parameters.
Verified product specifications.
| Camera configuration | Base Camera Link only |
|---|---|
| Camera input ports | 2 ports |
| Camera connector type | 26-pin MDR |
| Camera interface standard | Camera Link 1.1 |
| Pixel clock frequency | 20–85 MHz |
| Maximum data width | 24 bits |
| PCI Express compliance | 1.0a |
| Native PCI Express link width | x4 |
| Supported larger slot widths | x8, x16 |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host bus
Dual Base Camera Link image acquisition board
NI-IMAQ; camera configuration through MAX
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes. It supports up to two Base-configuration Camera Link cameras, one through each 26-pin MDR connector.
No. The PCIe-1430 supports Base configuration only, not Medium, Full or Extended-Full.
Use an x4, x8 or x16 PCI Express slot. Verify that a larger slot provides the required x4 data rate.
